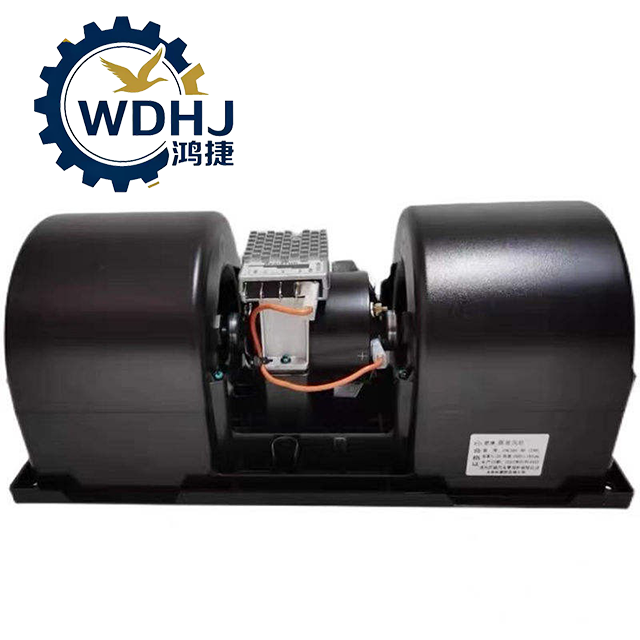

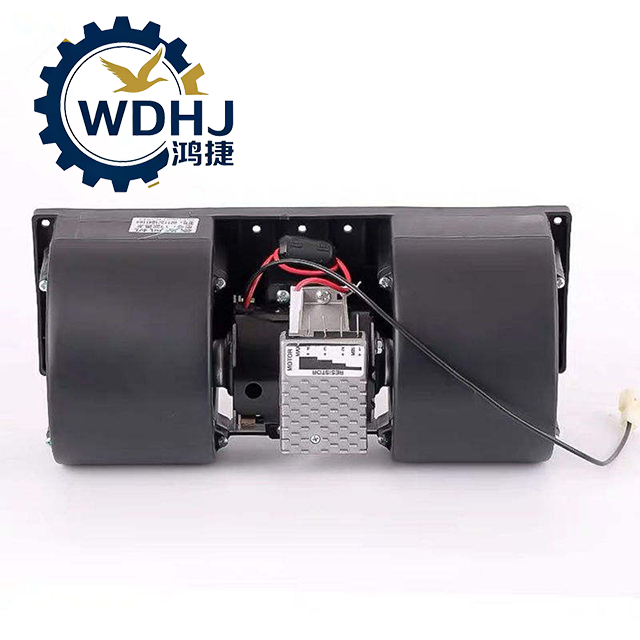

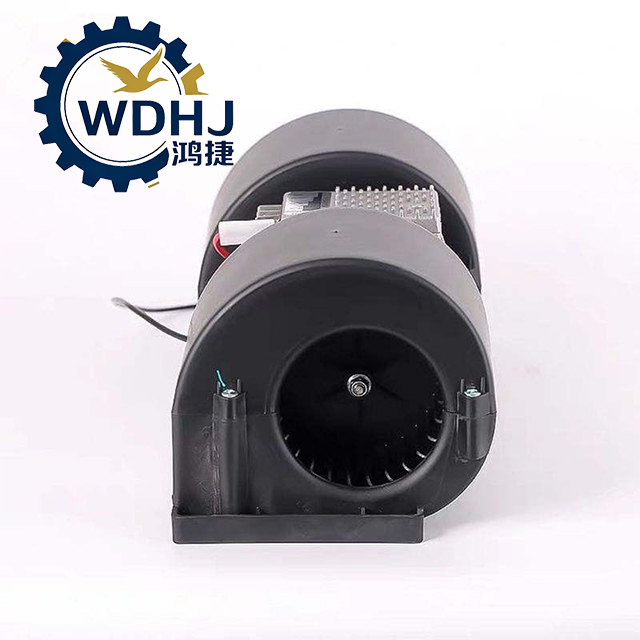

Genuine Original Product 24V 12V TY-08015 Evaporation Fan Blast Blower for Youtong Jinlong Bus Air Conditioning System Parts

Genuine Product 24V 12V TY-08015 Evaporation Fan Blast Blower for Youtong Jinlong Bus Air Conditioning System Parts

The TY-08015 is a mature and widely adopted 24V electric blower fan designed specifically for air conditioning evaporator units in large and medium-sized coaches. Manufactured primarily by OEM suppliers such as Henan Meize (Meize Automotive), this blower plays a critical role in circulating cooled air throughout the passenger cabin. As of 2026, it remains a standard-fit component across major Chinese bus brands including Yutong, Kinglong, Higer, and Ankai, commonly integrated into HVAC systems from leading manufacturers like Songzhi (Songzhe), Bergstrom (Boogesichong), and Xintongda. Available in both carbon-brush and newer brushless DC (BLDC) variants, the TY-08015 delivers reliable airflow performance with enhanced durability and energy efficiency. Its robust design ensures stable operation even under extreme conditions such as high temperature and humidity, making it an essential part of modern coach climate control systems.

Quantity:
Availability:





Inquire Add to Basket

Model:
TY-08015
Brand:
Yutong Bus Parts

Product Description

Attribute	Description
Product Name	Evaporator Blower Fan / Centrifugal Blower Motor
Model Number	TY-08015
Application	Passenger Coach Air Conditioning System (Evaporator Unit)
Primary Manufacturer	Henan Meize (Meize), and other certified OEMs
Voltage	24V DC
Motor Type	Carbon Brush (Standard) / Brushless DC (BLDC) – High-Life Version
Mounting Type	Duct-Mounted, Integrated into AC Evaporator Box
Impeller Design	Dual-Inlet Centrifugal Wheel (Double Width, Double Inlet - DWDI)
Typical Installation Position	Ceiling-mounted or rear-engine compartment AC systems
Key Function	Circulates cooled air from evaporator core into passenger cabin

Parameter	Value / Description
Rated Voltage	24V DC
Power Consumption	180W – 250W
No-Load Speed (High Speed)	3,200 – 3,500 RPM
Airflow Capacity	850 – 1,000 m³/h
Operating Current	6A – 9A (under normal load)
Noise Level	≤ 75 dB(A) at full speed
Insulation Class	Class B (130°C) or higher (Class F optional on upgraded models)
Ambient Temperature Range	-30°C to +80°C
Protection Rating	IP54 (Dust and Splash Resistant; motor housing sealed against moisture)
Service Life	≥ 5,000 hours (carbon brush type) Up to 20,000 hours (BLDC version, 2026+)
Connector Type	Standard multi-pin plug (e.g., AMP 2–4 pin, depending on control method)
