Yutong Bus Parts
| Attribute | Description |
|---|---|

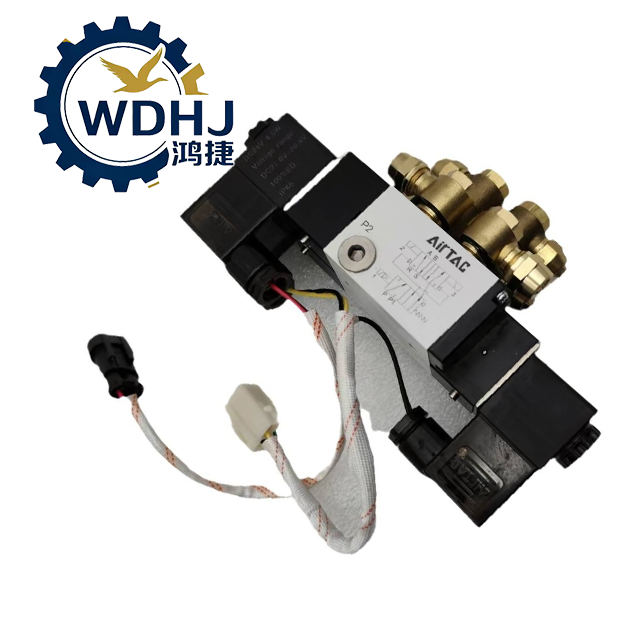

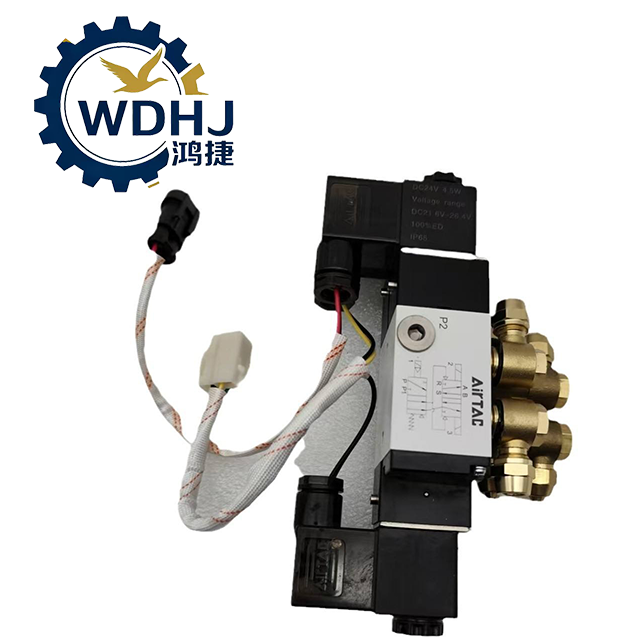

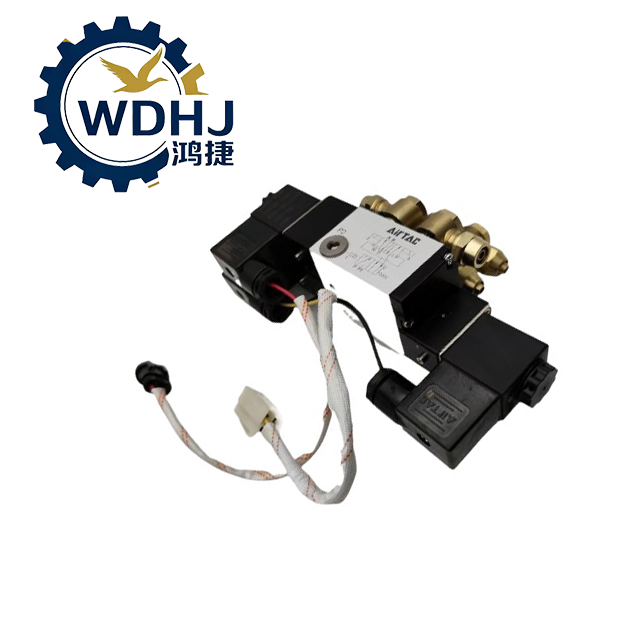

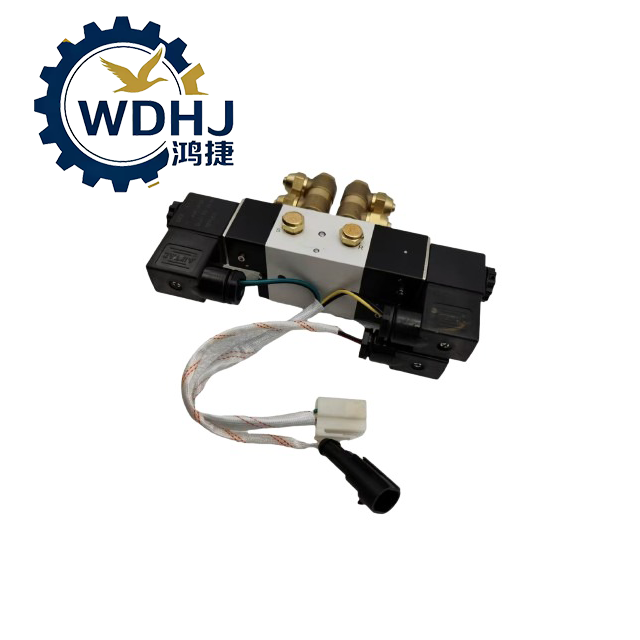

| Product Name | Electromagnetic Solenoid Valve |
| Type | Normally Closed (NC) / Normally Open (NO) – Model Dependent |
| Function | On/Off or Proportional Flow Control |
| Application Areas | Air Brake Systems, Engine Management, Pneumatic Suspension, EGR, HVAC Controls |
| Mounting Style | Inline / Panel Mount / Manifold Base |
| Fluid Medium | Compressed Air, Nitrogen, Non-corrosive Gases, Light Oils (model-specific) |
| Electrical Connection | Spade Terminal, Deutsch DT04/DTP, or Wire Lead |
| Protection Rating | IP65 or IP67 (Dust and Water Resistant) |
| Operating Principle | Direct Acting or Pilot Operated (depending on pressure rating) |
| Compliance Standards | ISO 7637, SAE J1455, CE, RoHS |
| Parameter | Typical Value / Range |
|---|---|
| Operating Voltage | 12V DC or 24V DC (±15% tolerance) |
| Power Consumption | 5W – 25W (varies by coil size and duty cycle) |
| Response Time | ≤ 30 ms (on/off) |
| Working Pressure | 0 – 1.0 MPa (0 – 145 psi); up to 2.0 MPa for high-pressure models |
| Maximum Ambient Temperature | -40°C to +85°C (-40°F to +185°F) |
| Coil Insulation Class | Class H (180°C rated) |
| Seal Material | NBR (Nitrile Butadiene Rubber) or FKM (Viton®), depending on medium |
| Inlet/Outlet Port Size | G1/4", G1/8", M10×1, M12×1.5 (threaded connections) |
| Life Cycle | > 1 million cycles (under normal conditions) |
| Vibration Resistance | Meets ISO 16750-3 standard |
