| Quantity: | |
|---|---|
1006675927
Shacman
| Attribute | Specification |
|---|---|
| Part Number | 1006675927 |

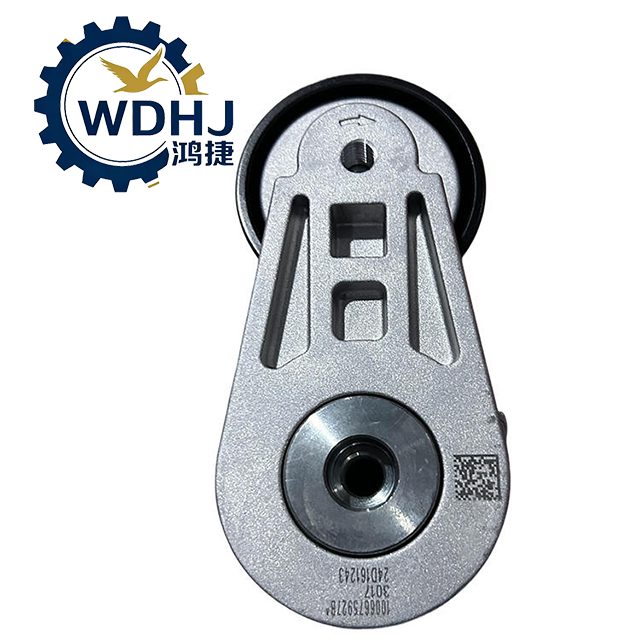

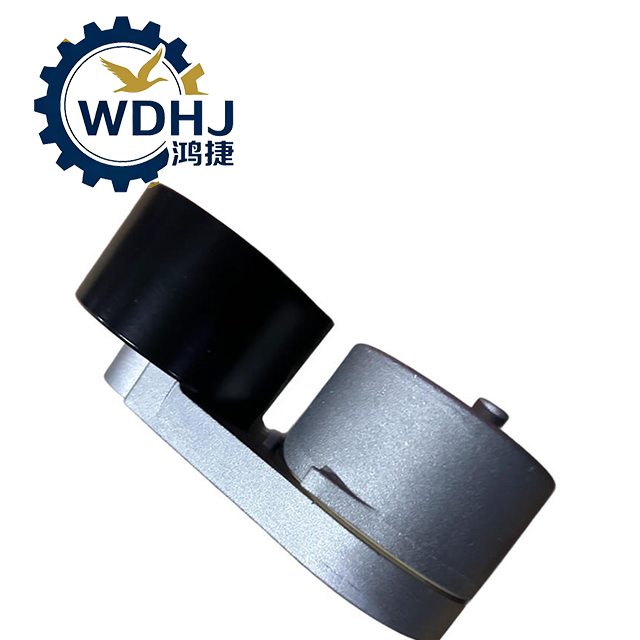

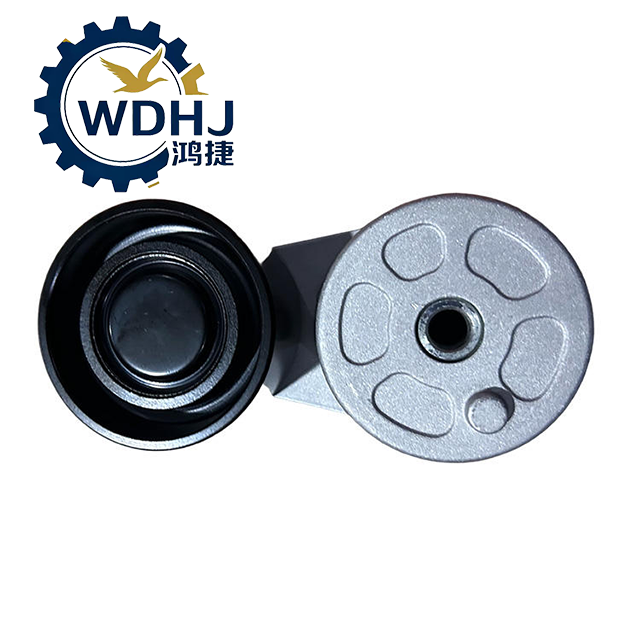

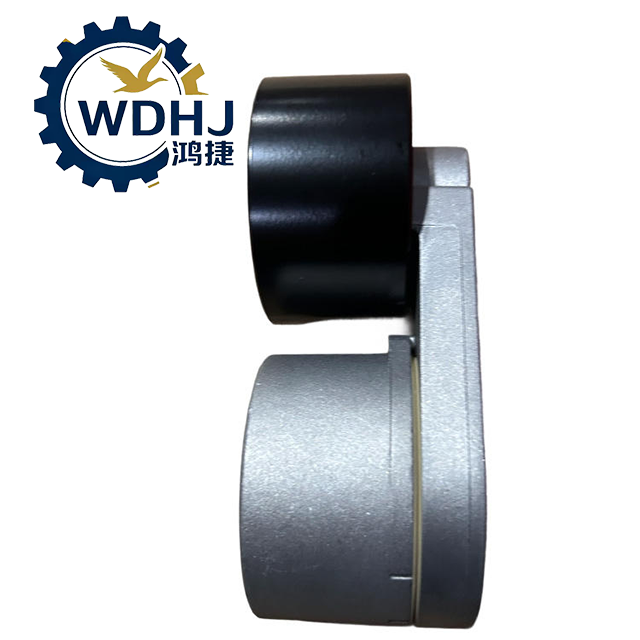

| Product Type | Automatic Belt Tensioner / Adjuster Assembly |
| Brand | Weichai Power (Original Equipment Manufacturer) |
| Condition | New |
| Origin | China |
| Application | Light-Duty Truck Engine Accessory Drive System |
| Material | High-Strength Steel Arm / Wear-Resistant Bushing |
| Bearing Type | Double-Row Deep Groove Ball Bearing |
| Certification | ISO9001, TS16949, OEM Standard |
| Parameter | Specification / Description |
|---|---|
| Weight | Approx. 3.0 kg (Including Packaging) |
| Structure | Plane Spring Torsion Structure for Constant Tension |
| Design Feature | Equipped with Dust Cover for harsh environment protection |
| Function | Maintains belt tension; reduces belt jump during speed changes |
| NVH Performance | Compact design optimized for low mechanical noise and vibration |
| Compatibility | Specifically designed for WP2.5N Engine Series |
| Durability | High load capacity bearing design for extended service life |
| Installation | Direct OEM fitment (No modification required) |
I. Weichai WP10 Engine (Suitable for F3000 and older M3000 standard-load tractor units)
Automatic belt tensioner assembly (Part No. 612600061256): Compatible with the entire WP10.336 and WP10.375 model series;
Alternator idler pulley (pulley only, no bracket; Part No. 612630061100): Used in conjunction with the tensioner to guide the water pump and alternator belts;
Lightweight new-style WP10 China V tensioner (Part No. 1000554740): Suitable for later-model F3000 dump trucks.
II. Weichai WP12 Engine (Suitable for X3000, new M3000, and L3000)
Main automatic tensioner pulley assembly (Part No. 612630061185): A best-selling item covering 430 hp WP12 models;
Reinforced heavy-duty tensioner (Part No. 612630060972): Suitable for sand/gravel dump trucks and short-haul heavy-load operations;
A/C compressor-specific small tensioner pulley (Part No. 612600061279): Features an independent small bracket structure; controls the A/C belt only.
III. Weichai WP13 High-Horsepower Engine (X3000, X5000, X6000; 500/550 hp; China V/VI)
WP13 OEM belt tensioner (Part No. 612630061029): Standard equipment for X3000 long-haul tractor units;
China VI X5000 new-style maintenance-free tensioner (Part No. 1001821626): Features a built-in wear indicator scale and resists seizing at high temperatures;
X6000 flagship model-specific tensioner (Part No. 1001319530): Features a widened damping/cushioning structure to reduce belt vibration and noise. IV. Yuchai Engines (Xuande, Lightweight L3000, Short-haul Dump Trucks)
Yuchai China V belt tensioner pulley (S01000-1002450), compatible with the full range of Shacman Xuande X6 and X9 models;
Yuchai China VI improved version (S01000-1002450A), featuring a dual-layer dust seal for enhanced durability in dusty mining environments.
V. Cummins ISM11 Engines (Export X3000, Mining Dump Trucks)
Cummins alternator belt tensioner (4082570X), designed specifically for XCEC ISM11 engines;
Fan belt idler pulley (3046204X), recommended for replacement as a set alongside the main tensioner.
VI. Heavy-Duty Widened Tensioner for 425-Series Wide-Body Mining Trucks
Reinforced tensioner pulley (E2500-1002450) for Weichai WP12/WP13 mining engines; features increased spring tension to prevent slippage under heavy loads.
Compatibility and Distinction Guide
Automatic tensioner assembly = Bracket + Tensioner pulley + Damping spring (complete kit replacement preferred); Idler pulley = Guide pulley only (no automatic adjustment mechanism). Please distinguish between "tensioner assembly" and "idler pulley" when handling customer inquiries.
