612600061530
FAW
| Attribute | Description |
|---|---|

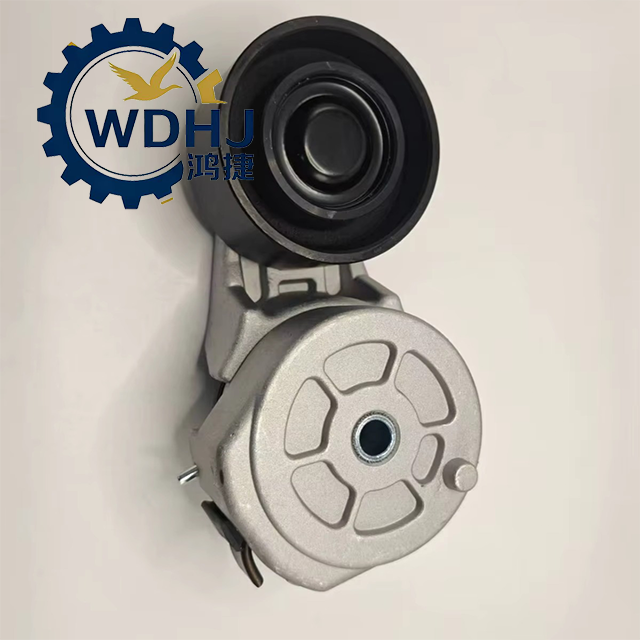

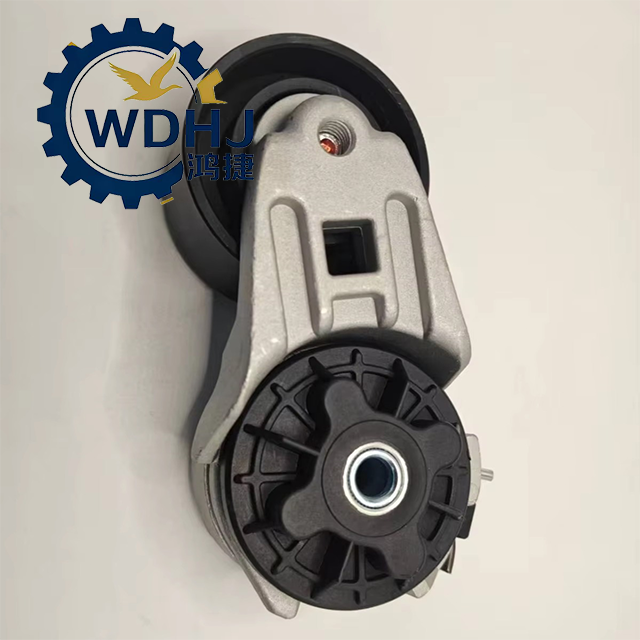

| Product Name | Automatic Belt Tensioner / Tensioner Pulley Assembly |
| Manufacturer | Weichai Power Co., Ltd. (China) |
| Type | Spring-loaded automatic belt tensioner with roller pulley |
| Function | Maintains optimal belt tension; prevents slippage and extends belt life |
| Application | Front engine accessory drive system (fan, alternator, AC, etc.) |
| Pulley Material | Hardened steel shell with anti-corrosion coating |
| Bearing Type | Sealed ball bearing – pre-lubricated for life |
| Tension Mechanism | Internal coil or torsion spring with damping control |
| Quality Standard | Meets Weichai OE specifications; tested for durability, noise, and load consistency |
| Parameter | Value / Detail |
|---|---|
| OEM Part Number | 612600061530 |
| HS Code | 8483.50 (Pulleys and transmission wheels) |
| Tensioner Type | Automatic self-adjusting tensioner |
| Operating Principle | Spring-actuated lever arm maintains constant pressure |
| Compensation Ability | Automatically adjusts for belt stretch and thermal expansion |
| Rotation Direction | Typically clockwise (depends on mounting orientation) |
| Mounting Style | Bolt-on flange mount with pivot point |
| Torque Capacity | Designed to maintain 80–150 Nm effective tension (varies by belt layout) |
| Service Life | Approx. 80,000 – 120,000 km under normal conditions |
| Noise Level | Low operational noise; squealing indicates wear or failure |
| Weight | Approx. 1.3 kg – 1.8 kg |
