WB130000514
Yutong Bus Parts
| Attribute | Description |
|---|---|

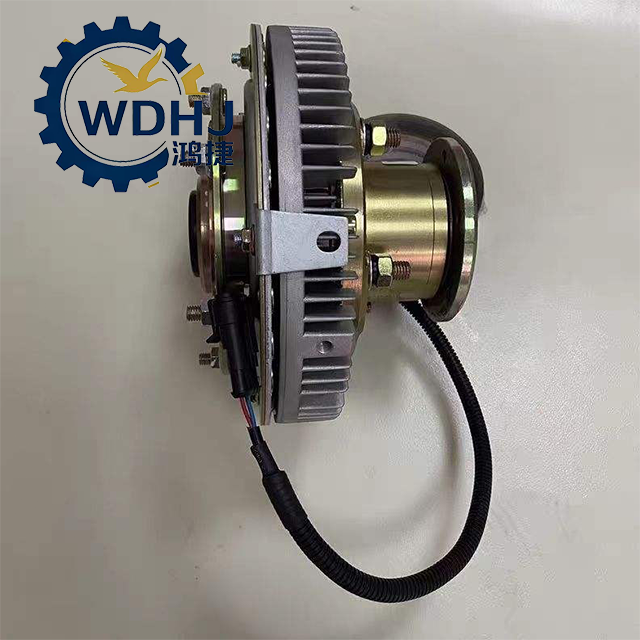

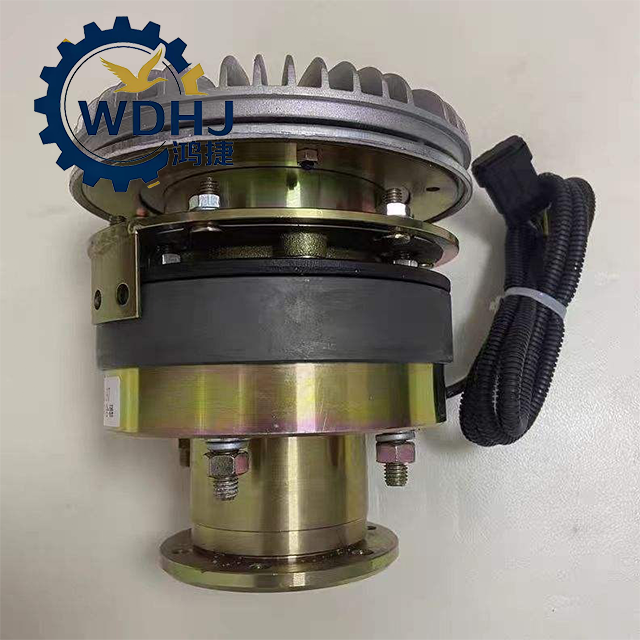

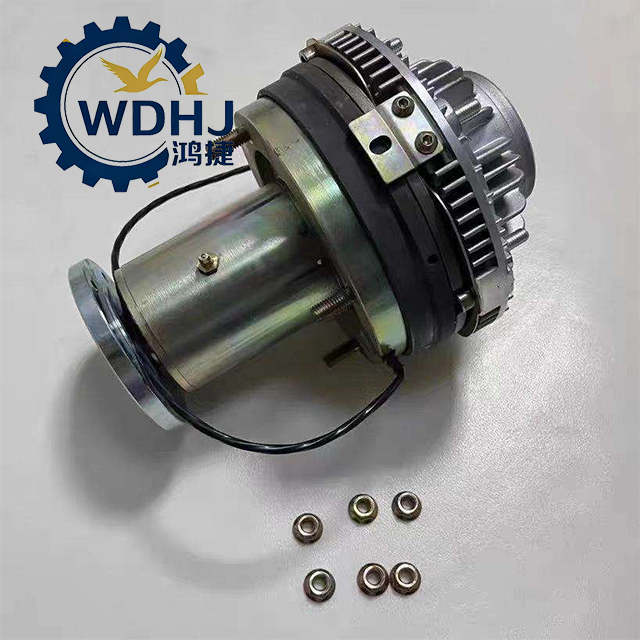

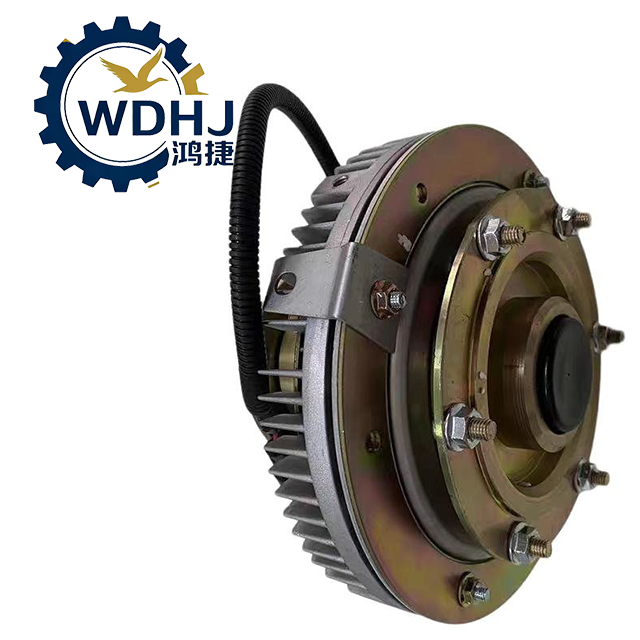

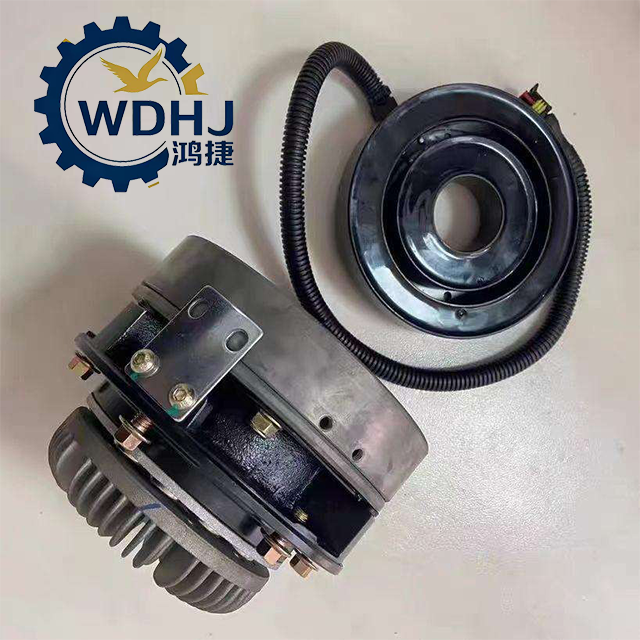

| Product Name | Electromagnetic Fan Clutch |
| Model Number | WB130000514 |
| Voltage | 24V DC |
| Application Type | Heavy-Duty Passenger Coach / Commercial Bus / Specialized Vehicles |
| Primary Fitment Brands | Yutong, Kinglong, and other OEMs using similar mounting standards |
| Control Method | Electromagnetic Engagement (Temperature-Sensor Controlled) |
| Mounting Position | Engine Front Accessory Drive System |
| Cooling Logic | On-Demand Activation Based on Coolant Temperature |
| Key Benefit | Reduced parasitic power loss, improved fuel economy, lower noise, faster warm-up |
| Parameter | Value / Description |
|---|---|
| Operating Voltage | 24V DC (Nominal), ±10% tolerance |
| Engagement Principle | Electromagnetic actuation with armature plate and friction surface |
| Disengagement State | Default (Fan off) when de-energized; engaged only at elevated temperatures |
| Dimensions (L × W × H) | Approx. 285 × 285 × 220 mm |
| Weight | ~4.8 kg (estimated) |
| Connection Interface | Direct bolt-on flange mount; multi-hole pattern (verify PCD) |
| Typical Torque Rating | Up to 50 N·m (transmitted torque when engaged) |
| Thermal Response | Integrated with engine coolant temperature sensor signal (ECU-controlled) |
| Max Operating Speed | ≤ 6,000 rpm (fan speed) |
| Ambient Temperature Range | -40°C to +120°C |
| Durability Life | > 10,000 hours under normal operating conditions |
