| Quantity: | |
|---|---|
5103122-B45
FAW
| Attribute | Description |
|---|---|

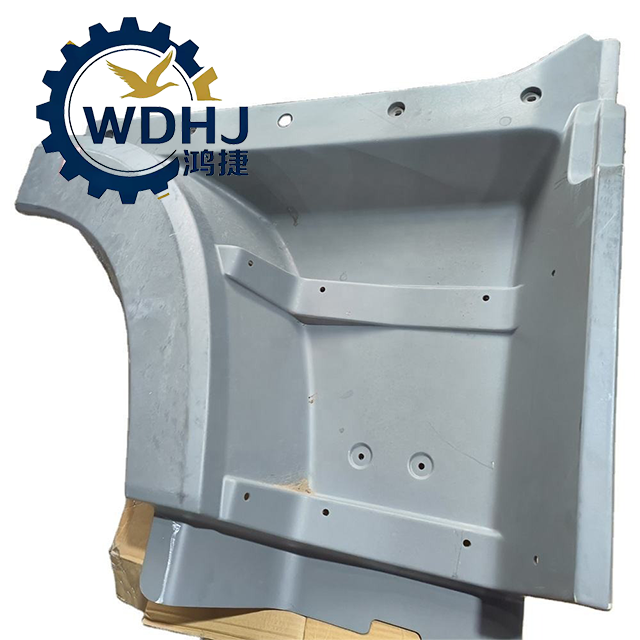

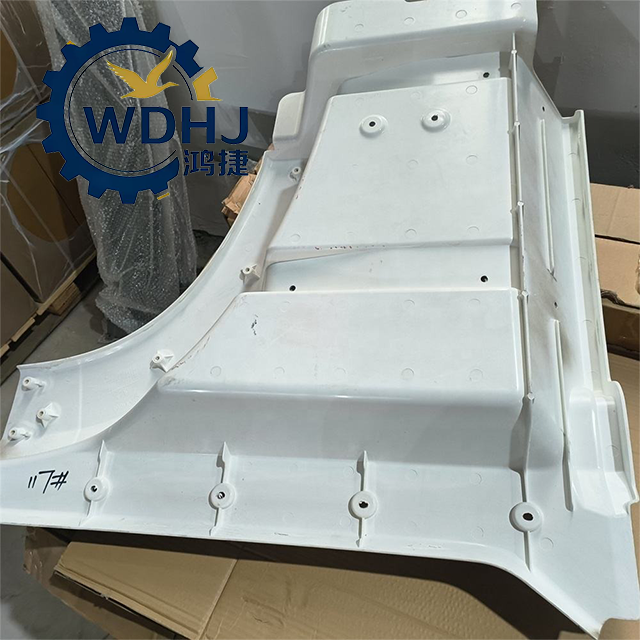

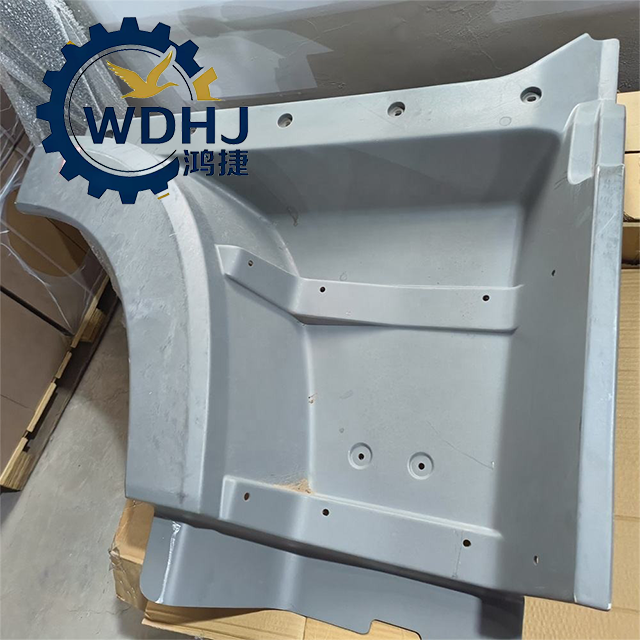

| Product Name | Right Front Fender Assembly / Passenger-Side Mudguard with Step Bracket |
| OEM Part Number | 5103122-B45 |
| Alternate Names | Cab Side Fender, Entry Step Support Panel, Passenger-Side Front Wheel Arch |
| Brand | FAW Jiefang (First Automotive Works) |
| Component Type | Truck Body Exterior Part / Functional Cover Panel |
| Function | Tire splash protection + integration with entry step mounting system |
| Installation Side | Right-hand side (passenger side) of the cab |
| Design Standard | OE Specification – Matches specific J6 platform variants (e.g., light-duty, cost-optimized builds) |
| Parameter | Details |
|---|---|
| Primary Material | High-performance engineering plastic: PP+EPDM or SMC (Sheet Molding Compound) – flexible, impact-resistant, non-corrosive |
| Material Properties | |
| - Impact Resistance | Excellent rebound capability after minor impacts; resists permanent deformation |
| - Thermal Stability | Stable operation from -30°C to +90°C |
| - UV Resistance | Enhanced anti-UV additives prevent yellowing, brittleness, and surface cracking under prolonged sun exposure |
| Surface Finish | Factory-applied black or dark gray primer/base color; requires topcoat painting to match body color (e.g., FAW Red, White, Coffee Gold) |
| Structural Feature | Internal ribbing and pre-molded mounting holes for step brackets (e.g., 5103212-B45) |
| Weight (Approx.) | 3.0 – 3.8 kg (lighter than metal alternatives) |
| Mounting Method | Bolt-on using upper flange connections to cab side and lower support brackets (e.g., 5103212-B45) |
| Location | Mounted between front wheel well and lower door area on passenger side of cab |
