| Quantity: | |
|---|---|
199100760064
Shacman Sinotruk HOWO FAW Foton Auman Dongfeng
| Attribute | Description |
|---|---|

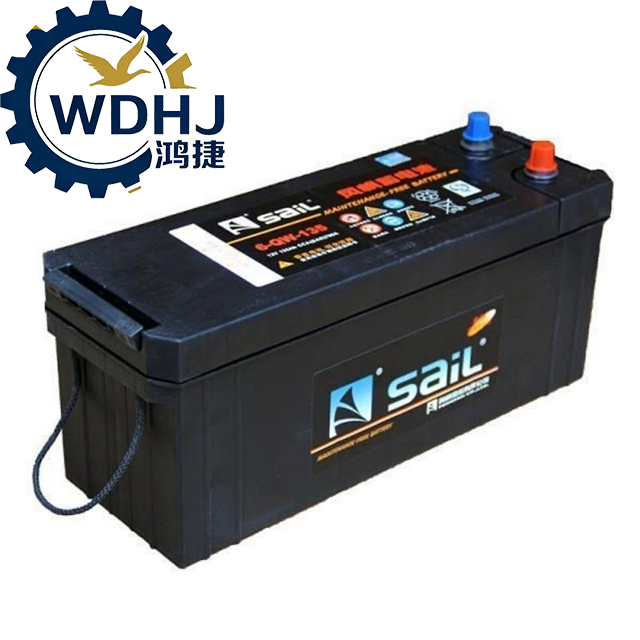

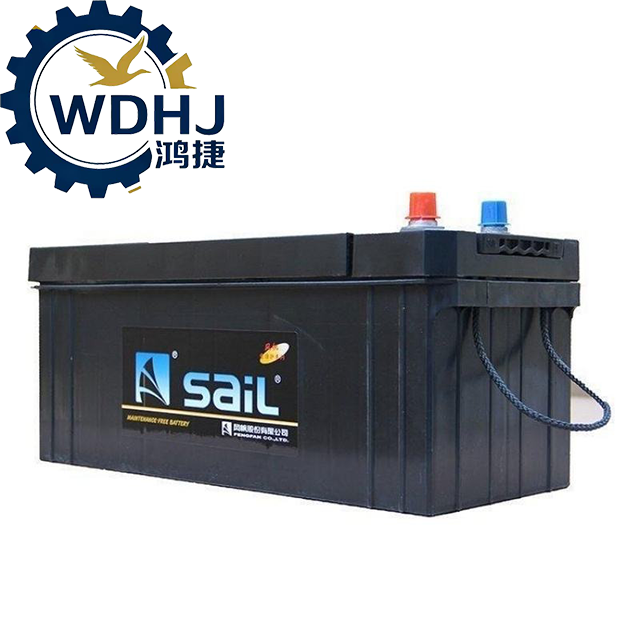

| Part Name | Heavy-Duty Truck Battery / Commercial Vehicle Starting Battery |
| Type | Maintenance-Free Lead-Acid Battery (also available in EFB or AGM variants) |
| Voltage | 24V (system standard — usually two 12V batteries connected in series) Single unit: 12V |
| Capacity (Ah) | Common ratings: 120Ah, 165Ah, 180Ah, 200Ah, 220Ah |
| Cold Cranking Amps (CCA) | Typically 750A–1000A per 12V battery at -18°C |
| Chemistry | Flooded Lead-Acid (standard), Enhanced Flooded Battery (EFB), or AGM (for premium models) |
| Terminals | Standard top-post (SAE type) or side terminals depending on model |
| Dimensions (Approx.) | Varies by capacity: • Group Size 31: ~687 × 227 × 227 mm • Large 220Ah: ~700 × 275 × 280 mm |
| Weight | 35 – 70 kg (depending on size and chemistry) |
| Housing Material | High-impact ABS plastic casing with flame-retardant properties |
| Sealing Level | Fully sealed (no water topping required); gas recombination design |
| Polarity | Right-hand positive (R+) or left-hand positive (L+), depending on installation side |
| Operating Temperature Range | -30°C to +60°C (optimal performance between 0°C and 40°C) |
| Design Life | 3 – 6 years (under proper charging and maintenance) |
| Condition | Brand new (OEM fresh stock or premium aftermarket) |
Name1
Name2
Verify Compatibility Before Purchase
Voltage (12V or 24V system)
Battery capacity (Ah)
Physical dimensions
Terminal orientation (positive on left/right)
Match your truck's:
Use Genuine or High-Quality Batteries Only
Low-cost imitations often have thinner plates and shorter lifespans.
Choose OEM-recommended brands like Camel, Bosch, or factory-original types.
Professional Installation Recommended
Involves handling high-current connections.
Improper installation can cause short circuits, fire, or alternator damage.
Always Disconnect Ground First
When removing: disconnect negative (-) terminal first
When installing: connect positive (+) terminal first
Tighten Terminals Properly
Use correct torque (~8–10 Nm) — too loose causes arcing; too tight cracks posts.
Secure the Battery Firmly
Use hold-down clamp or bracket — vibration can damage internals if loose.
Check Charging System After Replacement
Test alternator output voltage (should be 26.8–28.5V for 24V system).
Faulty regulators can overcharge or undercharge new battery.
Avoid Deep Discharge
Do not let voltage drop below 21V (for 24V system) — reduces lifespan.
Keep Clean and Dry
Wipe terminals regularly to prevent corrosion.
Apply anti-corrosion grease after cleaning.
Store Correctly If Unused
Keep fully charged and stored in dry indoor area.
Recharge every 2 months if idle.
Dispose of Old Batteries Properly
Lead-acid batteries contain hazardous materials — recycle through authorized centers.
