612600090919
Shacman Sinotruk HOWO FAW Dongfeng Foton Auman
| Attribute | Description |
|---|---|

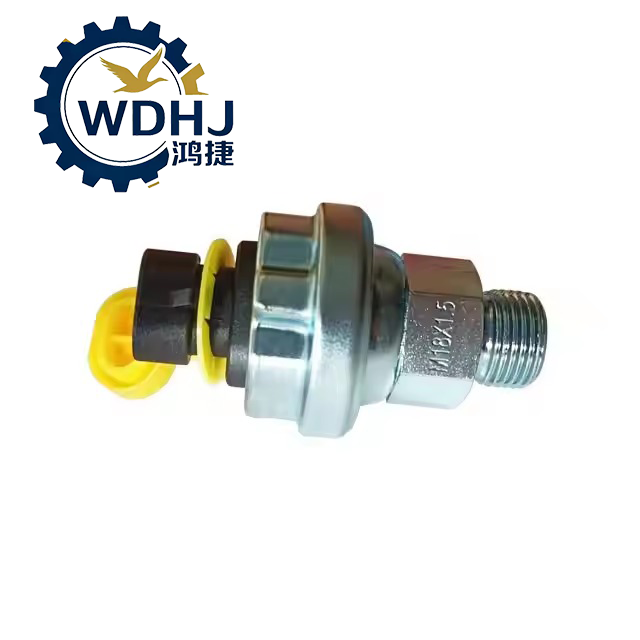

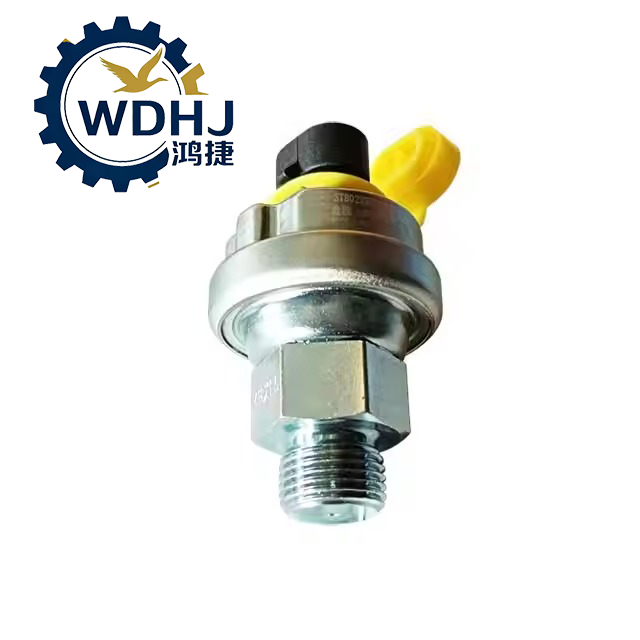

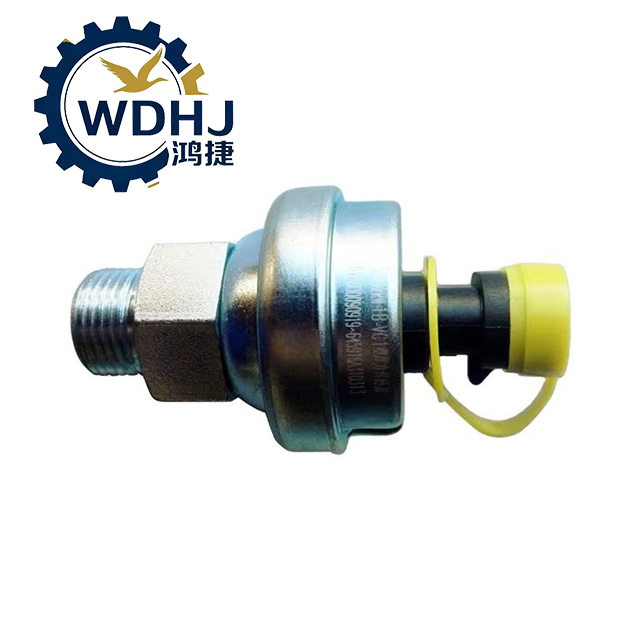

| Product Name | Electronic Oil Pressure Sensor |
| Part Number | 612600090919 |
| Common Names | Engine Oil Pressure Sender, Oil Pressure Transducer |
| Function | Monitors engine oil pressure and sends signal to gauge/ECU |
| Sensing Technology | Piezoelectric (pressure-sensitive semiconductor) |
| Output Signal | Analog voltage signal (e.g., 0.5–4.5V) proportional to pressure |
| Measuring Range | 0 – 4.0 MPa (0 – 40 bar); some variants: 0 – 10 bar |
| Operating Voltage | 5V or 12V DC (supplied by ECU or instrument system) |
| Thread Size | M14×1.5 (metric) or 1/8"-27 NPT (varies by application) |

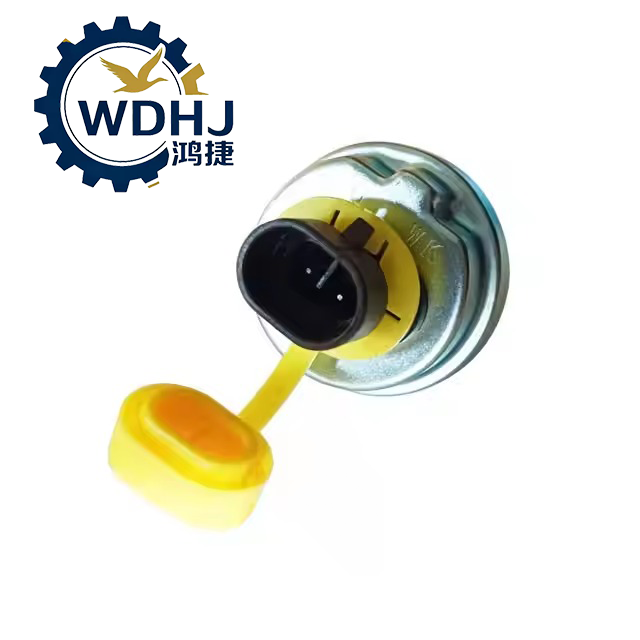

| Connection Type | 2-pin or 3-pin waterproof connector |
| Protection Rating | IP67 (dustproof and protected against water immersion) |
| Operating Temperature | -40°C to +150°C (sensor withstands oil temperature up to 105–150°C) |
| Material | Zinc alloy housing, stainless steel diaphragm, high-temp plastic plug |
| Standard Compliance | GB/T, QC/T 827, ISO 16750 (automotive environmental standards) |
| Parameter | Specification |
|---|---|
| Model Number | 612600090919 |
| Pressure Range | 0 – 4.0 MPa (standard), or 0 – 10 bar (application-specific) |
| Output Signal Type | Linear voltage output (e.g., 0.5V at 0 MPa, 4.5V at 4.0 MPa) |
| Response Time | < 10 ms |
| Accuracy | ±0.05 MPa |
| Repeatability | ±0.03 MPa |
| Electrical Interface | 2-wire or 3-wire configuration |
| Connector Seal | Rubber gasket, locking clip |
| Vibration Resistance | Complies with ISO 16750-3 (mechanical shock & vibration) |
| Weight (approx.) | ~0.12 kg |
| Approvals | OEM-approved for Weichai WP10/WP12 engines |
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ9100580141 | Air Pressure Sensor | F2000, F3000, M3000, X3000 | Electronic air pressure sensor, steel housing, 3-pin connector |
| DZ97189711201 | Air Pressure Sensor | F2000, F3000, L3000, M3000, New M3000, H3000, X3000, X5000, X6000 | Electronic air pressure sensor, 3-plug, M12×1.5 thread, 24V |
| DZ95189711310 | Air Pressure Switch | F3000, X3000, M3000 | Pressure actuated switch, 0–150 PSI (0–10.3 Bar), activation 5.9–7.2 Bar, 1/8″ NPT |
| DZ96189361076 | Integrated Air Pressure Sensor (APU) | X5000, X6000, M3000 | Dual-channel integrated air pressure sensor, APU type |
| DZ9X259711202 | Air Pressure Sensor (Knorr) | X6000, X5000, X5000S | Knorr-Bremse OEM, K262648, ABS 8 system |
| DZ97189716822 | Dual Air Pressure Sensor | M3000S, X5000, J6P | Dual-needle air pressure sensor, twin-circuit |
| DZ97189716821 | ESC Electronic Air Pressure Sensor | New M3000S, X5000 | ESC electronic stability control pressure sensor |
| DZ95189583035 | Air Pressure Sensor | X5000 | Air pressure sensor, OEM factory part |
| 81.27421.0151 | Air Pressure Sensor | F2000, F3000 (Old Model) | Classic air pressure sensor, MAN technology |
| DZ96189361089 | Air Dryer with Pressure Sensor | X5000 | Integrated air dryer unit with pressure sensor, oil filter type |
| DZ97189716524 | Tire Pressure Monitoring Slave Receiver | X6000 | TPMS slave receiver unit, tire pressure monitoring system |
| WG9727710002 | Pressure Sensor | Delong F3000, Sinotruk Howo | Cross-reference pressure sensor, heavy-duty truck |
Oil Pressure Sensors (机油压力传感器)
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ9100580142 | Oil Pressure Sensor | F3000, M3000, X3000, X5000, X6000, L5000 | WEICHAI engine oil pressure sensor, electronic plug type |
| DZ9100580053 | Oil Pressure Sensor | F2000, F3000 | Oil pressure sensor, mechanical/electronic hybrid |
| 612600090351 | Oil Pressure Sensor | F3000, X3000 (WP10/WP12) | WEICHAI oil pressure sensor, M14×1.5 thread |
| 612600090460 | Oil Pressure & Temperature Sensor | X3000, New M3000, X5000 | Combined oil pressure & temperature sensor |
| 612600090667 | Oil Pressure Sensor | F3000, M3000, X3000 | WEICHAI oil pressure sensor, OEM replacement |
| 612600090915 | Oil Pressure & Temperature Sensor | X3000, New M3000, X5000 | Oil pressure & temperature integrated sensor |
| 612600090919 | Oil Pressure Sensor (Electronic Plug) | X3000 (WP12) | Electronic plug-type oil pressure sensor, WP12 engine |
| 612600090920 | Oil Pressure Sensor | F3000, X3000, X5000 | WEICHAI oil pressure sensor, 0–10 Bar range |
| 1001413692 | Oil Pressure Sensor | X3000 (P12/P13) | Oil pressure sensor for WP12/WP13 engines |
| 1001063526 | Oil Pressure Sensor (New Style) | Full series (Weichai) | New-style short-head oil pressure sensor |
| VG1092090311 | Oil Pressure Sensor | F3000, Howo cross-reference | Oil pressure sensor, Sinotruk/Shacman compatible |
| 612600080875 | Oil Pressure Sensor | Weichai WP engine | Oil pressure sensor, 0–1 MPa |
Intake / Boost Pressure Sensors (进气 / 增压压力传感器)
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| 612630120004 | Manifold Absolute Pressure (MAP) Sensor | X3000, X5000, X6000, F3000 | Intake manifold absolute pressure sensor, Bosch technology |
| 612640120077 | Intake Air Pressure Sensor | F3000, X3000 | Intake air pressure sensor, WEICHAI engine |
| 612600190223 | Boost Pressure Sensor | F3000 (Natural Gas Engine) | Turbo boost pressure sensor, gas engine type |
| 0261230133 | Natural Gas Intake Pressure Sensor (Bosch) | New M3000, X3000 (NG) | Bosch natural gas intake pressure sensor |
| 610800111007 | Pre-Turbo Pressure Sensor | WP13 Natural Gas Engine | Pre-turbine pressure sensor, 610800111007 |
| Z20310004A | Intake Pressure Sensor | Weichai Rui Power (Light) | Weichai Rui-power series intake pressure sensor |
Fuel / Common Rail Pressure Sensors (燃油 / 共轨压力传感器)
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| 612600081585 | Common Rail Pressure Sensor (Bosch) | WP10, WP12 (F3000, X3000) | Bosch common rail pressure sensor, 0–1800 bar |
| 0281006364 | Rail Pressure Sensor | Weichai WP engine | Electronic common rail pressure sensor |
| 49000-6160 | Rail Pressure Sensor (Denso) | Weichai WP engine | Denso common rail pressure sensor |
| 499000-6330 | Rail Pressure Sensor (Denso) | Weichai WP engine | Denso rail pressure sensor, 200 MPa |
| 4995445-6160 | Rail Pressure Sensor | Cummins/Weichai | Cross-reference rail pressure sensor |
| 200V11103-0002 | Metering Unit (Fuel Pressure) | MC11/MC13 engine | Fuel metering unit / pressure regulator |
Urea / Emission System Pressure Sensors (尿素 / 排放系统压力传感器)
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| DZ95259740567 | Urea Tank Level & Temperature Sensor | M3000, New M3000, H3000 | Urea tank sensor with level & temperature sensing |
| DZ95189712288 | Natural Gas Level Transmitter | Natural Gas trucks | Single-channel CNG/LNG level transmitter |
| 612640130013 | NOx Sensor | Full series (Euro V/VI) | Nitrogen oxide sensor, SCR system |
| 612640130034 | Exhaust Gas Temperature Sensor | Full series | EGT sensor, before/after DPF |
| 612640130694 | Urea Pump Pressure Sensor | Full series (SCR) | Urea pump pressure sensor, SCR system |
| DZ93189554106 | Fuel Level Sensor | F3000, X5000, X6000 | Fuel tank level sensor, electronic type |
| DZ93189551021 | Fuel Level Sensor (L3000) | L3000, X6000 | L3000 fuel level sensor, cross-compatible |
Other Pressure Sensors & Switches (其他压力传感器 / 开关)
| Part Number | Part Name | Applicable Models | Specifications |
|---|---|---|---|
| HD9012970039 | Differential Lock Pressure Switch Sensor | X3000, M3000S | Hande axle differential lock pressure sensor |
| DZ97189584719 | Fuel Economy Switch | X5000 | Fuel-saving mode pressure switch |
| DZ93189711302 | Heating Solenoid Valve | Full series | Heating system pressure control valve |
| DZ96189584307 | Air Horn Solenoid Valve | New M3000 | Air horn pressure switch / solenoid |
| DZ97189715400 | ECAS Controller | X3000, M3000S, X5000 (2012+) | Electronic Controlled Air Suspension controller with pressure sensors |
| DZ91189565012 | Axial Pressure Gauge | Full series | Mechanical air pressure gauge, dashboard mount |
| DZ95319560554 | NPT1/4 Tee Connector | Full series | Pressure sensor tee fitting, NPT1/4 |
| DZ96259561471 | Rubber Grommet | Full series | Pressure sensor mounting rubber pad |
