CM-0150000
Yutong Bus Parts
| Attribute | Description |
|---|---|

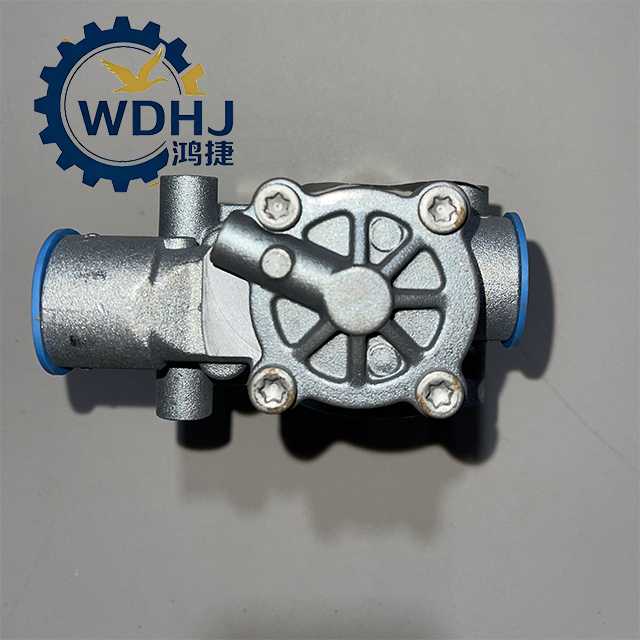

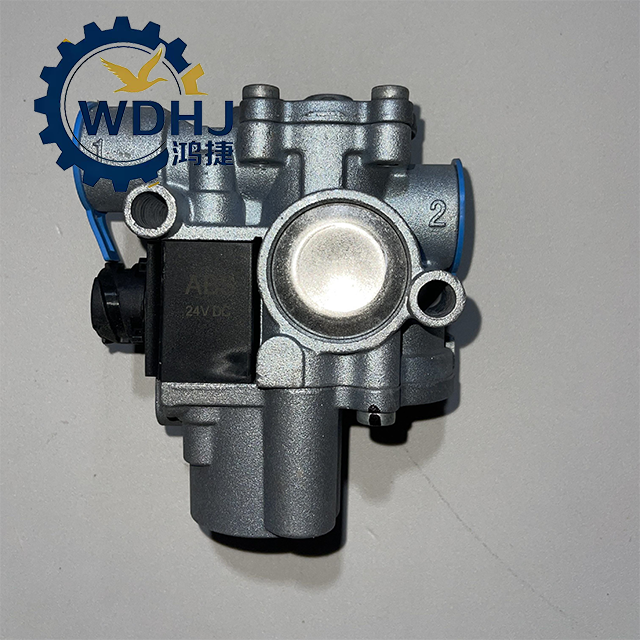

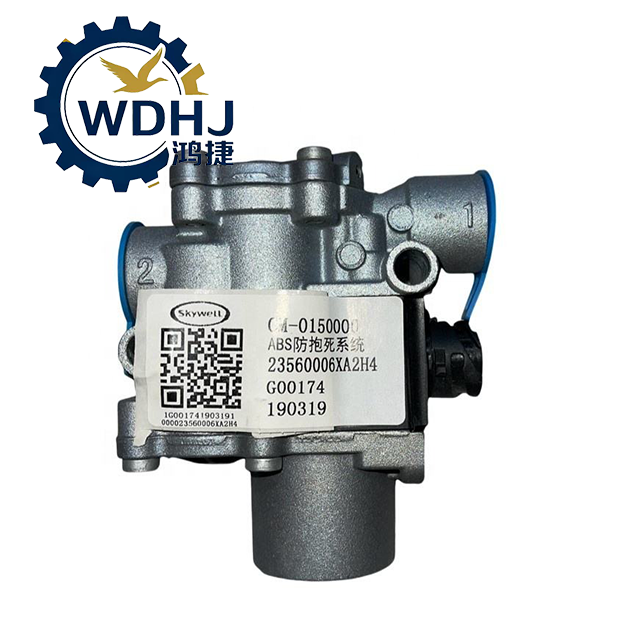

| Product Name | ABS Electromagnetic Pressure Modulator Valve |
| Model Number | CM-0150000 |
| Manufacturer | SORL (Ruili Group) – Leading Chinese Brake System Supplier |
| Function | Controls brake chamber pressure during ABS events (Pressurize/Hold/Depressurize) |
| Application Type | Pneumatic Brake Systems in Commercial Buses and Trucks |
| Primary Fitment Brands | Yutong, Kinglong, Higer, Zhongtong, FAW, Dongfeng (DFAC) |
| Voltage Rating | 24V DC |
| Mounting Position | Integrated into ABS modulator block on brake air line |
| Compliance Standards | ISO 15170, ECE R13, GB 13594 (China ABS Regulation) |
| Parameter | Value / Description |
|---|---|
| Operating Voltage | 24V DC (Nominal), compatible with standard commercial vehicle electrical systems |
| Maximum Working Pressure | 10.0 – 13.0 bar (145 – 188 psi) |

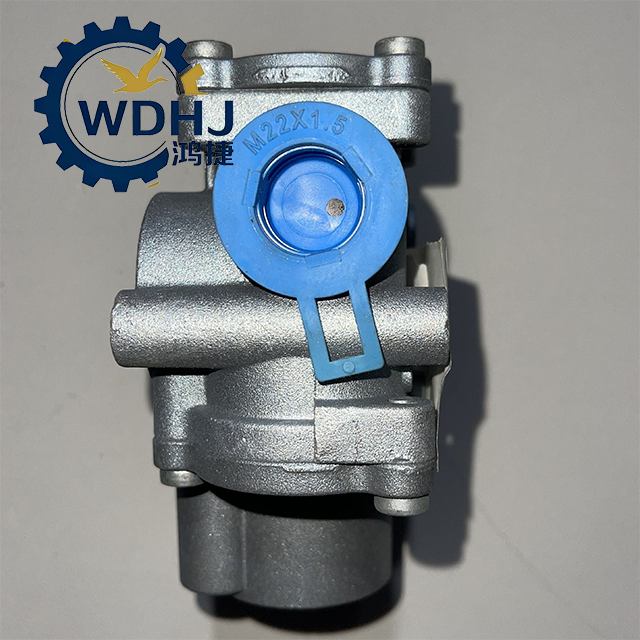

| Port 1 (Inlet) | M22 × 1.5 thread (for compressed air supply) |
| Port 2 (Outlet) | M22 × 1.5 thread (to brake chamber) |
| Exhaust Port | Open to atmosphere via silencer (must be oriented downward) |
| Electrical Connector | 3-Pin Bayonet (ISO 15170 compliant) |
| Coil Resistance (per solenoid) | 15Ω – 18Ω (typical at 20°C) |
| Response Time | Millisecond-level (supports rapid cycling: pressurize → hold → exhaust) |
| Operating Temperature Range | -40°C to +80°C |
| Protection Class | IP65 (dust-tight and protected against water jets) |
| Duty Cycle | Continuous operation under ECU command |
| Material | Anodized aluminum body, stainless steel valve core, NBR seals |
