DZ96189369474
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ96189369474 |

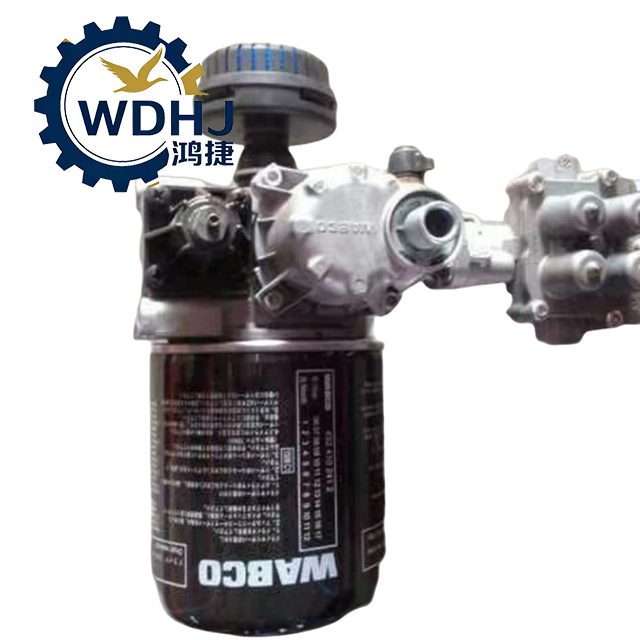

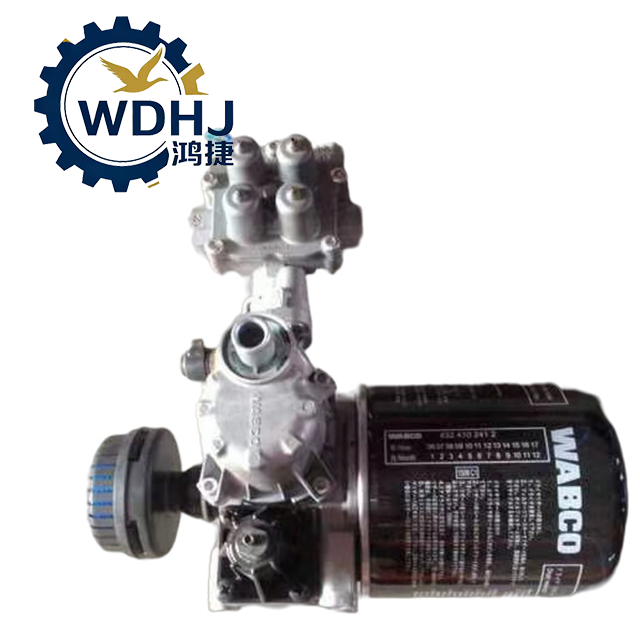

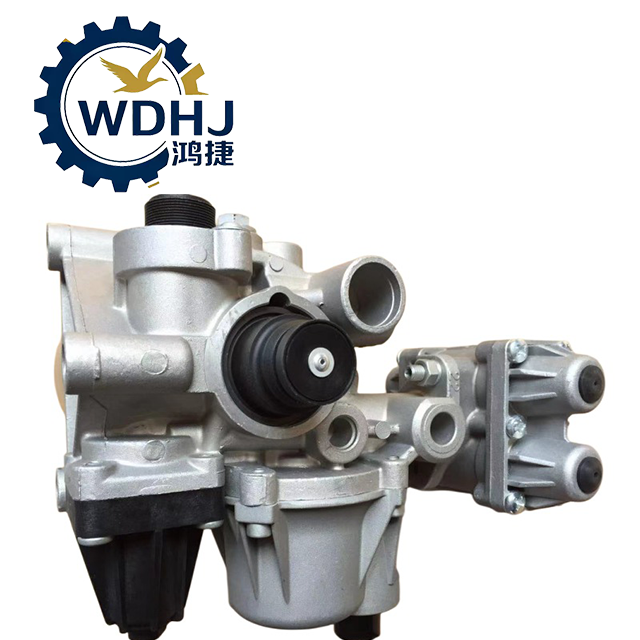

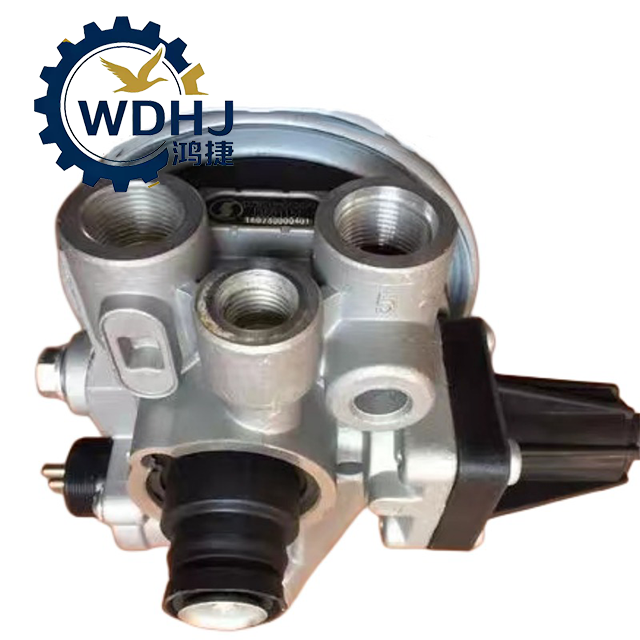

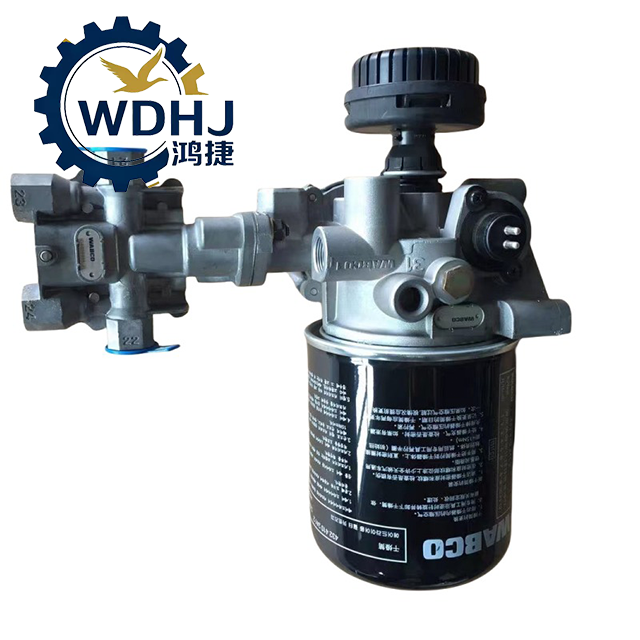

| Product Name | Air Dryer Assembly / Brake Air Treatment Unit (APU) |
| OEM Status | Genuine SHACMAN Original Equipment Part |
| Application | Pneumatic Brake System – Heavy-Duty Trucks & Commercial Vehicles |
| Vehicle Platform | SHACMAN Delong X3000, M3000(S), F3000 Series |
| Engine Compatibility | Weichai WP Series, Cummins ISGe/ISZ Engines |
| Main Function | Filter, dry, and regulate compressed air; protect downstream components |
| Integrated Features | Desiccant drying, 4-circuit protection, automatic purge, anti-freeze heating |
| Parameter | Specification |
|---|---|
| Working Pressure Range | 0.8 – 1.0 MPa (8–10 bar) |
| Operating Voltage | 24V DC (for heating element) |
| Heater Function | Prevents freezing at exhaust port during winter operation |
| Desiccant Type | High-efficiency molecular sieve (silica gel or hybrid) |
| Filtration Efficiency | Removes >95% moisture, oil aerosols, and particles down to 5–10 μm |
| Automatic Purge | Activates during compressor unload cycle; expels collected water/oil sludge |
| Valve Integration | Built-in four-circuit protection valve |
| Four-Circuit Protection | Isolates failed circuit while maintaining pressure in others (e.g., handbrake vs footbrake) |
| Weight (Approx.) | 8 – 11 kg |
| Mounting Style | Bracket-mounted near air compressor or front frame rail |
| Connection Ports | Standard G1/2" or M22×1.5 threaded ports for inlet, outlet, and exhaust |
| Exhaust Outlet | Heated nozzle to prevent ice blockage |
| Service Interval (Filter Cartridge) | 12 months or 100,000 km (whichever comes first) |
| Ambient Temperature Range | -40°C to +85°C |
| Compliance Standards | Meets GB/T, ISO 15408, and functional equivalents to WABCO air dryer performance |
SHACMAN Full Series Heavy Truck Air Dryer Assembly
| OEM Part Number | Full Part Name | Applicable SHACMAN Truck Models | Specification & Technical Feature |
|---|---|---|---|
| DZ96189360003 | Air Dryer Assembly with 4-circuit Protection Valve | Delong New M3000 / M3000S / Aolong | Working pressure 1.2MPa, integrated 4-loop valve, standard aftermarket replacement, RILI brand original matchingMade-in-Ch... |
| DZ96189360063 | Integrated Air Processing Dryer Unit | Delong X3000 Tractor Truck, National V Emission | WABCO structure, oil-water separation, built-in heating module for cold regions |
| DZ96189369474 | WABCO Air Dryer Assembly Complete Unit | Delong X3000 Heavy Haul Tractor | Max pressure 13bar, replaceable desiccant cartridge, single tank integrated four-circuit valveAlibaba.co... |
| DZ96189361087 | 6-Circuit Air Dryer Assembly (Euro 6 National VI) | Delong X5000 / X6000 / L5000 / H3000 | 6-way air distribution, KNORR-BREMSE integrated module, oil separation filter built-in |
| DZ9L149360133 / DZ9L149360133A | National VI Air Dryer Processing Unit | Delong F3000 / X5000 / H3000 Dump Truck | Reinforced aluminum valve body, anti-freeze heating plug, mining heavy-load dedicated modelอาลีบ... |
| DZ96189361084 | Universal Air Dryer Assembly for Mid-range Chassis | Delong F2000 / F3000 / L3000 Light Tractor | Compact size, simple single-circuit dryer, logistics light truck matchingAlibaba.co... |
| BQ35551000016 | Original Factory Air Dryer Assembly | Full Delong X/F/M Series General | OEM original specification, interchangeable with DZ96189361087, complete with mounting bracket阿里巴巴中... |
| DZ95189362020 | Old Model Single Tank Air Dryer Assembly | Early F2000 / F3000 Classic Cargo Truck | Split design without integrated four-circuit valve, independent matching protection valve required阿里巴巴中... |
