DZ96189360000
Shacman
| Parameter | Specification |
|---|---|

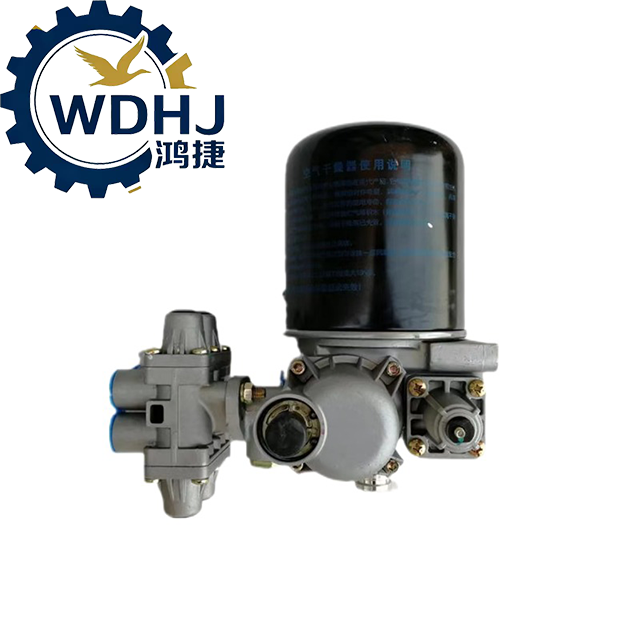

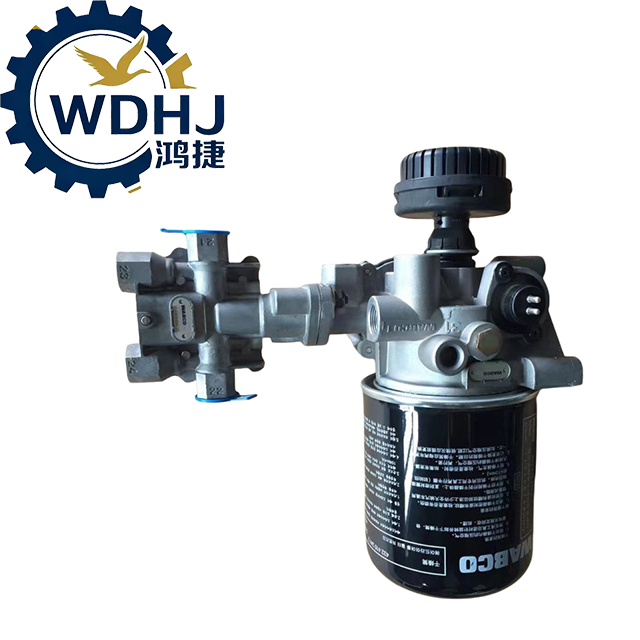

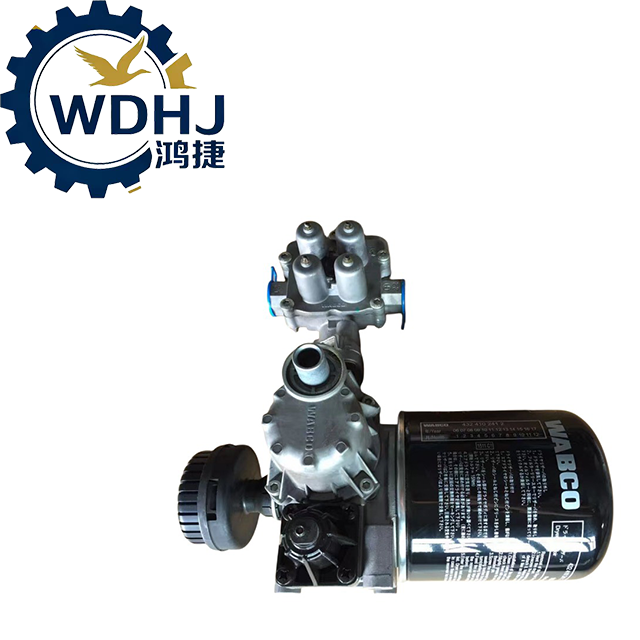

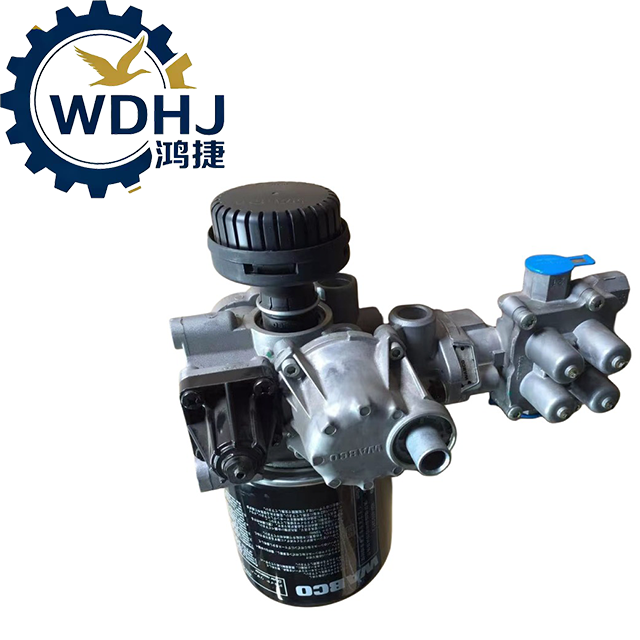

| Part Name | Air Dryer Assembly / Air Processing Unit (APU) / Wet Gas-Oil Separator |
| OE Number | DZ96189360000 |
| Function | Removes water vapor, oil mist, and particulates from compressed air in pneumatic systems |
| Type | Integrated valve-type air dryer with electric or mechanical purge control |
| Dryer Method | Adsorption drying using desiccant (e.g., molecular sieve, silica gel, or activated alumina) |
| Working Pressure Range | 8–10 bar (120–175 psi) — standard for heavy truck air systems |
| Operating Voltage | 24V DC (for electronically controlled versions; some models may be mechanical) |
| Air Flow Rate | ~2.4 dm³/s (144 L/min) — suitable for large air demand in Class 8 trucks |
| Housing Material | High-quality steel or alloy housing with anti-corrosion coating |
| Valve Type | Built-in check valve, purge valve, and regulator |
| Desiccant Cartridge | Replaceable internal cartridge (desiccant core) for continuous regeneration |
| Drain Type | Automatic electric or timed purge; some variants use manual drain |
| Dimensions | Standard size; typical cylinder diameter: 118 mm / 122 mm / 130 mm |
| Weight | Approx. 3.0 – 5.0 kg (6.6 – 11 lbs) |
| Condition | Brand New (Sealed Packaging) |
| Quality Certification | OEM quality standards; ISO 9001 compliant |
| Warranty | Typically 6 to 12 months |
|
|
|
