1000993537

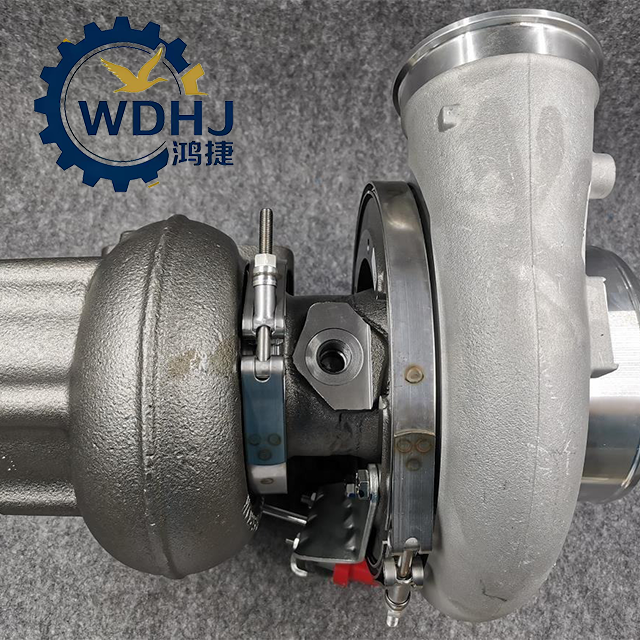

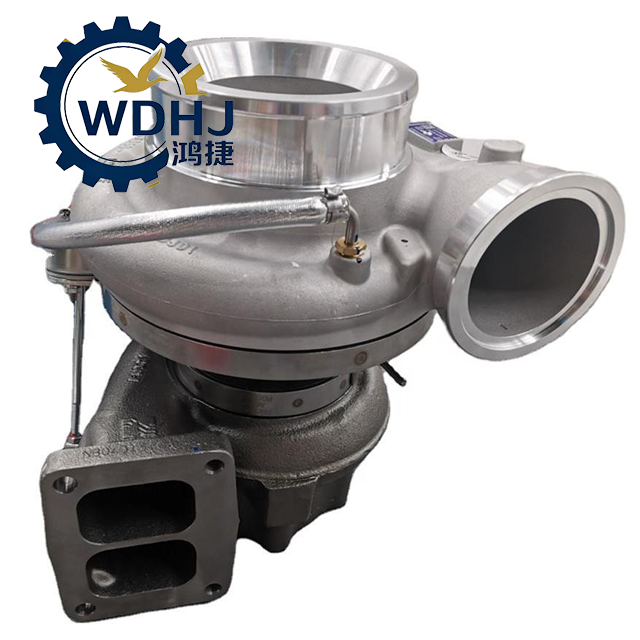

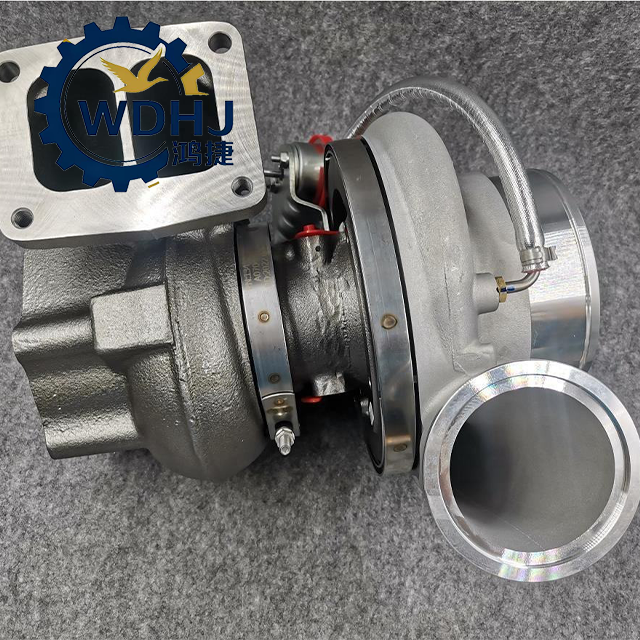

Tonly Mining Dump Trucks
| Attribute | Specification |
|---|---|
| Part Number | 1000993537 |
| Manufacturer | Weichai Power Co., Ltd. |
| Component Name | Exhaust Gas Turbocharger with Pneumatic Wastegate |
| Engine Compatibility | Weichai WP13 Series (480hp, 500hp, 550hp); also compatible with WP12 platforms |
| Application Type | Heavy-Duty Commercial Vehicles, Mining Trucks, Construction Equipment |
| Turbocharging System | Fixed Geometry Turbocharger (FGT) with Wastegate Bypass |
| Cooling Method | Oil-Cooled (journal bearing system with pressurized lubrication) |
| Lubrication Source | Engine oil (from main gallery) |
| Control Type | Pneumatically Actuated Wastegate Valve |
| Max Operating Speed | >100,000 RPM |
| Emission Compliance | Supports China V / China VI Emission Standards |
| Parameter | Value / Detail |
|---|---|

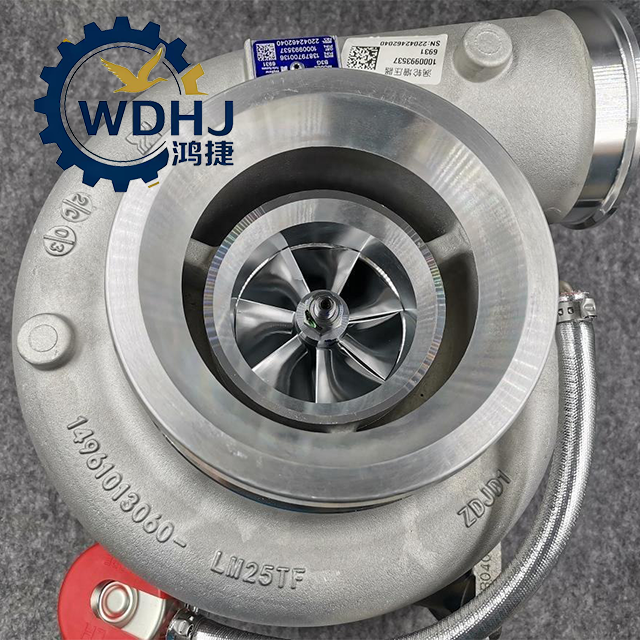

| Compressor Wheel Material | High-strength cast aluminum alloy; upgraded versions use MFS (machined/forged-swept) aluminum for improved fatigue resistance |
| Turbine Housing Material | Ni-resist ductile cast iron (high nickel content), withstands exhaust temps >750°C |
| Shaft Material | High-performance alloy steel, precision-ground and dynamically balanced |
| Bearing Type | Floating journal bearings (oil-lubricated) |
| Wastegate Type | Integrated pneumatic actuator – modulates boost pressure under high load |
| Boost Pressure Range | 1.8 – 2.6 bar (varies by engine calibration) |
| Airflow Capacity | ~45–65 kg/min (depending on operating point) |
| Efficiency (Compressor) | ≥75% peak adiabatic efficiency |
| Thermal Endurance | Designed for continuous operation in ambient temperatures from -30°C to +50°C |
| Service Life (typical) | 15,000 – 30,000 operating hours (with proper maintenance and oil management) |
