4110002027009 DZ90149346041 Adjusting Arm for Tongli 875 Tongli Heavy Industry Hande 35t Xugong Mine Car Shaanxi

4110002027009 DZ90149346041 Adjusting Arm for Tongli 875 Tongli Heavy Industry Hande 35t Xugong Mine Car Shaanxi

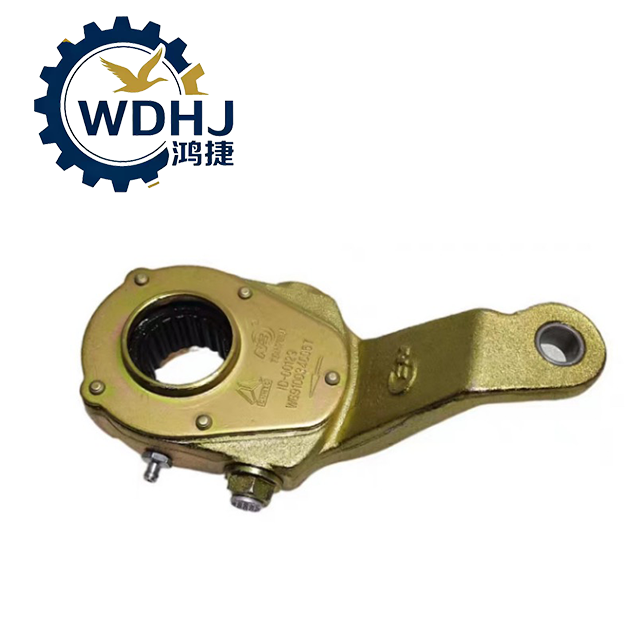

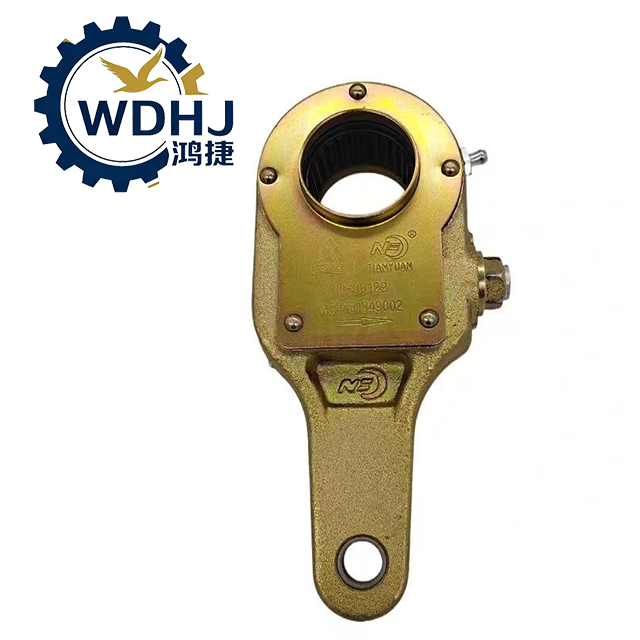

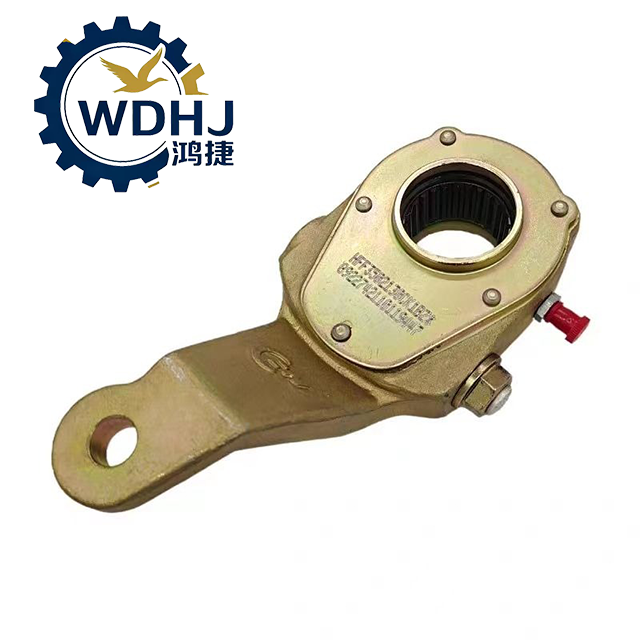

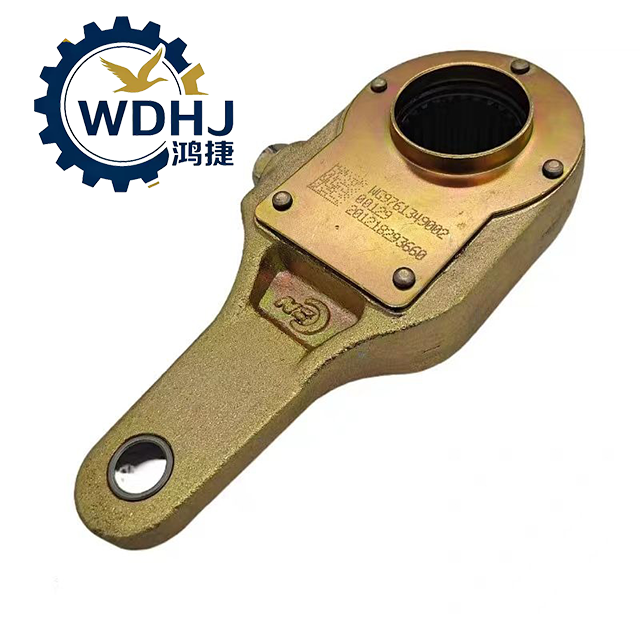

The Part No. DZ90149346041 is a high-performance Automatic Slack Adjuster (ASA) manufactured by Hande Axle (HanDe), specifically engineered for 35-ton heavy-duty and mining-duty rear axles used in China’s off-highway and ultra-heavy-duty trucking sectors. This component plays a vital role in maintaining optimal braking performance on vehicles such as wide-body dump trucks and heavy-haul dumpers operating under extreme conditions — including steep slopes, high loads, dust, mud, and continuous brake cycles.

As a core part of the S-cam drum brake system, this automatic brake adjuster ensures that the clearance between the brake lining and brake drum remains within the ideal range (0.7–1.2 mm), regardless of wear. It eliminates manual adjustment requirements and significantly enhances braking consistency, safety, and reliability across multi-axle configurations commonly found on large mining trucks

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ90149346041
Brand:
Tonly Mining Dump Trucks

Product Description

Attribute	Specification
Part Number	DZ90149346041
Alternate Numbers	HD90149346110 (upgraded version), DZ9112340061, Tonly 8703400030
Component Name	Automatic Brake Slack Adjuster (for Drum Brakes)
Axle Compatibility	Hande 35-Ton Mining Rear Axle (Standard Fitment)
Primary Application	Off-Highway Mining Trucks, Heavy-Haul Dumpers
Fitment Brands	Shaanxi Tonly, Shacman, LGMG, Zoomlion Heavy Industry
Typical Vehicle Models	Tonly TL875, TL855, TL885; Shacman X3000/X5000 (with 35T Hande axle)
Tooth Configuration	10T or 28T (verify spline shaft match; common on large-diameter camshafts)
Mounting Center Distance	145 mm or 165 mm (based on bracket design – confirm before installation)
Operating Principle	Wear-sensing automatic adjustment via worm gear and one-way clutch mechanism
Housing Material	High-strength precision-forged steel
Internal Mechanism	Hardened worm gear and turbine with high-frequency induction quenching
Sealing Rating	IP67 – Protected against dust ingress and temporary immersion

Parameter	Value / Detail
Adjustment Type	Automatic self-adjusting (senses stroke elongation due to lining wear)
Target Clearance Range	0.7 mm – 1.2 mm (maintained dynamically during service)
Regulation Standard	Complies with GB12676, ECE R13 (functional safety standards for commercial brakes)
Torque Resistance	Up to 1,800 N·m (ensures reliable actuation under full brake chamber pressure)
Temperature Range	-40°C to +150°C (suitable for desert and alpine mine environments)
Lubrication Requirement	High-temperature lithium-based grease (NLGI #2 recommended)
Service Life (typical)	8,000 – 15,000 operating hours (dependent on terrain and maintenance)
Installation Side	Left/Right (must be matched correctly per side; asymmetric linkage geometry)
Control Arm Angle Sensitivity	±5° maximum deviation allowed; otherwise auto-adjust function fails
