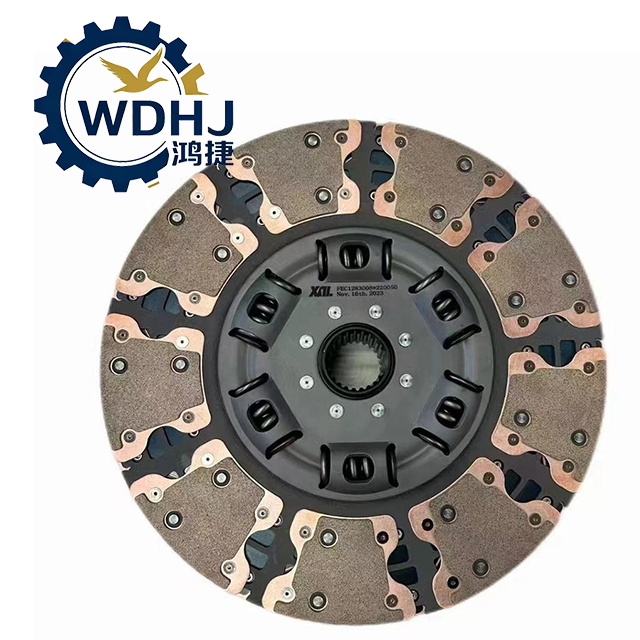

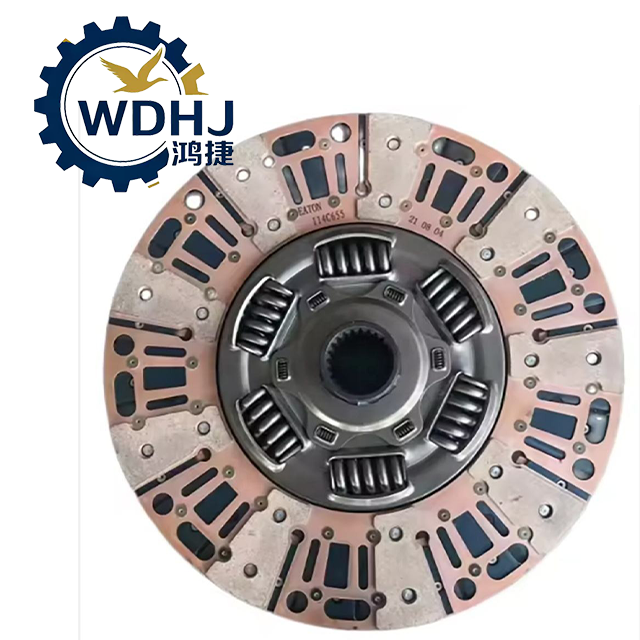

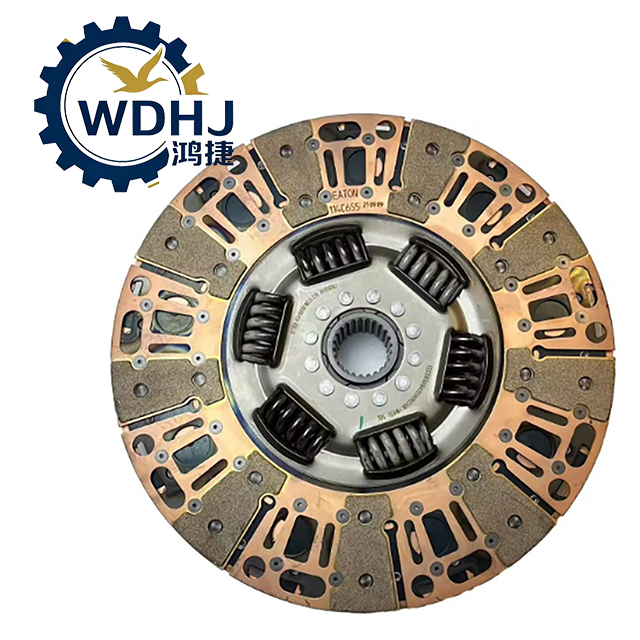

Clutch Disc Fec1283008 Clutch Release Bearing 12548 Clutch Pressure Plate Fec170001-36 for Tongli Mining Trucks

Clutch Disc Fec1283008 Clutch Release Bearing 12548 Clutch Pressure Plate Fec170001-36 for Tongli Mining Trucks

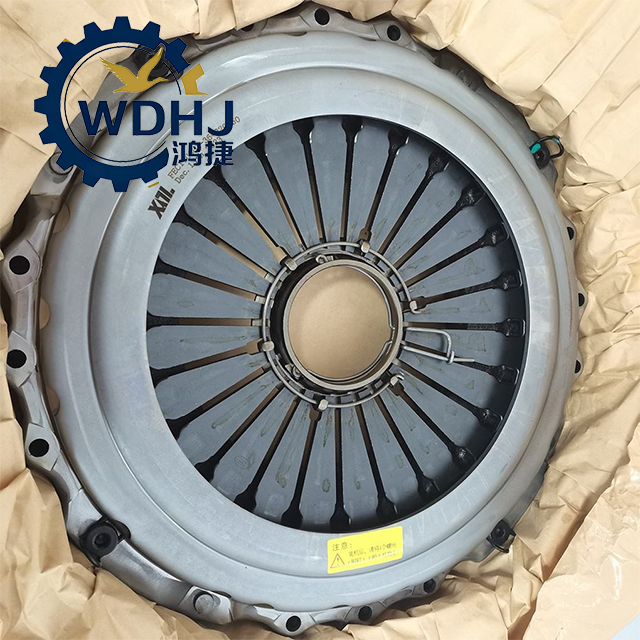

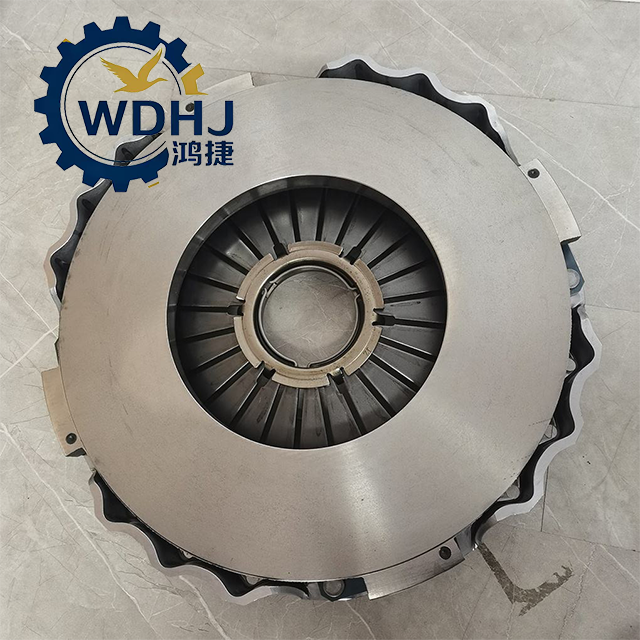

The Part No. FEC170001-36 is a core component of the driveline system specifically engineered for China's heavy-duty mining and off-highway vehicles, particularly Shaanxi Tonly (Tongli) wide-body articulated dump trucks. This part refers to the Clutch Cover Assembly with Diaphragm Spring and Pressure Plate, designed for high-torque, frequent-shift applications under extreme load and harsh environmental conditions typical of open-pit mines and large-scale construction sites.

As a critical interface between engine and transmission, this clutch assembly ensures reliable torque transfer from the flywheel to the gearbox via the driven plate (clutch disc). It is optimized for use with FAST 6DS/7DS series transmissions and delivers superior thermal stability, smooth engagement, and long service life in continuous heavy-load operations such as uphill hauling and stop-start dumping cycles.

Quantity:
Availability:





Inquire Add to Basket

Model:
FEC170001-36
Brand:
Tonly Mining Dump Trucks

Product Description

Attribute	Specification
Part Number	FEC170001-36
Alternate Designations	170001-36, FAST 14321-36200 (reference only – verify fitment)
Component Name	Diaphragm Spring Clutch Cover & Pressure Plate Assembly
Type	Pull-Type (Predominant in Shaanxi Tonly Series)
Nominal Diameter	430 mm
Application Type	Off-Highway Mining Trucks / Ultra-Heavy-Duty Articulated Dumpers
Primary Fitment	Shaanxi Tonly TL875, TL855, TL859 Series
Compatible Brands	Shaanxi Tonly, Zoomlion Heavy Industry, LGMG
Transmission Match	Compatible with FAST 6DS / 7DS Series Gearboxes
Main Material – Cover	High-Strength Cold-Rolled Steel Sheet
Main Material – Pressure Plate	High-Thermal-Conductivity Alloy Cast Iron (HT250 or higher grade)
Weight	32 kg – 35 kg
Operating Principle	Spring-loaded diaphragm mechanism for consistent clamping force

Parameter	Value / Detail
Clamping Force	18,500 N – 22,000 N (optimized for high-torque diesel engines)
Diaphragm Spring Type	Pull-Type (standard); Push-Type possible in some variants (verify before install)
Thermal Resistance	Enhanced heat dissipation due to thickened pressure plate; resists warping up to 400°C
Torque Capacity	Supports engine outputs > 2,500 N·m
Friction Surface Finish	Precision-machined grooved surface for improved heat dispersion and wear resistance
Mounting Bolt Pattern	Standardized 36-hole bolt circle (specific pitch diameter varies by model)
Dynamic Balance Grade	G40 (ISO 1940 standard), ensuring smooth operation at high RPM
Service Life (typical)	3,000 – 6,000 operating hours (dependent on driving style and maintenance)
Heat Crack Resistance	High (HT250+ cast iron with graphite microstructure reduces thermal stress cracking)
Engagement Characteristic	Progressive and smooth power take-up under full load
