Heavy Duty Truck Trailer Parts for Shacman F3000 Drive System Drive Shaft Transmission Shaft Assembly DZ9114315104 Front Drive Shaft Assembly

Heavy Duty Truck Trailer Parts for Shacman F3000 Drive System Drive Shaft Transmission Shaft Assembly DZ9114315104 Front Drive Shaft Assembly

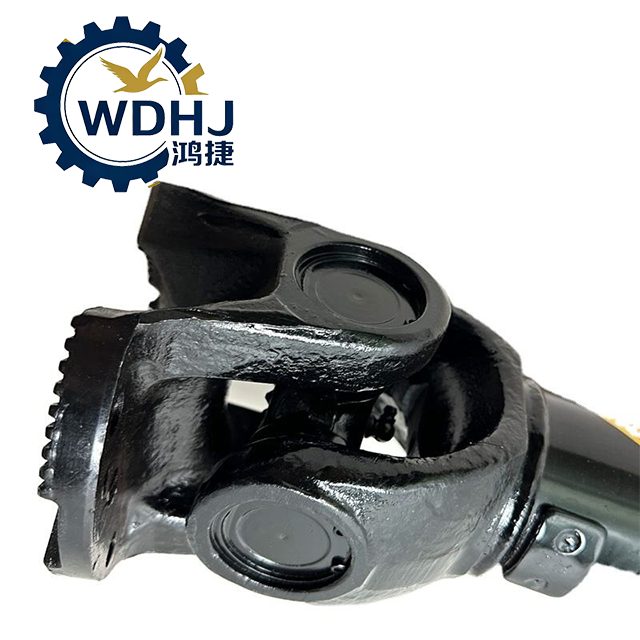

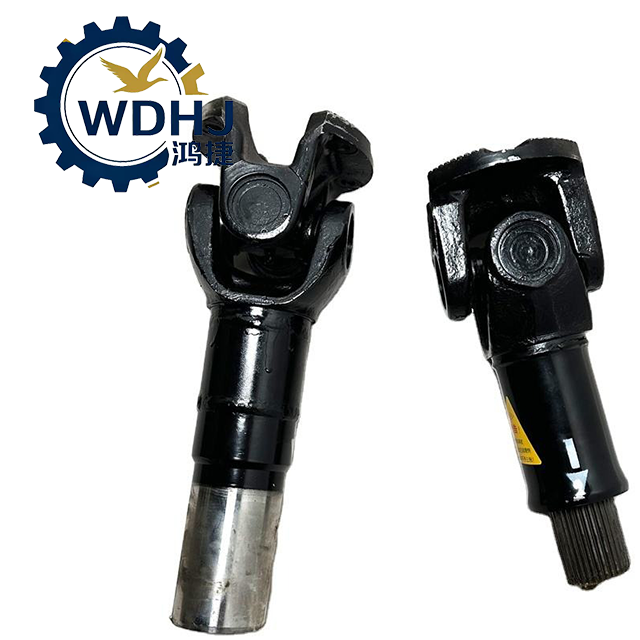

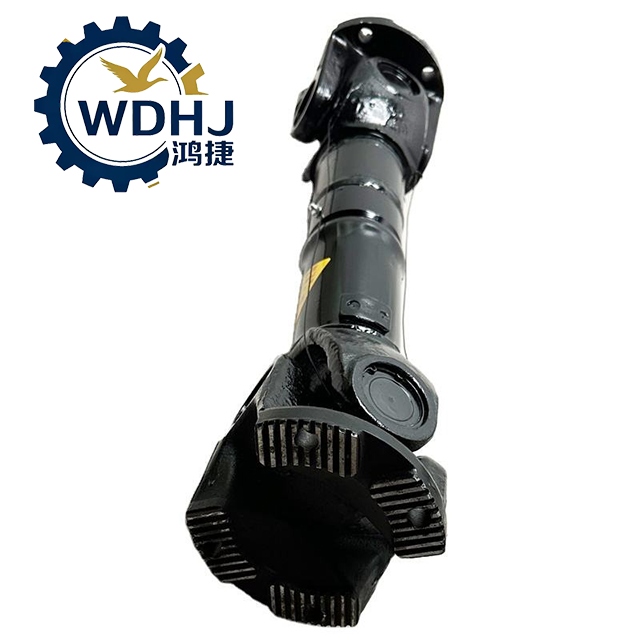

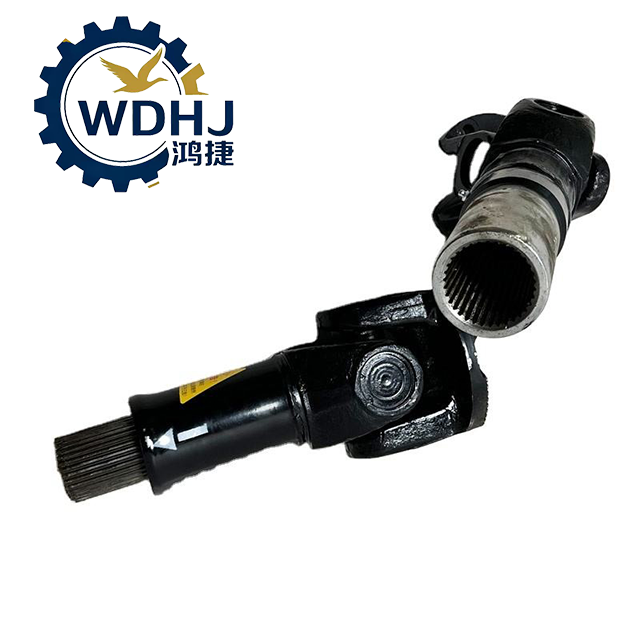

The Propeller Shaft Assembly (Part No. DZ9114315104) is a high-strength driveline component specifically engineered for Shaanxi Heavy Duty Automobile Co., Ltd. (SHACMAN) heavy-duty trucks. This shaft plays a critical role in transmitting engine torque from the transmission or transfer case to the rear or tandem axles, particularly serving as the inter-axle drive shaft between the middle and rear axles in multi-axle configurations.

Designed for extreme durability, this propeller shaft delivers reliable power transfer under high-load conditions such as mining, construction, heavy haulage, and on/off-road operations. With a robust construction using high-tensile alloy steel, precision-balanced tube body, and 180-series universal joint flanges, it ensures smooth operation, minimal vibration, and long service life even in harsh environments.

Quantity:
Availability:





Inquire Add to Basket

Model:
DZ9114315104
Brand:
Shacman

Product Description

Attribute	Description
Product Name	Propeller Shaft Assembly / Drive Shaft
Part Number	DZ9114315104
Common Names	Transmission Shaft, Driveshaft, Cardan Shaft
Function	Transmits rotational torque between gearboxes and axles
Shaft Length (L)	1,040 mm (standard center-to-center length)
Telescopic Travel	110 mm (allows dynamic length adjustment)
Outer Diameter (OD)	110–120 mm
Wall Thickness	Reinforced for high torsional strength
End Connection Type	180-Series Flange with U-Joint Cross (U-bolt or bolt-on style)
Material	High-strength alloy steel (quenched & tempered)
Surface Treatment	Black paint or galvanized coating for corrosion resistance
Dynamic Balance	Factory precision balanced (Grade G16 or better)
Application Position	Mid-to-rear axle drive shaft (tandem axle configuration)
Standard Compliance SHACMAN Full Series Heavy Truck Drive Shaft Assembly Catalog F2000 / F3000 Series	GB/T, ISO 3764, SAE J716, SHACMAN Internal Specifications

Parameter	Specification
Model Number	DZ9114315104
Total Length (Center-to-Center)	1,040 mm
Effective Extension Range	±55 mm (total 110 mm telescoping capacity)
Tube Outer Diameter	114 mm (typical)
Shaft Wall Thickness	≥ 6 mm
Yield Torque Capacity	~47,000 N·m
Max Continuous Torque	Up to 38,000 N·m
U-Joint Series	180 (heavy-duty cross & bearing caps)
Lubrication Points	Grease nipples on U-joints and slip yoke
Weight (approx.)	~32 kg
Operating Speed (max)	≤ 5,000 RPM (balanced condition)
Dust Boot Included	Yes – protects sliding spline
Approvals	OEM-approved for SHACMAN X3000, F3000, M3000 series

SHACMAN Full Series Heavy Truck Drive Shaft Assembly Catalog

F2000 / F3000 Series

Part Number	Part Name	Applicable Models	Specifications
DZ9114311066	Inter-axle Drive Shaft	F2000, F3000	Φ52 universal joint, 52×133 flange yoke, L=660mm
DZ9114311067	Inter-axle Drive Shaft	F2000, F3000, X3000, X5000	665×180×4 holes, Φ52 universal joint
DZ9114311072	Inter-axle Drive Shaft	F3000 6×4	L=720mm, Φ180 flange, 4 holes, cross joint D57
DZ9114312066	Transmission Shaft	F2000, F3000, New M3000, X3000	Φ57 universal joint, 57×142 flange yoke, T180 end tooth
DZ9114312072	Inter-axle / Rear Drive Shaft	F2000, F3000, M3000, X3000	480×133×52mm, Φ57 universal joint, L=480mm
DZ9114313176	Main Propeller Shaft	F2000, F3000, L3000, M3000, X3000, H3000, X5000, X6000	Φ57 extended universal joint, 57×142 flange yoke, T180
DZ9114315104	Propeller Shaft Assembly	F3000, X3000	Φ68 universal joint, 68×165.5 flange yoke, L=1040mm
DZ9114315108	Drive Shaft Assembly	F3000, New M3000	Φ68 universal joint, L=1080mm
DZ9114315116	Drive Shaft Assembly	F2000, F3000, M3000	Lightweight, L=1160mm, 180 flange end
DZ9114315120	Transmission Shaft	F3000, X5000, X5000S	Φ68 universal joint, L=1200mm
DZ9114315132	Drive Shaft Assembly	F3000	L=1320mm
DZ9114315165	Drive Shaft Assembly	Delong F-series	Φ68 universal joint, L=1650mm
DZ9114315176	Telescopic Drive Shaft	F3000, M3000, X3000	1760mm telescopic shaft, Φ68 universal joint
DZ9112313123	Intermediate Drive Shaft	F2000, F3000	Yield 34000Nm, 180 end, 2-hole support, L=1230mm
DZ9112315141	Intermediate Drive Shaft Assembly	F3000	Φ68 universal joint, with hanger bearing
DZ91149311066	Drive Shaft	F3000	Φ52 universal joint, L=660mm
DZ91149311072	Drive Shaft	M3000 (SX1317GL366)	Φ52 universal joint, L=720mm

X3000 Series

Part Number	Part Name	Applicable Models	Specifications
DZ92189315086	Intermediate Cardan Shaft	X3000	L=860mm, Φ180 flange, Φ68 cross joint, 4 holes, with hanger
DZ92189315096	Intermediate Drive Shaft	F3000, X3000	Φ68 universal joint, L=960mm, with support bracket
DZ92189315107	Intermediate Drive Shaft	X3000	Φ68 universal joint, L=1070mm
DZ92189315129	Middle Drive Shaft	X3000	Φ68 universal joint, L=1290mm
DZ92189315134	Drive Shaft	X3000	Φ68 universal joint, L=1340mm
DZ92189315176	Intermediate Drive Shaft	F3000, X3000	Φ68 universal joint, L=1760mm
DZ91189313450	Telescopic Intermediate Drive Shaft	X3000 (HDZ237 front drive axle)	L=625mm, 45# steel, intermediate axle
DZ90149320053	Drive Shaft	X3000	Through shaft type
DZ9114315104	Propeller Shaft	X3000	Φ68 universal joint, L=1040mm
DZ9114312072	Propeller Shaft	X3000	Φ57 universal joint, L=480mm
81-35604-0021	Heavy Duty Drive Shaft Assembly	X3000	OEM MAN technology, through shaft
DZ95189312061	Propeller Shaft	X3000, X6000	High torque, L=610mm

X5000 / X5000S Series

Part Number	Part Name	Applicable Models	Specifications
DZ97189315108	Drive Shaft	X5000	Φ68 universal joint, L=1080mm
DZ97189315136	Drive Shaft	X5000	Φ68 universal joint, L=1360mm, HDZ440 drive axle
DZ97259315133	Drive Shaft	X5000	Φ68 universal joint, L=1330mm
DZ9114315120	Drive Shaft Assembly	X5000, X5000S	Φ68 universal joint, L=1200mm
DZ9114311067	Inter-axle Drive Shaft	X5000	665×180×4 holes

X6000 Series

Part Number	Part Name	Applicable Models	Specifications
DZ9X319312114	Propeller Shaft	X6000	High-strength, L=1140mm, maintenance-free
DZ95189312061	Propeller Shaft	X6000	L=610mm, compact design
DZ9X259312116	Telescopic Drive Shaft	X6000	Yield 47000Nm, 180 end, 110mm telescopic travel, L=1160mm, maintenance-free

M3000 / New M3000 / H3000 Series

Part Number	Part Name	Applicable Models	Specifications
DZ91129312189	Intermediate Drive Shaft	M3000 (SX1317GL366)	Φ57 extended universal joint, L=1890mm
DZ91194312164	Drive Shaft	M3000 (SX1317GL366)	Φ52 universal joint, L=1640mm
DZ91149311072	Drive Shaft	M3000 (SX1317GL366)	Φ52 universal joint, L=720mm
DZ96319312194	Intermediate Drive Shaft	New M3000	Φ57 universal joint, L=1940mm
DZ95319318120	Supporting Angle Plate	M3000 (SX1317GL366)	Drive shaft hanger bracket
DZ9114315176	Telescopic Drive Shaft	M3000, H3000	1760mm telescopic, Φ68 universal joint
DZ9114315116	Drive Shaft Assembly	M3000	Lightweight, L=1160mm
PW10G/46122.6112	Drive Shaft Assembly	M3000	OEM replacement
