DZ9114470075
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ9114470075 |

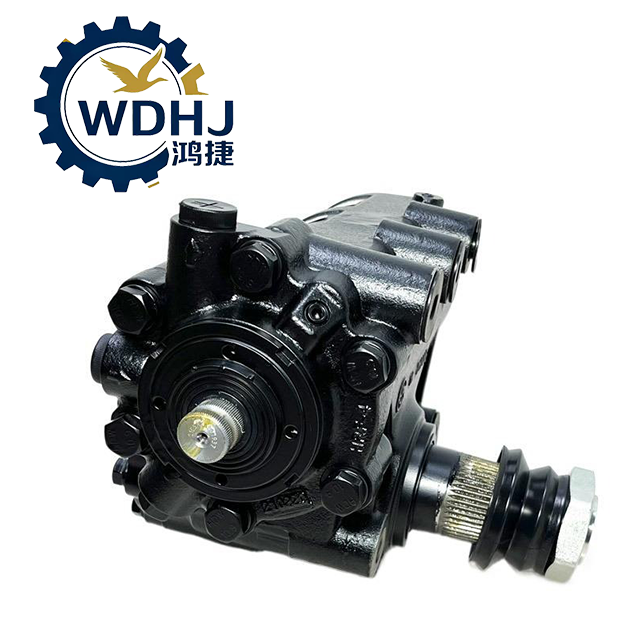

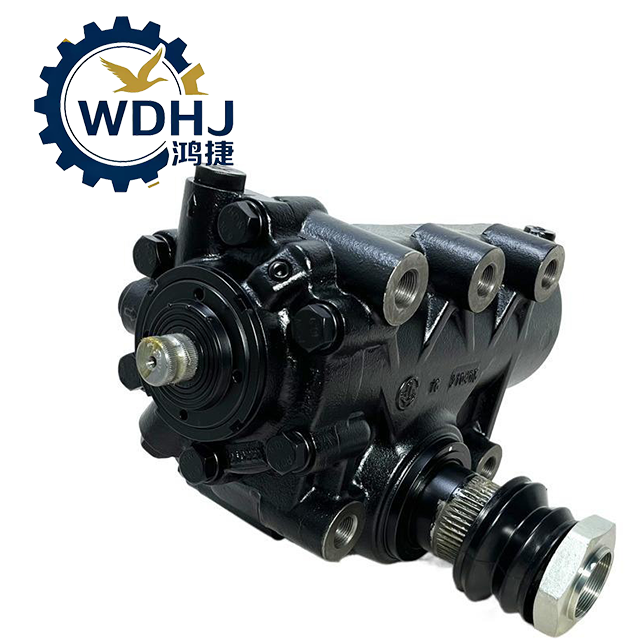

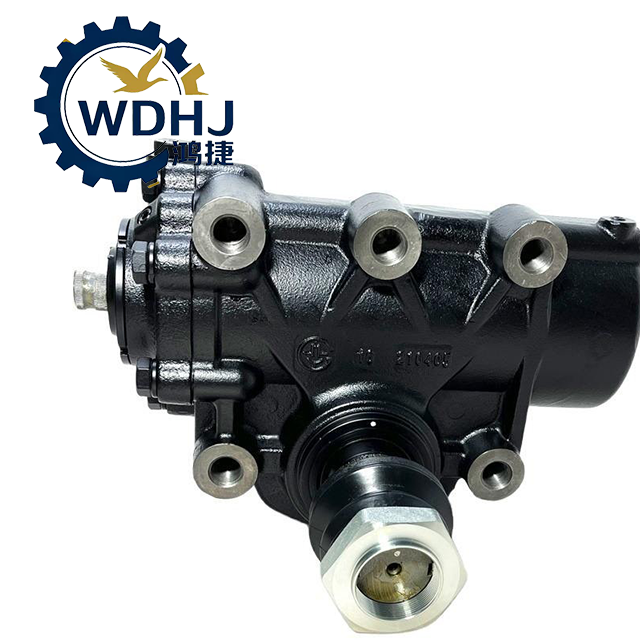

| Product Name | Power Steering Gear Box Assembly (Left-Hand Drive) |
| Technology Standard | ZF 8098 Series (Domestically Manufactured under License/Technical Reference) |
| Type | Recirculating Ball with Hydraulic Power Assist |
| Mounting Position | Left-side mounted (for LHD vehicles) |
| Steering Ratio | Variable ratio: Typically 22.2 – 26.2:1 |
| Max Working Pressure | 15 – 18 MPa (system-dependent) |
| Max Output Torque | 5,000 – 8,000 Nm |
| Weight | 35 – 45 kg |
| Housing Material | High-strength ductile cast iron |
| Internal Components | Precision alloy steel gears, shafts, and valve assemblies |
| Input Shaft Connection | Splined connection to steering column |
| Output Linkage | Pitman arm output (connects to drag link or center link) |
| Compatibility | SHACMAN F2000/F3000; compatible with other brands using ZF8098 footprint |
Hydraulic System Requirements:
Recommended Fluid: 8# Hydraulic Oil or ATF Automatic Transmission Fluid
Operating Temperature Range: -40°C to +110°C
Flow Requirement: Compatible with vane-type steering pumps (e.g., ~12–16 L/min)
Performance Characteristics:
Variable Steering Ratio: Lower ratio at straight-ahead position for stability; increases during full lock for better responsiveness.
High Assist Multiplication: Enables easy steering even during zero-radius turns under full load.
Road Feel Optimization: Improved spool valve tuning enhances driver feedback at high speed without sacrificing low-speed ease.
Shock Load Resistance: Effectively dampens kickback from potholes, curbs, or uneven off-road surfaces.
Durability & Reliability:
Seals resistant to oil degradation and thermal aging (2026 upgrade).
Reinforced input/output shaft bearings for extended service life.
Designed for continuous operation in harsh environments (mining, quarry, desert).
