| Quantity: | |
|---|---|
3411010-50A
FAW
| Attribute | Specification |
|---|---|

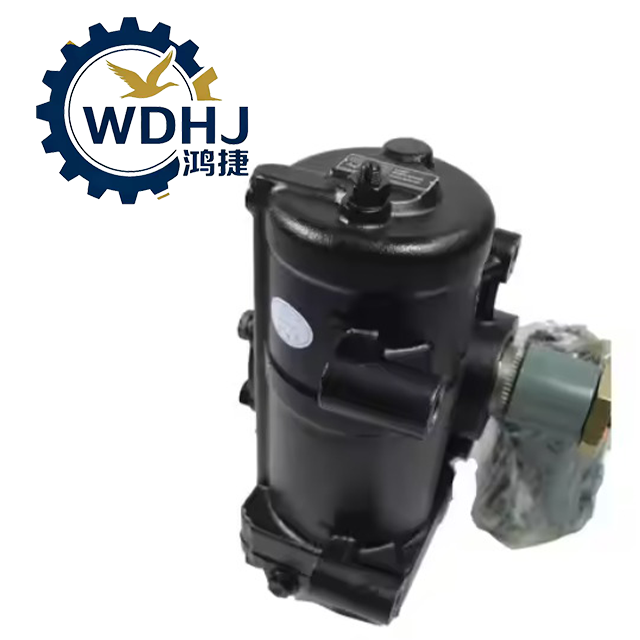

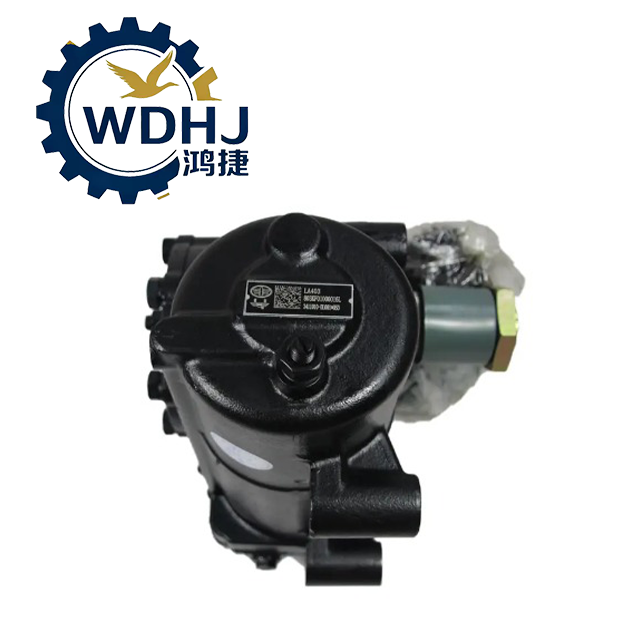

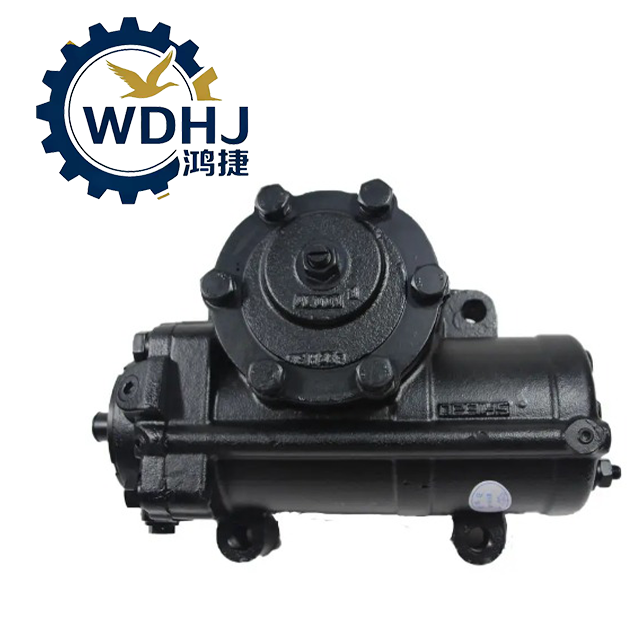

| Product Name | Hydraulic Power Steering Gear / Steering Box |
| Part Number | 3411010-50A (also written as 3411010A50A or 3411010-50A/E) |
| Alternative Numbers | 3411010-371, 3411010-A50A, 3411010-Q724 |
| Structure Type | Recirculating Ball, Integral Hydraulic Power Assist |
| Rated Working Pressure | 13.0 MPa – 15.0 MPa (1885 – 2175 psi) |
| Output Torque | ≥ 6300 N·m |
| Front Axle Load Capacity | 6.5 – 7.5 tons |
| Total Turns Lock-to-Lock | ~5.4 turns |
| Output Shaft Diameter | Φ49 mm (standard spline shaft) |
| Housing Material | High-Strength Ductile Cast Iron (Nodular Iron) |
| Internal Components | Precision-ground piston, spool valve, recirculating steel balls |
| Working Fluid | Power Steering Oil (e.g., ATF-III, No. 8 Hydraulic Oil) |
| Vehicle Application | FAW Jiefang J6P, J6L, JH6, J5 (New Dawei, Aowei), CA3250/CA3310 series |
| Mounting Style | Frame-mounted with tie rod linkage to pitman arm |
| Parameter | Value |
|---|---|
| Steering Mechanism | Recirculating-ball + rotary spool valve (hydraulic servo assist) |
| Hydraulic Input | Connected to steering pump via high-pressure hoses |
| Control Principle | Driver’s rotation → torsion bar deflection → valve directs oil flow → piston moves rack → steers wheels |
| Backlash Adjustment | Adjustable pre-load on worm gear for wear compensation |
| Limit Relief Valve | Integrated pressure relief when steering reaches lock position |
| Operating Temperature Range | -40°C to +120°C (-40°F to 248°F) |
| Sealing Performance | Dual-lip oil seals on input/output shafts; prevents leakage |
| Weight | Approx. 28 – 35 kg |
| Compliance Standards | Meets GB/T, ISO 5742, TRW/ZF engineering benchmarks |
