| Quantity: | |
|---|---|
DZ96189460546
Shacman
| Attribute | Description |
|---|---|

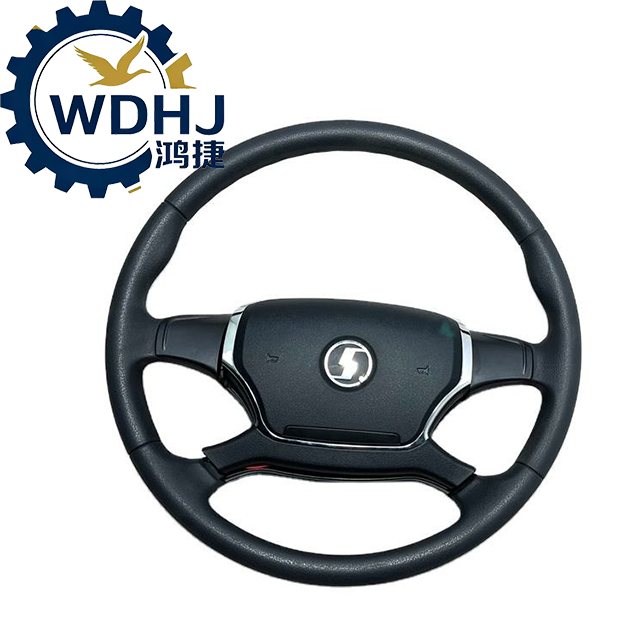

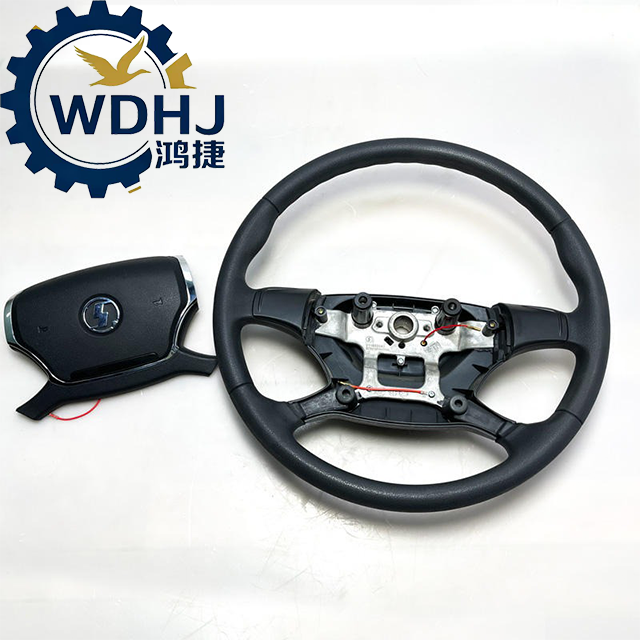

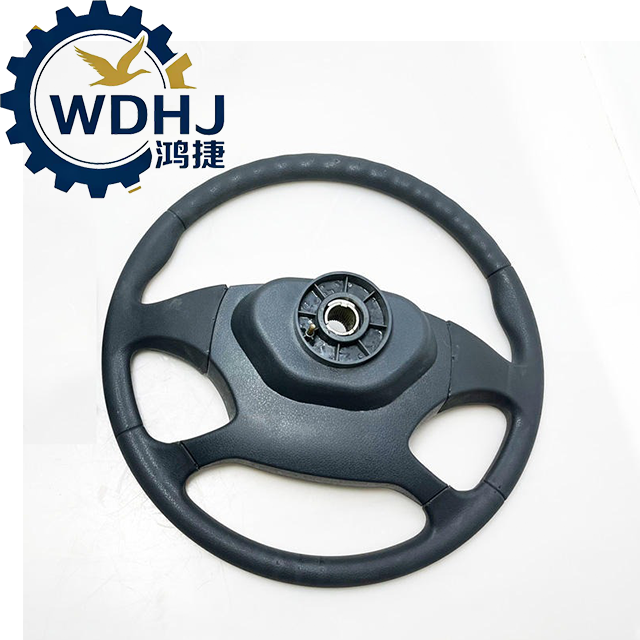

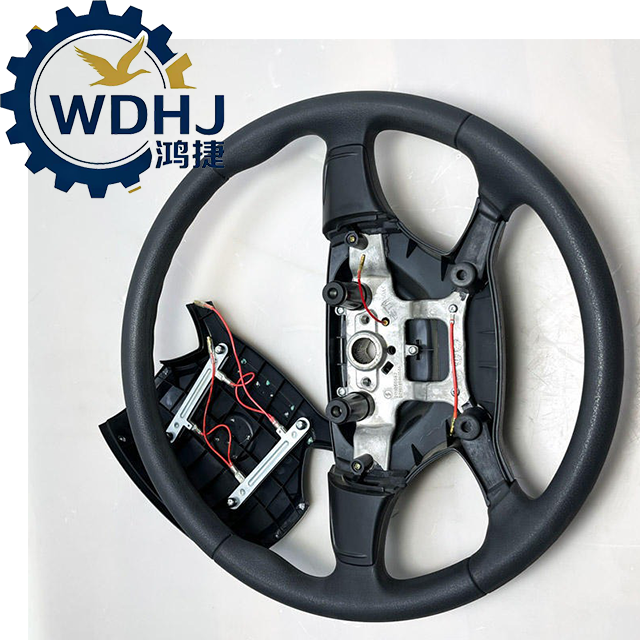

| Part Name | Steering Wheel Assembly / Driver's Steering Wheel |
| OEM Number | DZ96189460546 |
| Alternative Names | Cab Steering Tray, Truck Steering Hub with Rim |
| Material | High-impact ABS plastic rim with internal steel/polymer frame; center hub made from reinforced iron/steel |
| Design Type | 3-spoke or 4-spoke design (model-dependent), flat-bottom or standard round shape |
| Dimensions | Standard OEM size — typically ~400–450 mm diameter (common truck steering wheel range) |
| Weight | Approx. 5 kg (including packaging) |
| Condition | Brand new (OEM fresh stock or premium aftermarket) |
| Mounting Interface | Splined shaft fit (standard ISO/DIN pattern); compatible with Shacman column lock and airbag module (if applicable) |
| Color | Black (standard), may include silver trim or logo insert |
Name1
Name2
Verify Compatibility Before Purchase
Confirm vehicle model, production year, and existing steering column type.
Some variants differ in spline count, hub depth, or horn contact layout.
Professional Installation Recommended
Involves removal of the steering column cover and potentially disabling electrical connections.
Use proper tools (e.g., steering wheel puller) — never force removal.
Airbag Safety Warning (If Applicable)
Disconnect battery for at least 15 minutes before starting work.
Avoid static discharge near connectors.
If replacing a wheel with integrated airbag circuitry:
This model (DZ96189460546) is typically non-airbag, but verify based on your configuration.
Secure Mounting Is Critical
Tighten central nut to factory torque specification (~50–70 Nm).
Ensure alignment marks (if any) are matched to avoid misalignment.
Test Horn Function After Installation
Check that horn activates correctly through the pad or spokes.
Inspect wiring continuity if not working.
Avoid Harsh Cleaners
Do not use solvents, bleach, or abrasive cleaners — can damage plastic surface.
Clean with mild soap, water, and soft cloth.
Check for Play or Wobble
After installation, inspect for looseness or vibration in the wheel.
Could indicate improper seating or damaged splines.
Storage & Handling
Store upright in dry conditions.
Protect from direct sunlight to prevent fading or material hardening.
Warranty Information
Most suppliers offer 3 to 6 months warranty against manufacturing defects.
Does not cover damage from misuse, improper installation, or accidents.
Do Not Modify the Structure
Never drill, cut, or weld on the steering wheel — compromises structural integrity and safety.
