DZ95259531502
Shacman
| Parameter | Specification |
|---|---|

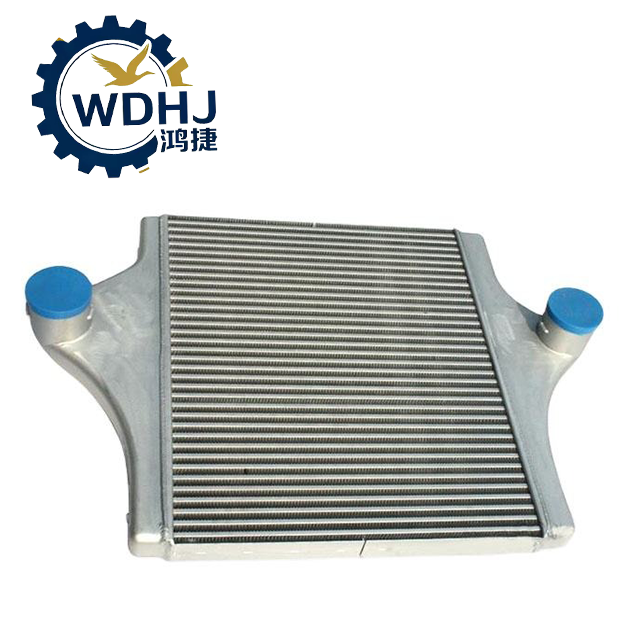

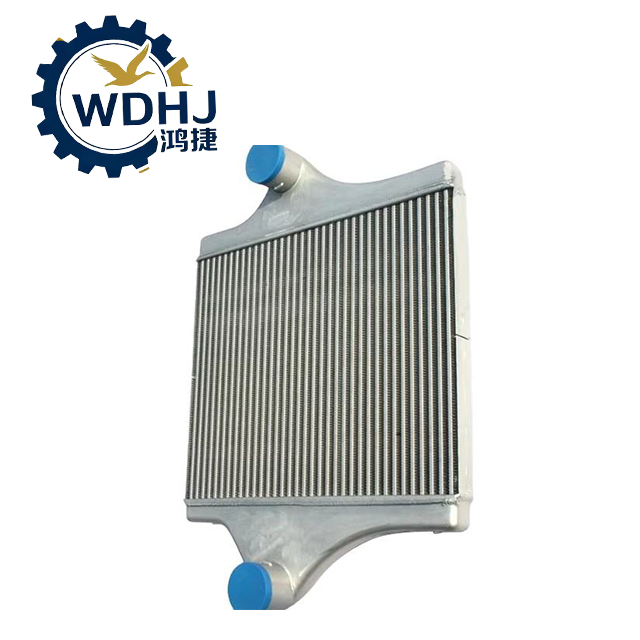

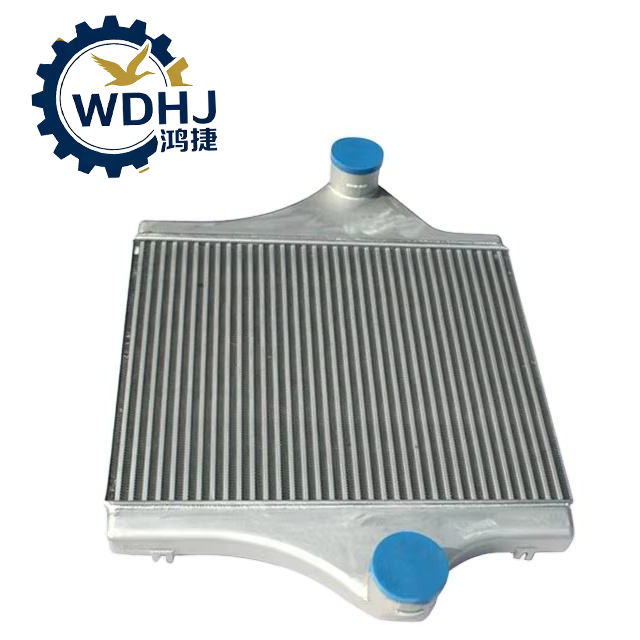

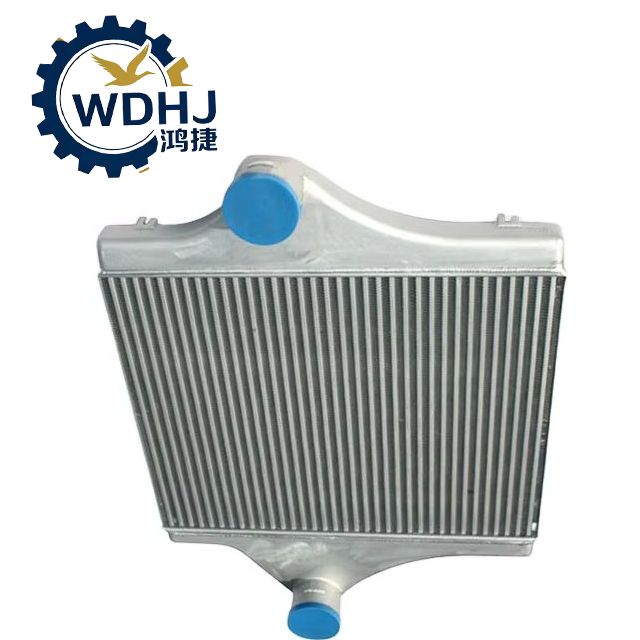

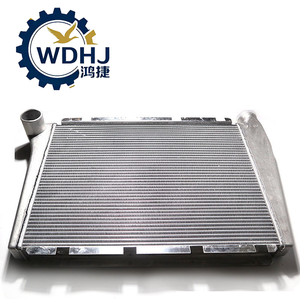

| Part Name | Intercooler Assembly / CAC |
| OEM Number | DZ95259531502 |
| Alternative OEM Numbers | DZ95259531501, SZ953000833, 1000039989 |
| Construction | All-aluminum, vacuum-brazed plate-fin or tube-fin core with cast aluminum end tanks |
| Core Material | 3003/3004 Aluminum alloy fins and tubes |
| Tank Material | A356 Aluminum casting |
| Mounting Style | Front-end mounted, bolted to radiator support frame |
| Inlet/Outlet Diameter | Typically Ø60–76 mm (2.36"–3") flexible hose connections |
| Connection Type | Flanged or spigot ends for silicone hose clamping |
| Dimensions (Approx.) | • Width: ~750–800 mm • Height: ~280–320 mm • Depth (Core Thickness): ~75–90 mm (Exact dimensions match original SHACMAN chassis layout) |
| Weight (Net) | ~8–10 kg (17.6–22 lbs) |
| Operating Pressure | Designed for up to 3.5 bar (50 psi) boost pressure |
| Thermal Efficiency | ≥75% heat transfer efficiency under standard airflow conditions |
| Airflow Direction | Horizontal flow (side-to-side) or vertical depending on model variant |
|
|
|
SHACMAN Full Series Charge Air Cooler (Intercooler) Specification Table
| Part Number | Part Name | Applicable Models | Specification |
|---|---|---|---|
| DZ93259530001 | Charge Air Cooler Assembly | Delong F3000, Old M3000, Aolong, Weichai WP10 336/375HP engines | Aluminum plate-fin structure, core size 680×520mm, standard cooling capacity, universal for standard-load tractors and dump trucks, Euro III/Euro IV compatible |
| DZ93259530002 | Reinforced Heavy-Duty Intercooler | Delong F3000 heavy muck dump trucks, high-load construction models | Thickened high-density heat dissipation belt, reinforced aluminum frame, improved cooling efficiency, dedicated for long-term heavy-load working conditions |
| DZ97259530001 | Charge Air Cooler Assembly | Delong X3000, Weichai WP12/WP13 430/500HP long-haul tractors | Enlarged cooling core 760×560mm, matched with Hande 485 lightweight axle, original standard part for Euro V long-distance tractors and cold chain vehicles |
| DZ96259530001 | Lightweight Charge Air Cooler | New M3000, M3000S, L3000, Weichai WP7/WP8 lightweight engines | Compact small-size core, low wind resistance design, dedicated for 7.5T narrow-body chassis and urban green logistics vehicles |
| DZ97149530001 | X5000 Euro VI High-Efficiency Intercooler | Delong X5000, WP13 500/550HP Euro VI high-horsepower tractors | Extra-large heat dissipation area, low internal resistance structure, meets Euro VI emission cooling requirements, suitable for high-power long-haul transportation |
| HD90129530001 | Mining Heavy-Duty Charge Air Cooler | 35-ton 425 wide-body mining dump trucks, heavy engineering construction vehicles | Thickened impact-resistant aluminum shell, reinforced anti-collision frame, high temperature resistance, adapted to harsh dusty mining sites |
| DZ9L149530001 | X6000 Flagship High-Efficiency Intercooler | Delong X6000 WP13 Euro VI diesel / gas flagship tractors | Premium low-resistance plate-fin structure, optimized airflow design, flagship configuration for high-end long-distance luxury tractors |
| BZ13030501 | Xuande Series Charge Air Cooler | Shacman Xuande X6, X9 Yuchai engine short-haul muck and engineering vehicles | Standard aluminum structure, dedicated fit for Xuande series chassis, universal for Euro V/Euro VI Yuchai power models |
| DZ91009530001 | Conventional Intercooler Assembly | Old Aolong F2000, WD615 two-valve old platform trucks | Small-size traditional structure, only for maintenance and replacement of obsolete old models |
