| Quantity: | |
|---|---|
DZ97259535084
Shacman
| Attribute | Details |
|---|---|

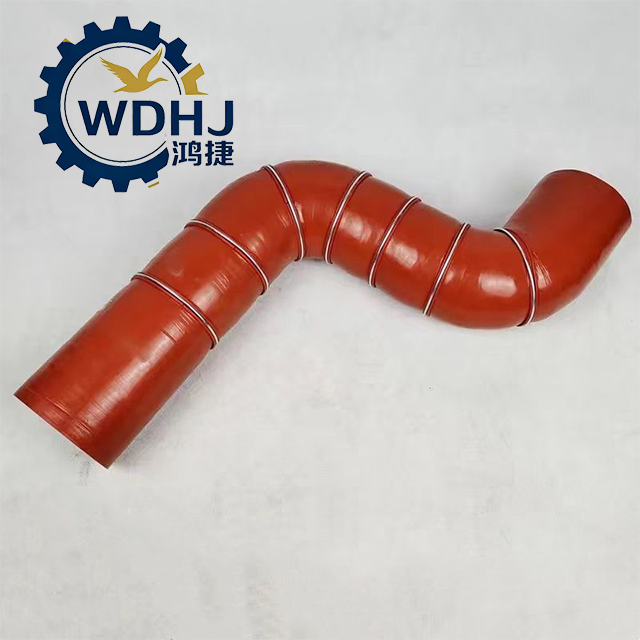

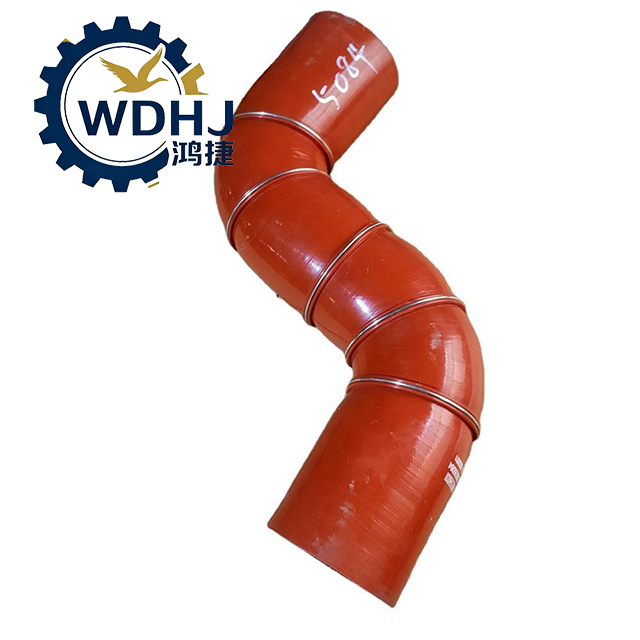

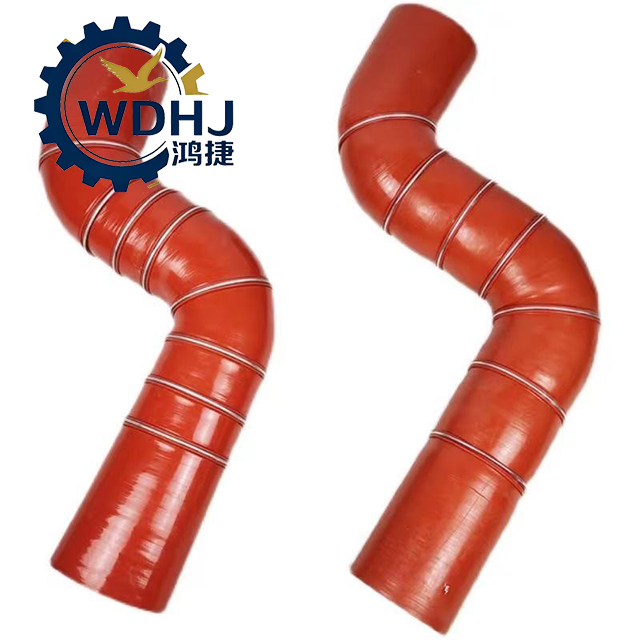

| Product Name | Intercooler Outlet Silicone Hose / Intake Manifold Connection Hose |

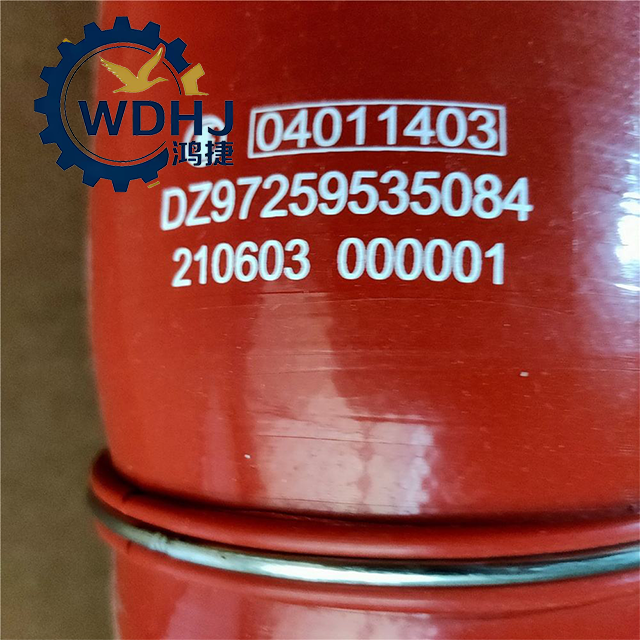

| OE Part Number | DZ97259535084 |
| Brand Compatibility | SHACMAN / Shaanxi Automobile (Delong Series) |
| Engine Compatibility | Weichai (WP12, WP13) Euro V / Euro VI High-Power Engines |
| Applicable Vehicles | X3000, X5000, X6000, New M3000, M3000S, H3000 |
| Vehicle Type | Tractor Head, Dump Truck, Cargo Truck |
| System Function | Connects Intercooler Outlet to Engine Intake Manifold |
| Material | High-Grade Silicone (VMQ) + Aramid Fiber Reinforcement |
| Reinforcement Layers | 4-6 Layers of High-Modulus Polyester or Aramid Fabric |
| Structure | Corrugated / Bellows Design (for flexibility and vibration absorption) |
| Inner Wall | Anti-Oil Mist Coating (Resists corrosion from crankcase ventilation) |
| Key Benefit | Prevents Boost Pressure Leak, Protects Intercooler Welds |
| Parameter | Specification |
|---|---|
| Rated Working Pressure | ≥ 0.25 MPa (Standard) / ≥ 0.4 MPa (High Performance) |
| Peak Pulse Pressure | ≥ 0.6 MPa |
| Burst Pressure | ≥ 0.9 MPa (Standard) / ≥ 1.2 MPa (Instantaneous) |
| Operating Temperature | -50°C to +220°C (Continuous) |
| Material Composition | Methyl Vinyl Silicone Rubber (VMQ) |
| Reinforcement | 4-6 Layers of Aramid Fiber (High Strength) |
| Chemical Resistance | High resistance to Ozone, UV Aging, and Oil Mist |
| Anti-Collapse | Reinforced to prevent suction collapse during negative pressure (deceleration) |
| Noise Reduction | Dampens intake pulse noise and engine vibration |
| Dimensions | Common Inner Diameter: Φ102mm - Φ110mm (Verify specific flange size) |
Shaanxi Auto Intercooler Outlet Pipe Part Numbers
Delong F3000, Older M3000, Aolong (WP10/WD615)
Stainless steel rigid intercooler outlet pipe DZ95259534037; universal fit for F3000 WP10 series (tractor units and dump trucks);
Molded silicone intercooler outlet elbow DZ93259535402; flexible hose connecting the turbocharger to the engine intake manifold;
Older Aolong F2000/F2000-style intercooler outlet hose DZ9114530780; outlet hose specifically for 2-valve WD615 engines;
Heavy-duty, thickened 4-layer steel-reinforced silicone outlet hose for mining operations (DZ93259535504); high-temperature resistant, resistant to bulging and cracking.
Delong X3000 (WP12/WP13 National V long-haul tractor models)
Stainless steel intercooler outlet pipe DZ96259534049; OEM-standard rigid metal outlet elbow;
WP12 standard silicone intercooler outlet hose DZ95259530613; standard outlet hose for 430 hp standard-load tractor units;
WP13 high-horsepower wide-bore silicone outlet hose DZ97259530507; double-layer aramid high-temperature resistant boost hose;
X3000 National VI new-model stainless steel rigid outlet pipe DZ97259534014; compatible with 500/550 hp high-horsepower models. New M3000, M3000S, and L3000 Lightweight 7.5T Models (WP7/WP8)
New M3000 OEM intercooler outlet silicone hose (DZ96259535041): outlet elbow designed specifically for lightweight, narrow-frame chassis;
M3000S improved intercooler outlet hose (DZ96259535064): small-diameter molded silicone hose assembly;
L3000 "Green Channel" (fresh produce transport) model short intercooler outlet hose (DZ95259535815): short hose designed for compact chassis;
Lightweight stainless steel transition outlet pipe (SZ953001236): rigid metal pipe designed for use with a matching silicone hose set.
Delong X5000 and X6000 High-Horsepower National VI Models (WP13 National VI Diesel/Gas)
X5000 universal heavy-duty (enlarged) intercooler outlet silicone hose (DZ97259535907): interchangeable with X3000 high-horsepower models;
X5000 stainless steel intercooler outlet rigid pipe (DZ97259534015): large-bore metal pipe for National VI emissions compliance;
X6000 flagship extended curved intercooler outlet silicone hose (DZ91259535201): outlet hose designed specifically for WP13NG gas-powered models.
425 Wide-Body Heavy-Duty Mining Dump Truck Models
Mining truck heavy-duty intercooler outlet silicone hose with 5-layer steel wire reinforcement (HD90129535042): resistant to gravel abrasion, vibration, and high pressure;
Mining truck heavy-duty stainless steel intercooler outlet pipe (HD90129534046): high-flow boost pipe designed for heavy-duty construction site conditions. Xi'an Cummins ISM11 Export Version (X3000)
Cummins engine intercooler outlet metal pipe (3905639); rigid outlet pipe for ISM11-powered vehicles destined for export markets;
Compatible flexible silicone outlet hose (4974660X); resistant to acidic/alkaline coolants and high-temperature, high-boost environments.
Shaanxi Auto Xuande X6/X9 (Yuchai Engine)
Xuande-specific silicone intercooler outlet hose (BZ11191455); universal outlet hose for the full range of Xuande short-haul construction vehicles (China V / China VI);
Xuande stainless steel rigid intercooler outlet pipe (BZ13030506); designed for use with the silicone outlet hose as a complete replacement/repair set.
Distinction Guide
Intercooler outlet pipes fall into two categories: welded stainless steel rigid pipes (DZ/HD/SZ/BZ metal bent pipes; fixed, structural piping) and multi-layer fabric-reinforced silicone outlet hoses (for vibration damping and flexible connection in high-temperature, high-boost lines). Prefixes indicate application: DZ for the Delong series, HD for 425 mining models, and BZ for Xuande Yuchai models. For mining operations and tropical export markets, 5-layer wire-reinforced silicone outlet hoses with fluorocarbon liners are recommended to ensure burst resistance and durability against high-temperature aging.
