| Quantity: | |
|---|---|
DZ93259530016
Shacman
| Attribute | Details |
|---|---|

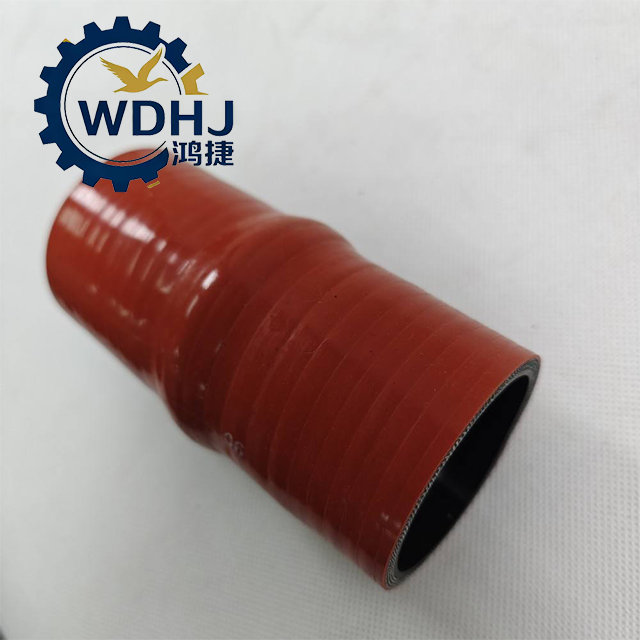

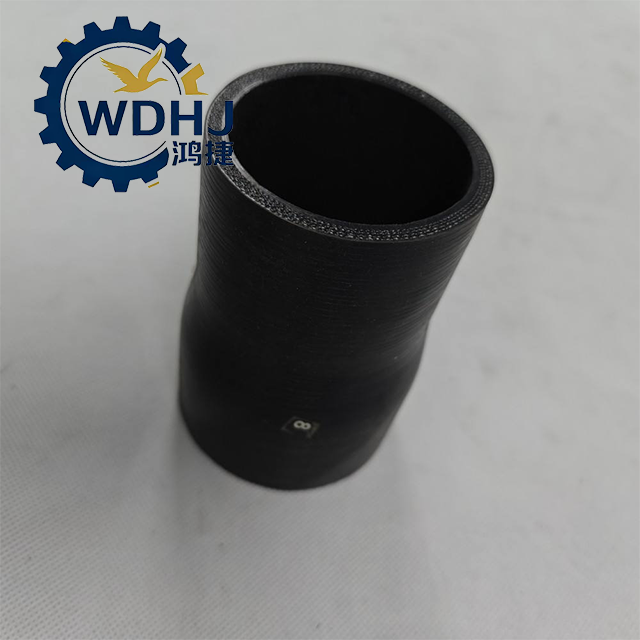

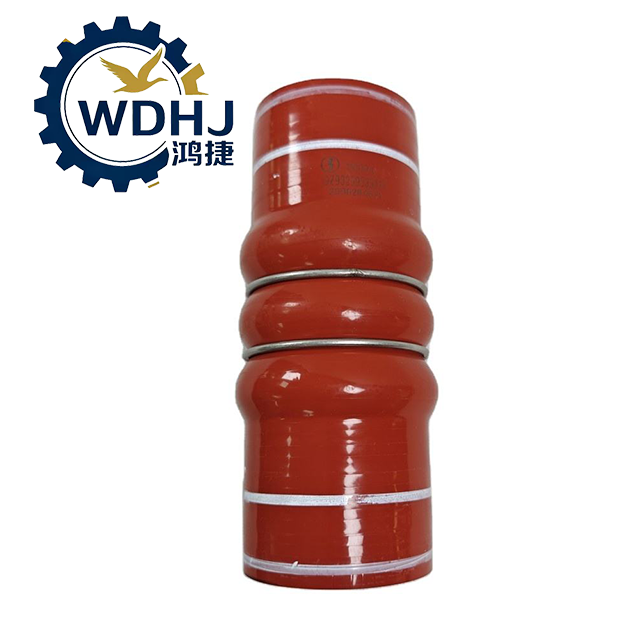

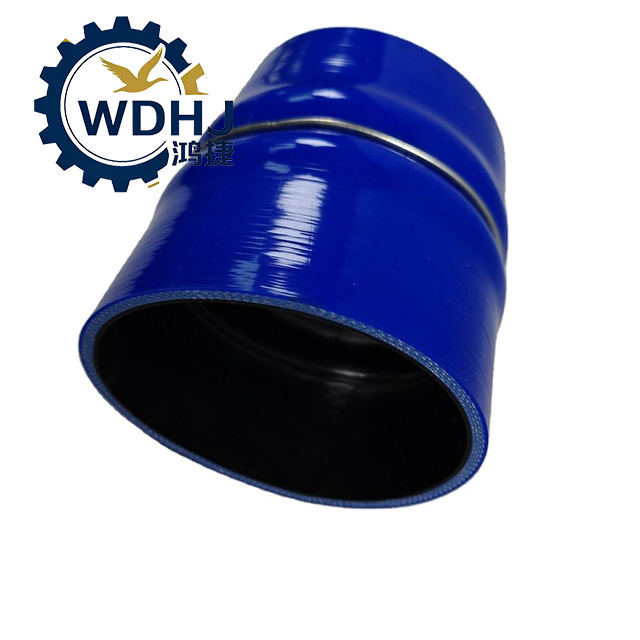

| Product Name | Intercooler Intake Hose / Turbocharger Connection Hose |
| OE Part Number | DZ93259530016 |
| Brand Compatibility | SHACMAN / Shaanxi Automobile (Delong Series) |
| Engine Compatibility | Weichai (WP10, WP12, WP13 Blue Power Series) |
| Applicable Vehicles | F3000, M3000, X3000, F2000 |
| Vehicle Type | Dump Truck, Tractor Head, Cargo Truck |
| System Function | Connects Turbocharger Outlet to Intercooler Inlet |
| Material | High-Performance Silicone (VMQ) + Aramid Fiber Reinforcement |
| Layer Structure | 4-5 Layers Reinforced Silicone |
| Key Feature | High Temperature Resistance, Oil Mist Resistance, Vibration Damping |
| Warranty Period | Typically 6 Months (Aftermarket Standard) |
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +250°C (Extreme Environment Capability) |
| Rated Working Pressure | ≥ 0.3 MPa |
| Burst Pressure | ≥ 0.9 MPa |
| Inner Diameter (ID) | Approx. Φ110mm (Verify specific batch/flange size) |
| Wall Thickness | Reinforced Thick Wall (Standard Heavy Duty) |
| Length | Standard Configuration (Match OEM Dimensions) |
| Reinforcement | Aramid Fiber Cloth (High Tear Resistance) |
| Inner Lining | Special Oil-Resistant Treatment (Prevents Swelling/Corrosion) |
| Chemical Resistance | Resistant to Ozone, Aging, and Engine Oil Mist |
| Vibration Damping | Flexible design to absorb engine movement |
1. Delong F3000, older M3000, Aolong (WP10/WD615)
Intercooler intake straight reducer silicone hose DZ93259535410 (universal standard type for turbo-to-intercooler connection);
Intercooler outlet molded elbow silicone hose DZ93259535402 (fits 336/375 HP WP10 tractor and dump trucks);
Radiator outlet thickened 4-ply steel-wire reinforced silicone hose DZ93259535802 (high-temperature and bulge-resistant for mining operations);
Older Aolong F2000 intercooler silicone hose DZ93259535503 (specific to 2-valve WD615 engines);
Heater inlet/outlet molded silicone hose DZ91009535008 (flexible hose for cab heating system).
2. Delong X3000 (WP12/WP13 National V long-haul tractor – best-selling model)
Intercooler reducer straight silicone hose DZ97259535907 (universal boost hose for X3000 and X5000);
Turbo intake elbow silicone hose DZ96259535064 (high-temperature resistant boost hose with 4-ply aramid fiber reinforcement);
Radiator upper inlet silicone hose DZ97149535025 (standard cooling water hose for high-horsepower WP13 engines);
Radiator lower outlet silicone hose DZ97259535056 (dual-layer high-pressure resistant silicone material);
Intercooler outlet molded elbow silicone hose DZ96259535032 (specific to 430 HP WP12 dump trucks). 3. New M3000, M3000S, and L3000 lightweight 7.5T models (WP7/WP8)
Straight silicone hose for turbocharger/intercooler (DZ93259535303): Universal straight intercooler hose for the entire M3000 lightweight series;
Elbow silicone hose for intercooler outlet (DZ96259535041): Small-diameter molded hose designed for narrow-frame vehicles;
Short silicone hose for radiator water outlet (DZ96259535017): Standard equipment for L3000 "Green Channel" (fresh produce transport) light trucks;
Small silicone hose for engine degassing (DZ98149535009): Thin silicone hose for the cooling system venting circuit;
Molded elbow silicone hose for heater inlet (DZ15221840116): Dedicated hose for the cab heating system.
4. Delong X5000 and X6000 high-horsepower National VI models (WP13 National VI)
Enlarged silicone hose for X5000 intercooler/turbocharger (DZ97259535907): Universal reducer hose shared with the X3000;
High-flow silicone hose for radiator bottom outlet (DZ97149535020): National VI specification, dual-layer silicone with fluororubber inner lining;
Extended elbow silicone hose for X6000 flagship intercooler (DZ91259535201): Universal fit for WP13 gas and diesel engines;
Silicone bellows hose for engine upper exhaust/venting (1006416613): High-temperature resistant hose for crankcase ventilation. 5. 425 Wide-body Heavy-duty Mining Dump Truck
Thickened, heavy-duty, variable-diameter silicone charge air cooler (CAC) hose (HD90129535042) for mining trucks; features five-layer steel wire reinforcement for shock resistance and durability.
Large-bore silicone radiator outlet hose (HD90129535041); resistant to cracking in harsh, muddy, and abrasive job-site conditions.
Silicone turbo intake elbow hose (DZ91259535603) for mining trucks; enlarged bore designed for heavy-duty forced induction systems.
6. Xi'an Cummins ISM11 Export Model (X3000)
Cummins-specific silicone charge air intake hose (4974660X); designed for the boost piping of export-market models.
Silicone radiator inlet/outlet hose with fluororubber lining (DZ93259535302); resistant to corrosion from acidic or alkaline coolants.
7. Shacman Xuande X6/X9 (Yuchai Engine)
Xuande silicone charge air cooler (CAC) boost hose (BZ13030504); compatible with the full range of Yuchai National V and National VI engines.
Molded silicone radiator coolant hose (BZ13030505); designed for short-haul construction muck trucks.
