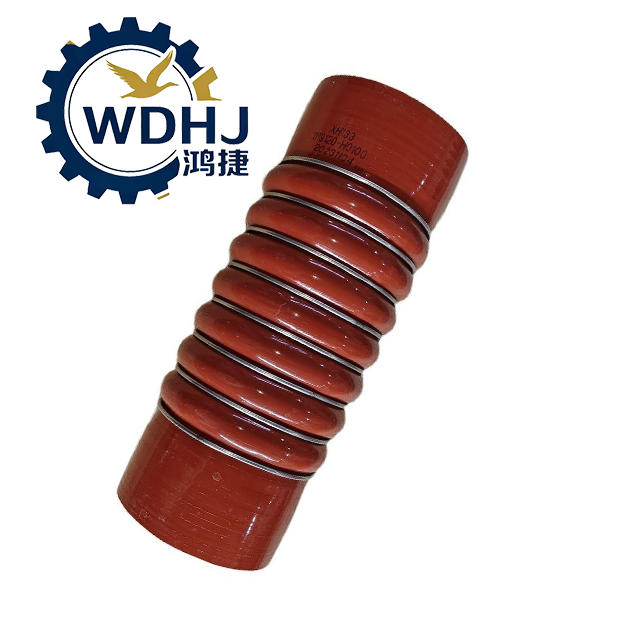

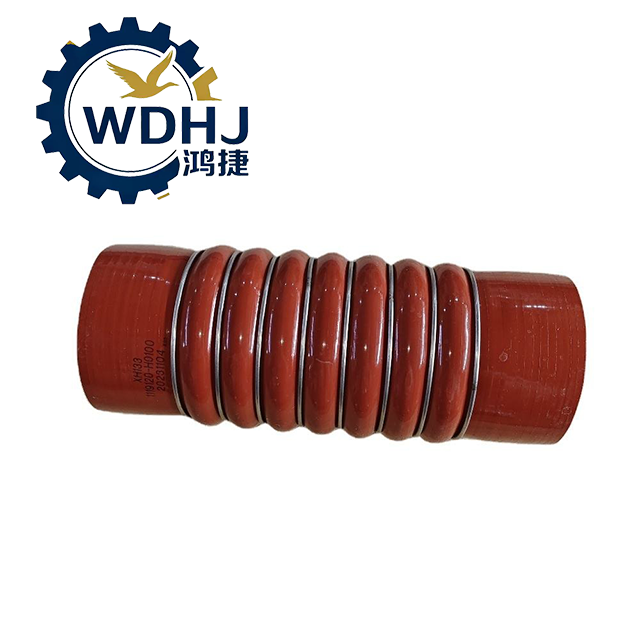

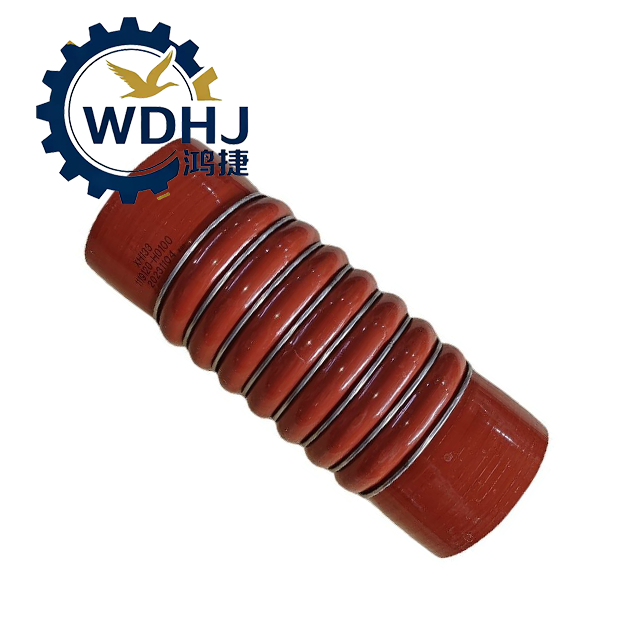

Dongfeng Tianlong Flagship Air Intake Hose-intercooler 1119120-H0100 Dongfeng 530

The 1119120-H0100 Intercooler Air Inlet Hose Assembly is a high-performance duct designed to connect the turbocharger outlet to the intercooler inlet in the intake air system of Dongfeng heavy-duty commercial vehicles. As a key component in the engine’s forced induction circuit, it ensures efficient delivery of pressurized, high-temperature air from the turbocharger to the intercooler for cooling before entering the combustion chamber.

Engineered to withstand extreme thermal cycling, pulsating pressure loads, and constant engine vibration, this hose assembly is available in two primary configurations: reinforced silicone rubber or steel pipe with heat shielding, depending on vehicle specification and model year. Used primarily on Dongfeng Kinland KX/GX series and other long-haul 6x4 tractor units equipped with Cummins or Dongfeng Dragon Engine platforms, it plays a vital role in maintaining optimal engine performance, fuel efficiency, and emissions compliance under full-load operation.

Quantity:
Availability:





Inquire Add to Basket

Model:
1119120-H0100
Brand:
Dongfeng

Product Description

Attribute	Description
Part Number (OE)	1119120-H0100
Product Name	Intercooler Air Inlet Hose Assembly (also known as Turbo-to-Intercooler Pipe)
Common Names	Charge Air Duct, Boost Tube, Intake Connecting Pipe
Application Type	Heavy-Duty Diesel Truck – Turbocharged & Intercooled Engine System
Vehicle Brand	Dongfeng Commercial Vehicle (DFCV)
Compatible Models	Dongfeng Kinland KX, GX, Qihang Edition, DFH4180 Series
Engine Compatibility	Cummins ISZ / ISGe, Dongfeng Dragon Engine (DDi75/11E)
Material Options	Reinforced Silicone Rubber or Steel Pipe with Thermal Insulation Coating
Connection Type	Flanged or molded ends with Oetiker clamps or bolted V-band clamps
Operating Environment	High temperature (up to 230°C), high pressure (up to 3.5 bar boost)
Design Standard	Meets DFCV OE specifications; compliant with SAE J2260 and GB/T standards

Parameter	Specification
Temperature Resistance	-40°C to +230°C (peak short-term up to 260°C)
Pressure Rating	Withstands continuous boost pressure up to 3.5 bar (50 psi), burst tested >8 bar
Hose Material (Rubber Type)	4-ply reinforced silicone with embedded spiral wire (anti-collapse)
Pipe Material (Steel Type)	Carbon steel with anti-rust coating or aluminized finish
Internal Diameter	Typically Φ60–Φ75 mm (varies by engine airflow requirement)
Length (Approx.)	400–600 mm (custom-molded to fit engine bay layout)
Sealing Method	Dual Oetiker ear clamps or V-band flange clamps at both ends
Vibration Resistance	Designed for 500+ hours on vibration test bench (ISO 16750-3)
Service Life (Normal Use)	80,000 – 120,000 km (depends on material type and operating conditions)
