Bus Parts - Cooling Systems - Bus Attachment Intercooler Assembly 1119-00406

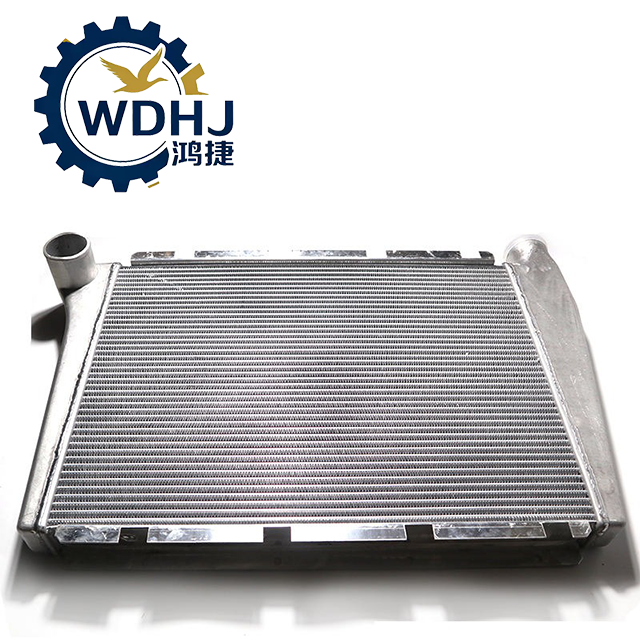

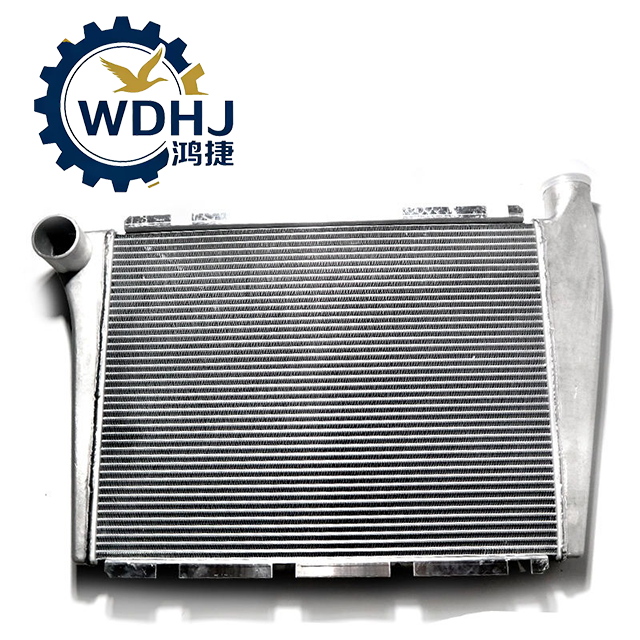

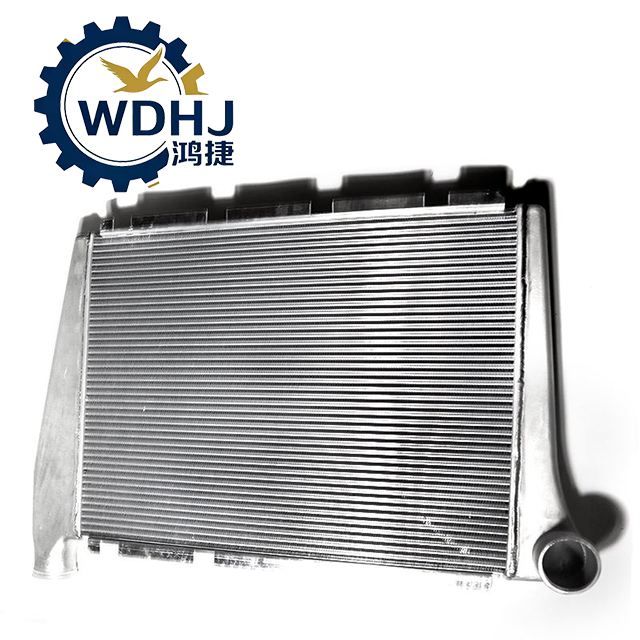

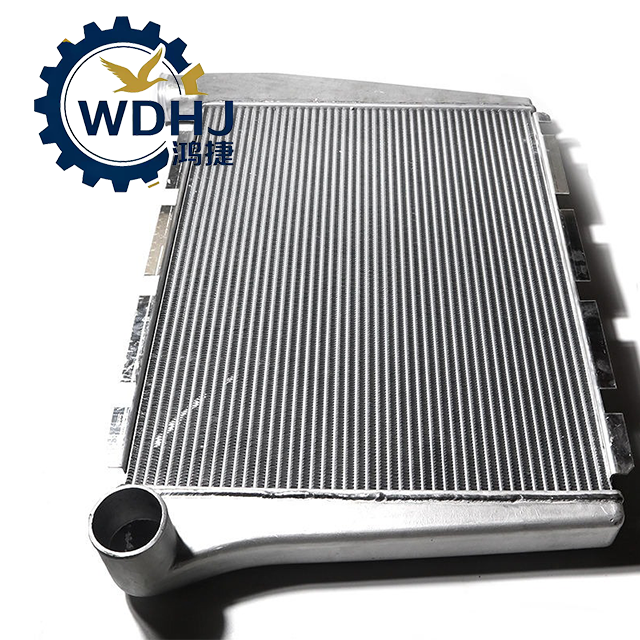

The 1119-00406 Engine Intercooler Assembly is an original equipment (OE) air-to-air charge air cooler specifically designed for Yutong ZK series luxury and long-haul coaches, including models such as the ZK6122H, ZK6127HB, and ZK6119. As a core component of the engine’s forced induction system, it plays a vital role in meeting Euro V and Euro VI emissions standards by cooling compressed intake air from the turbocharger—increasing air density, improving combustion efficiency, and reducing nitrogen oxide (NOx) emissions.

Constructed from high-grade vacuum-brazed aluminum alloy, this intercooler features a tube-and-fin core design optimized for maximum heat transfer efficiency while maintaining low pressure drop across the intake path. It effectively reduces post-turbo air temperature from over 150°C down to approximately 50°C, significantly enhancing engine power output and fuel economy.

Quantity:
Availability:





Inquire Add to Basket

Model:
1119-00406
Brand:
Yutong Bus Parts

Product Description

Attribute	Description
Part Number (OE)	1119-00406
Product Name	Engine Intercooler Assembly / Charge Air Cooler
Common Names	Turbo Intercooler, Front-Mount Intercooler (FMIC), Air-to-Air Heat Exchanger
Application Vehicle	Heavy-Duty Passenger Coaches / Luxury Tour Buses
Primary Brand	Yutong Bus (ZK Series)
Engine Compatibility	Cummins ISLe8.9, ISB, ISD; Weichai WP10 Series
Core Material	Vacuum-brazed aluminum alloy (3003/4343 clad)
End Tank Material	Reinforced die-cast aluminum
Core Type	Tube-and-Fin (high-efficiency airflow design)
Inlet/Outlet Diameter	~100 mm – 110 mm (large-bore for high-flow applications)
Mounting Style	Bolt-on with rubber isolation mounts
Design Standard	Meets GB/T 23335, ISO 18451, and Yutong OE specifications

Parameter	Specification
Heat Transfer Efficiency	Reduces intake air temp from >150°C to ~50°C
Maximum Operating Pressure	0.3 MPa (3.0 bar) — no deformation under full boost
Burst Pressure Rating	>0.5 MPa
Pressure Drop (Clean Core)	<2.5 kPa at rated flow rate
Weight Range	15 kg – 22 kg
Dimensions (Approx.)	Varies by model; typically 700–850 mm (L) × 550–650 mm (W)
Operating Temperature Range	-40°C to +180°C (peak transient)
Service Life	6–10 years under normal operation
