6105110-A01
FAW
| Attribute | Description |
|---|---|

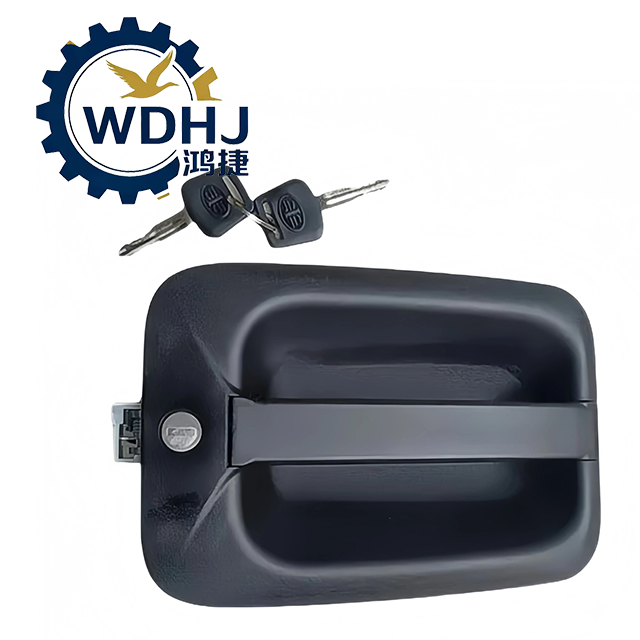

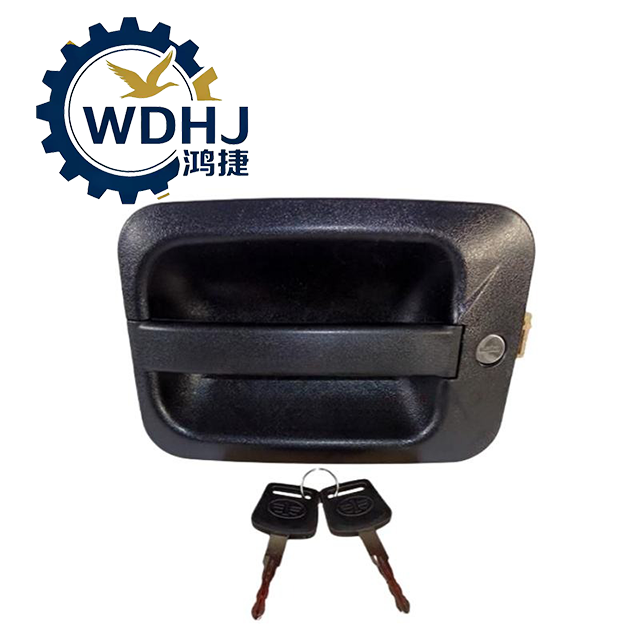

| Product Name | Right Front Outer Door Handle Assembly / Passenger-Side Door Handle with Lock |
| OE Part Number | 6105110-A01 |
| Position | Right front (passenger side) cab door |
| Function | External door opening mechanism with mechanical key lock |
| Handle Type | Pull-lever style, cable-actuated |
| Parameter | Specification |
|---|---|
| Housing Material | High-strength ABS or PC+ABS polymer — UV stabilized and anti-aging treated |
| Internal Structure | Zinc-coated steel levers and mounting plates for corrosion resistance |
| Lock Cylinder | Mechanical key tumbler included; supports manual locking/unlocking |
| Operating Mechanism | Cable or rigid rod connection to inner door lock body (e.g., 6105020E109) |
| Weight | Approx. 0.4 – 0.6 kg |
| Temperature Range | -40°C to +85°C — impact-resistant even in severe cold |
| Durability | Rated for over 100,000 open/close cycles |
| Safety Compliance | Meets GB standards for mechanical reliability and theft protection |
| Mounting Interface | Standard bolt pattern compatible with FAW J-series cab doors |
