FAW TRUCK SPARE PARTS 8404029-363 REAR WHEEL FENDER MUDGUARD for FAW USE Rear fender (rear section) / Rear mudguard assembly

FAW TRUCK SPARE PARTS 8404029-363 REAR WHEEL FENDER MUDGUARD for FAW USE Rear fender (rear section) / Rear mudguard assembly

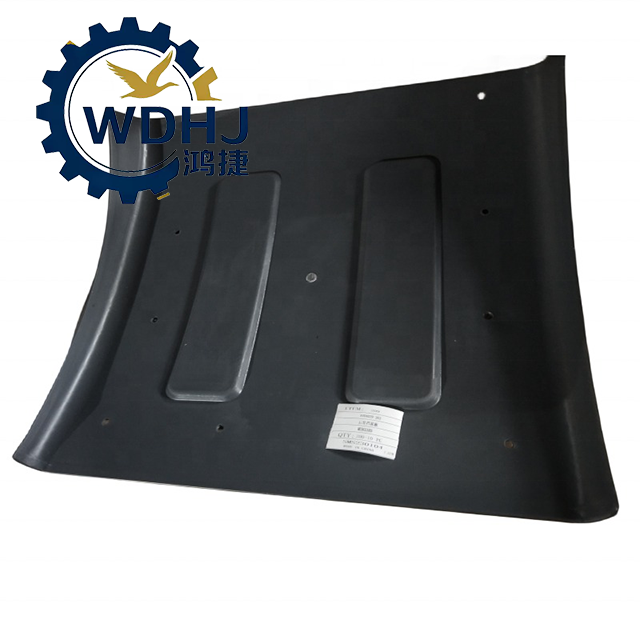

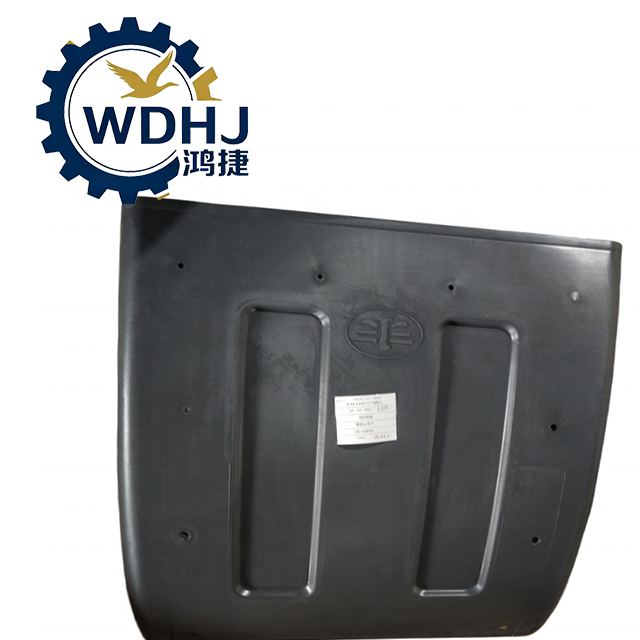

e Rear Wheel Fender with Integrated Tail Light Bracket (OE: 8404029-363 or 8404029-363/AL01) is a critical underbody protection and lighting support component designed for FAW Jiefang J6P, J7, JH6, and J6L series heavy-duty commercial trucks. Installed above the rear tires at the back of the chassis, this fender serves dual functions: it acts as a splash and debris shield to prevent mud, water, stones, and road spray from damaging following vehicles or the truck’s own electrical systems, while also providing a factory-integrated mounting platform for the rear combination tail light.

Constructed from high-density polyethylene (HDPE) or reinforced engineering plastic, this OE-grade fender delivers exceptional impact resistance, flexibility, and long-term durability — even in extreme environments such as mining zones, coastal areas, and winter-salted roads. Its arc-shaped design ensures optimal coverage behind the tire, significantly reducing spray dispersion during rainy conditions and helping operators comply with international anti-splash regulations.

Quantity:
Availability:





Inquire Add to Basket

Model:
8404029-363
Brand:
FAW

Product Description

Attribute	Description
Product Name	Rear Wheel Fender Assembly / Mudguard with Tail Light Mount
OEM Part Number	8404029-363, 8404029-363/AL01
Alternate Names	Rear Splash Guard, Tail Light Support Fender, Chassis-Mounted Mudflap Frame
Brand	FAW Jiefang (First Automotive Works)
Component Type	Truck Underbody Protection Part / Lighting Support Structure
Function	Prevents tire-generated splash + provides secure tail light mounting point
Installation Location	Above rear wheels, mounted on frame rails at rear axle position
Design Standard	OE Specification – Meets global anti-splash and road safety standards

Parameter	Details
Primary Material	High-Density Polyethylene (HDPE) or reinforced engineering plastic (PP+EPDM)
Material Properties
- Impact Resistance	Withstands high-speed stone impacts without cracking
- Flexibility	Elastic deformation under load; returns to shape after minor hits
- Low-Temperature Toughness	Stable performance down to -40°C — resists cold-induced brittleness
- Chemical Resistance	Resistant to saltwater, de-icing agents, acid rain, diesel fuel, and cleaning solvents
Structural Design	Arc-shaped profile optimized for splash containment; includes built-in bracket for tail lamp
Integrated Features
• Tail Light Mounting Holes	Pre-drilled for standard FAW rear lamps
• License Plate Cutout	In some configurations
• Lower Edge Groove	For attachment of rubber splash curtain (mud flap)
Surface Finish	Matte black finish — UV-stabilized to prevent fading
Weight (Approx.)	1.8 – 2.5 kg per unit
Mounting Method	Bolt-on using brackets welded to frame rail; secured with vibration-resistant fasteners
