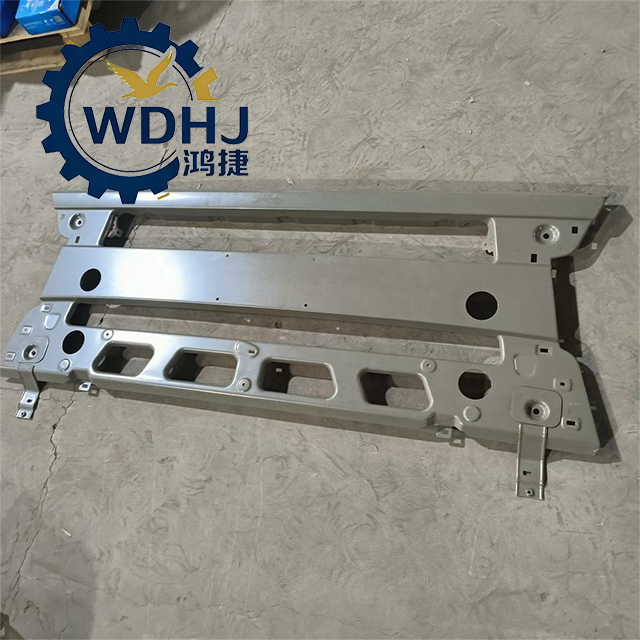

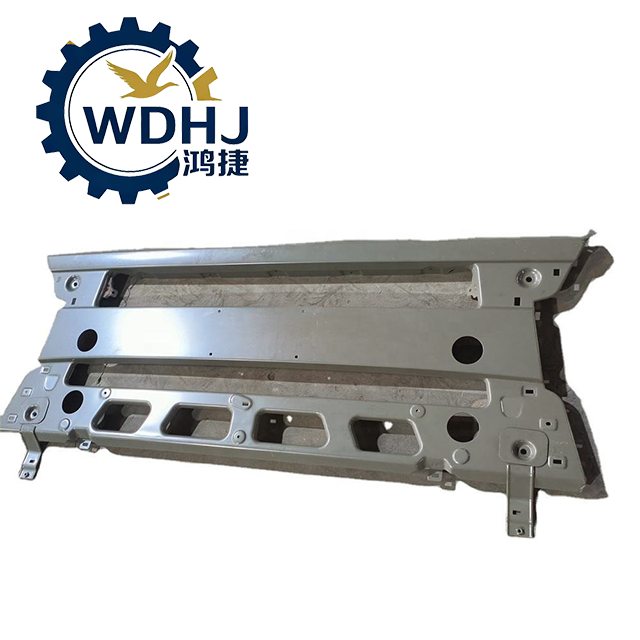

High Quality New 2803010B1063 Middle Part Bumper for FAW Trucks Hot Sale Spare Parts

The 2803010B1063 Front Bumper Center Section Assembly is a genuine OEM structural component designed for heavy-duty applications in FAW Jiefang trucks. As the central segment of a three-piece steel bumper system, this part plays a critical role in protecting the radiator, lower engine components, and chassis frame from road debris, impact damage, and off-road hazards.

Manufactured from high-strength alloy steel using precision stamping technology, this center bumper is specifically engineered for use on rugged-duty models such as dump trucks, concrete mixers, and specialized engineering vehicles. Its robust construction provides excellent crash energy absorption, while its modular design allows cost-effective repairs — only the damaged section needs replacement after localized impact.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • 2803010B1063

  • FAW

Attribute Description
Product Name Front Bumper Center Section / Middle Bumper Panel
OE Part Number 2803010B1063 or 2803010-B1063
Position Central section of front bumper (middle segment)
Material High-tensile cold-rolled alloy steel, 3–4 mm thickness
Design Type One-piece stamped steel assembly – part of a 3-segment bumper system
Function Impact protection, radiator shielding, footstep platform, towing point support
Surface Finish Factory-applied gray/black e-coat primer – requires topcoat painting before installation
Application Heavy-duty commercial and off-road trucks
中段保险杠-1


中段保险杠-2


Parameter Specification
Material Thickness 3.0 – 4.0 mm high-strength steel
Forming Process Integral press-formed from single steel blank
Weight Approx. 18–22 kg (varies by reinforcement layout)
Dimensions Designed to match FAW J-series cab and chassis geometry
Mounting Interface Bolted to main frame via internal mounting brackets (e.g., 2803111 series)
Installation Type Three-section modular system:
