| Quantity: | |
|---|---|
5205010-1HB1
FAW
| Attribute | Description |
|---|---|

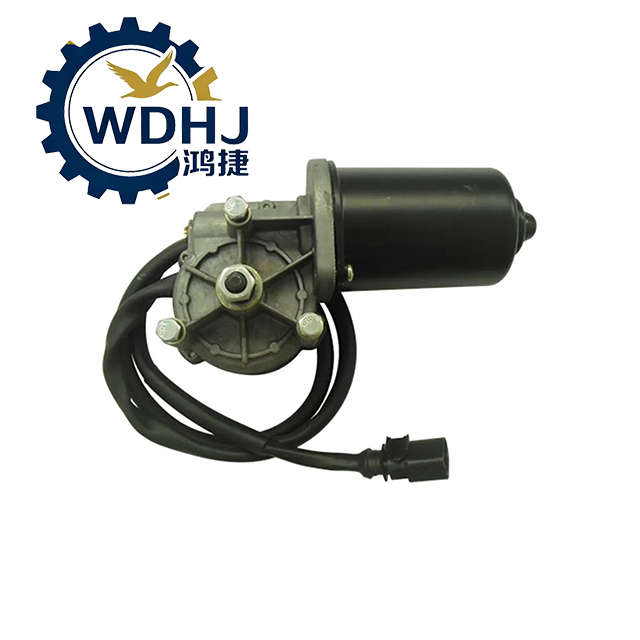

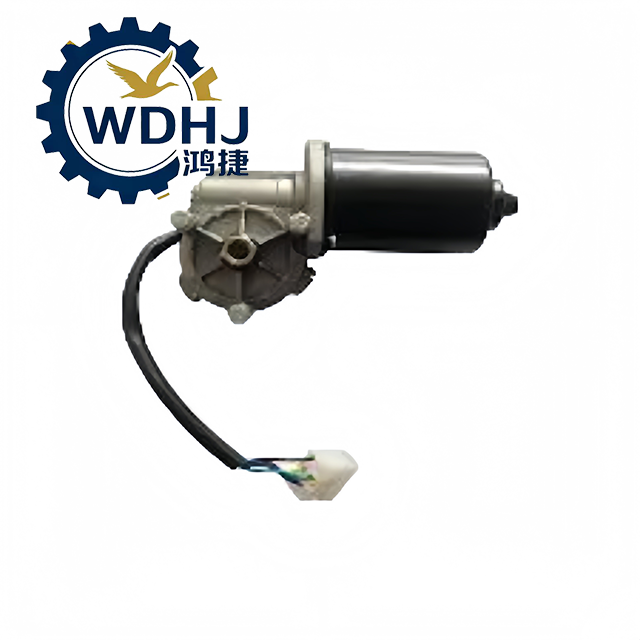

| Product Name | Windshield Wiper Motor Assembly / Wiper Motor with Bracket |
| OE Part Number | 5205010-1HB1 (also written as 52050101HB1) |
| Voltage Rating | 24V DC (standard for commercial trucks) |
| Function | Drives windshield wipers via linkage mechanism; enables low/high speed operation with auto-return feature |
| Design Type | Integrated motor + worm-gear reducer + mounting bracket |
| Core Components | DC electric motor, plastic-metal hybrid gear train, reset position sensor |
| Mounting Style | Fixed using steel bracket to firewall or cowl panel beneath windshield |
| Application | Front windshield wiper system on FAW medium/heavy-duty trucks |
Name2
| Parameter | Specification |
|---|---|
| Operating Voltage | 24V DC (nominal); compatible with 22–28V transient systems |
| Speed Modes | Dual-speed: Low speed (35 rpm), High speed (60 rpm) |
| Auto Park Function | Yes – automatically returns wipers to bottom rest position when switched off |
| Torque Output | High-torque design optimized for large wiper coverage area |
| Motor Construction | Enamel-coated copper winding, permanent magnet stator |
| Reducer Housing | Die-cast aluminum alloy with internal lubrication seal |
| Gear Material | High-strength engineering plastic gears meshed with metal worm shaft |
| Connector Type | Multi-pin plug (typically 4–5 pin), waterproof design |
| Overload Protection | Built-in PTC thermal protector prevents burnout during blockage |
| Sealing Level | IP65-rated sealing at wiring entry and output shaft |
| Weight | Approx. 2.8 – 3.2 kg |
| Mounting Interface | Pre-drilled holes and alignment tabs for precise fitment |
