| Quantity: | |
|---|---|
DZ9100130045
Shacman
| Attribute | Description |
|---|---|
| Part Number | DZ9100130045 |

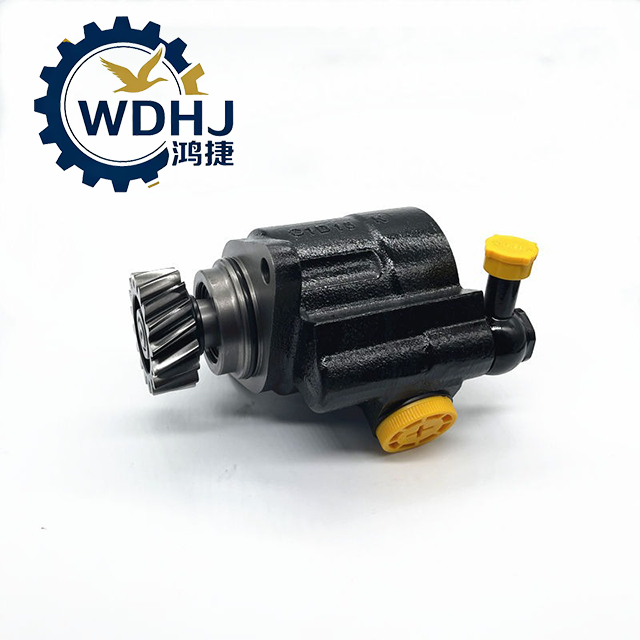

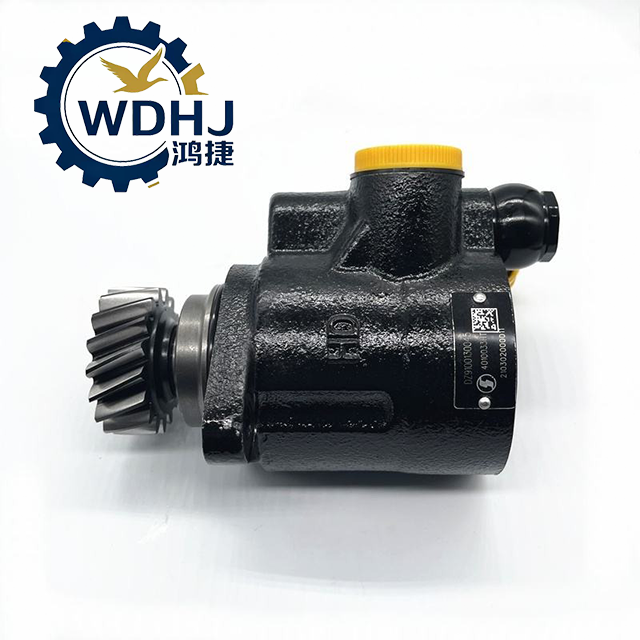

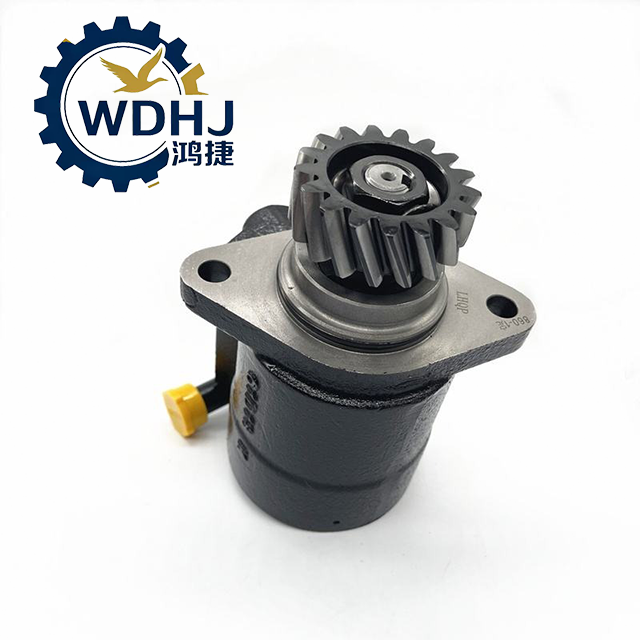

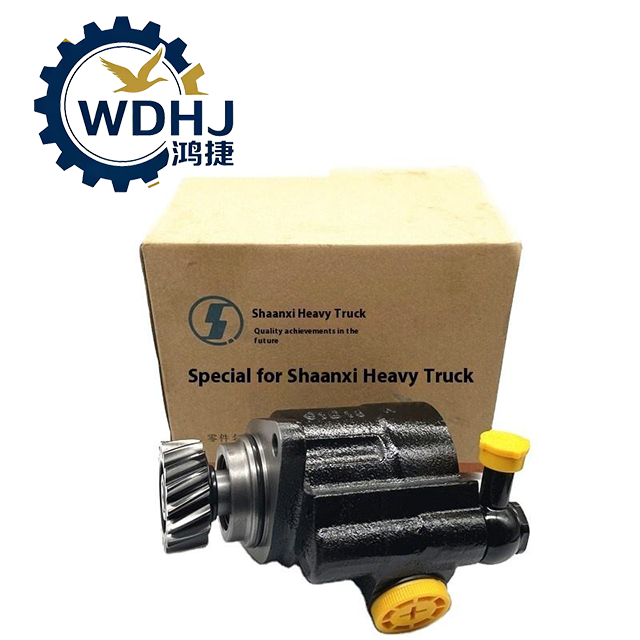

| Product Name | Hydraulic Power Steering Pump / Steering Booster Pump |
| OEM Status | Genuine SHACMAN Original Equipment Part |
| Application | Heavy-Duty Trucks – Dumpers, Tractors, Cargo Vehicles |
| Vehicle Compatibility | SHACMAN Delong F3000, M3000, F2000 Series |
| Engine Match | Primarily compatible with Weichai WP10 Engine Platform |
| Pump Type | Vane-Type or Gear-Type (depending on production batch) |
| Drive Method | Belt-driven from engine crankshaft pulley |
| Mounting Style | Bracket-mounted on engine front or side |
| Sealing Design | Dual-lip oil seal + O-ring housing seal |
| Parameter | Specification |
|---|---|
| Flow Rate | 25 Liters per Minute (L/min) |
| Displacement | ~25.0 cc/revolution |
| Rated Relief Pressure | 150 bar (≈2175 PSI) |
| Rotation Direction | Right-Hand Clockwise (RH CW) – as viewed from drive end |

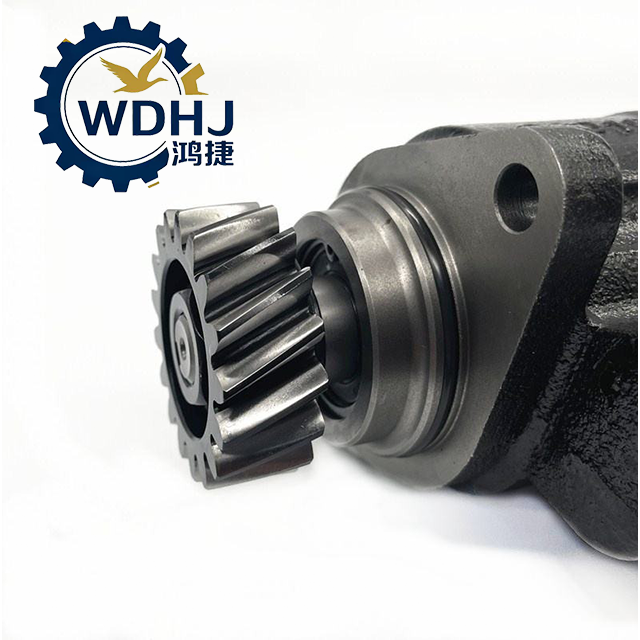

| Gear Teeth (if applicable) | 17 teeth (internal gear configuration) |
| Housing Material | High-Strength Steel or Cast Iron |
| Shaft Seal | Nitrile Rubber (NBR) or Fluoroelastomer (FKM) for oil resistance |
| Inlet Port Size | ≥ Ø20 mm (to prevent suction restriction) |
| Outlet Port Size | Standard high-pressure outlet (connects to steering gear) |
| Drive Shaft Type | Splined or keyed input shaft |
| Belt Drive Ratio | Typically 1:1.8 – 2:1 (engine RPM to pump RPM) |
| Operating Temperature | -30°C to +120°C (fluid-dependent) |
| Noise Level | < 85 dB(A) under normal operation |
| Dimensions (Approx.) | 20 x 15 x 20 cm (L × W × H) |
| Weight (Dry) | ~4.5 – 6.0 kg |
SHACMAN Full Series Heavy Truck Power Steering Pump
| OEM Part Number | Full Part Name | Applicable SHACMAN Truck Models | Specification & Technical Feature |
|---|---|---|---|
| DZ9100130011 | Power Steering Vane Pump (Weichai WP10 Engine) | Delong F2000 / F3000 / New M3000 / Aolong Full Series | Displacement 16mL/r, working pressure 14MPa, flow rate 16L/min, Weichai WP10/WD615 engine matching, Qinchuan brand original |
| DZ9100130028 | Power Steering Vane Pump Assembly | Delong F2000 / F3000 / Aolong Classic Cargo Truck | 2-hole mounting, control flow 25L/min, control pressure 21MPa, Dalian Huiyuan brand, standard logistics vehicle |
| DZ9100130026 | Hydraulic Steering Oil Pump | Delong F3000 / New M3000 / X3000 / X6000 Heavy Truck | High pressure vane pump, black anti-corrosion coating, universal replacement for F/M/X series, OEM original specification |
| DZ9100130027 | Steering Booster Pump (ZYB-1320R/144-5) | Delong F2000 / Aolong Old Generation | ZYB series vane pump, right rotation, 13mL/r displacement, 14MPa pressure, light-medium load chassis matching |
| DZ95319470500 | Engine Driven Power Steering Pump | Delong New M3000 / M3000S Tractor Truck | Reinforced aluminum alloy body, integrated mounting bracket, 6×4 tractor special, stable output at high engine speed |
| DZ96189470903 | Steering Booster Vane Pump | Delong F3000 / X3000 / New M3000 Heavy Dump Truck | Thickened pump housing, double oil seal structure, mining dump truck heavy load dedicated, anti-leakage design |
| DZ96189470917 | Power Steering Pump (Weichai WP7 Engine) | Delong New M3000 / X5000 / L3000 Light Tractor | Matched with WP7 engine, displacement 12.5mL/r, compact lightweight design, light load highway logistics |
| DZ97189470902 | Steering Vane Pump Assembly | Delong F3000 / X3000 / New M3000 National V | Upgraded wear-resistant blade, low noise operation, long service life, Euro V emission standard matching |
| DZ97319470117 | Steering Hydraulic Vane Pump | Delong X3000 / X5000 / X6000 National VI Heavy Tractor | High-precision rotor, built-in pressure relief valve, cold-resistant seal, new generation long-haul heavy truck exclusive |
| DZ95259130001 | Power Steering Pump Universal Type | Delong F2000 / F3000 / M3000 / X3000 / L3000 / X6000 Full Series | Multi-model interchangeable, complete with pulley and mounting bracket, aftermarket universal replacement part |
| DZ93319130001 | Steering Oil Pump / Booster Pump | Delong F3000 Heavy Cargo Truck | Standard OEM original specification, 21MPa max pressure, 8×4 cargo chassis matching, reliable performance |
| 61500130037 | Steering Booster Pump (ZYB-1316R/26-1) | Delong F2000 / Aolong (WD615 Engine) | Nominal displacement 16ml/r, max pressure 13MPa, control flow 16L/min, inlet M26×1.5, outlet M18×1.5, Weichai WD615D engine matching |
