| Quantity: | |
|---|---|
61800061056
Shacman
| Attribute | Specification |
|---|---|
| Part Number | 61800061056 |

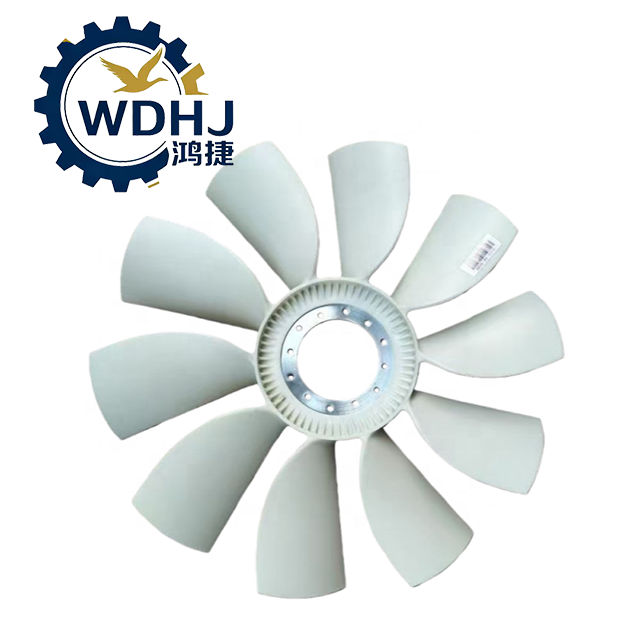

| Product Type | Engine Cooling Fan / Fan Impeller |
| Brand | Weichai / OEM (Sinotruk/Shacman Compatible) |
| Condition | New |
| Origin | China |
| Application | Heavy-Duty Trucks, Engineering Machinery |
| Material Type | Composite Engineering Plastic |
| Certification | ISO/TS 16949, OEM Standard |
| Parameter | Specification / Description |
|---|---|

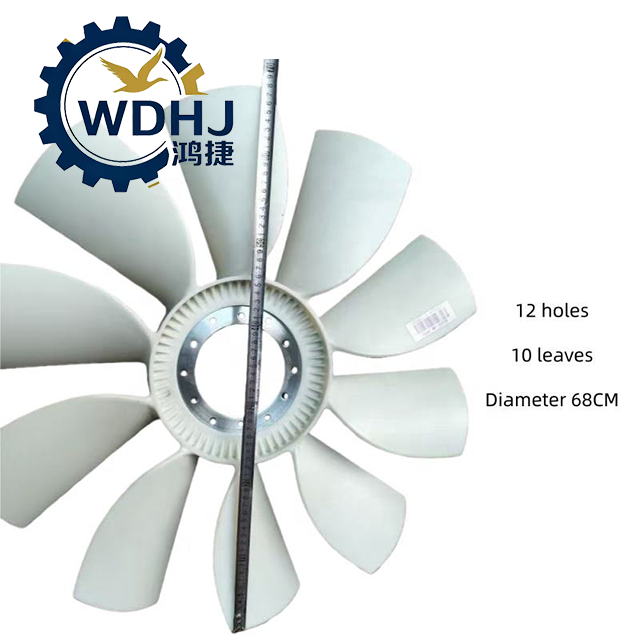

| Outer Diameter | Approx. 670mm - 680mm (Subject to actual product) |
| Blade Count | 10 Blades (Large arc twisted design for efficiency) |
| Material | High-Strength Nylon Glass Fiber Composite (PA66+GF) |
| Weight | Approx. 3.0 kg |
| Rotation Direction | Clockwise (Viewed from front to rear of vehicle) |
| Mounting Holes | 6 or 8 holes (Symmetrical distribution) |
| Design Feature | Dynamic balance optimized for low noise and vibration |
| Heat Resistance | Designed for high heat load environments (National V/VI) |
| Durability | High anti-aging performance for harsh conditions |
I. SINOTRUK HOWO Full Series Cooling Fans (Fan Blades / Fan Assemblies) – OEM Part Numbers
1. MAN MC11/MC13 Engines (HOWO T7H/TX / SITRAK C7H)
202V06600-7025 MC13 OEM fan blade; fits T7H 540/570 high-horsepower tractor units
202V06600-7056 MC11 universal 11-blade fan; standard on T7H and TX (National V/VI emission standards)
082V06601-0282 MC07 lightweight fan; fits T5G and Hohan J5G lower-horsepower models
202V06600-7069 Widened and reinforced cooling fan; specialized for high-temperature mining dump truck operations
2. Weichai WP10/WD615 Older Models (HOWO A7, 2007-model HOWO 371 HP)
VG1500060447 WD615 standard 10-blade fan; universal for older HOWO tractor units and muck trucks
VG2600060446 WP10 National III standard fan; universal for 336/375 HP HOWO models
61500060131 Old-style ring fan; for early 2-valve WD615 engines
612600062163 WP10 National IV/V improved fan; fits 2009–2015 HOWO dump trucks
3. Weichai WP12/WP13 High-Horsepower Models (New HOWO TX, N7G high-horsepower models)
612600060446 WP12 standard 11-blade fan; universal for 430/460 HP HOWO models
612630060215 WP13 Widened heavy-duty fan; designed for long-haul cold chain transport and standard-load towing
1001850006 WP13 National VI lightweight quiet fan; standard equipment on the new Howo N7G
4. Reinforced fan for wide-body mining dump trucks
612600060038 WP12 thickened dust-proof fan for mining trucks; suitable for muddy/sandy construction site conditions
II. SHACMAN full-series cooling fans (fan blades / fan assemblies) – OEM part numbers
1. Weichai WP10 engine (F3000, older M3000, Aolong)
612600060446 WP10 universal 10-blade fan; a best-seller for the Delong F3000
612600060173 Ring-type fan for older WD615 Aolong models
1002396310 WP10H National VI integrated reinforced fan; for new F3000 dump trucks
2. Weichai WP12 engine (X3000, new M3000, L3000)
612630060215 WP12 OEM 11-blade fan; standard on X3000 430hp models
612600060886 High-flow fan for heavy-duty dump trucks; ideal for high-temperature sand and gravel operations
3. Weichai WP13 high-horsepower (X3000/X5000/X6000 500/550hp)
1001546027 WP13 National V standard cooling fan
1001821629 WP13 National VI quiet, widened fan; exclusive to X5000 flagship models
4. Weichai WP7/WP8 lightweight series (L3000, new M3000S)
1000081818 WP7 compact, lightweight fan (specifically for Green Channel light-duty haulage applications)
5. Xi'an Cummins ISM11 (Export version X3000 mining truck)
DZ62066060001 Cummins engine-specific cooling fan (OEM equipment for export models)
6. Yuchai Engine (Shaanxi Auto Xuande X6/X9)
S01000-1002461 Yuchai China V fan assembly (universal fit for the entire Xuande series)
