Shacman Howo Truck Parts Pneumatic Cylinder Piston And Kits for Weichai Engine Spare Parts Cylinder Piston Kit 612600030034A

Shacman Howo Truck Parts Pneumatic Cylinder Piston And Kits for Weichai Engine Spare Parts Cylinder Piston Kit 612600030034A

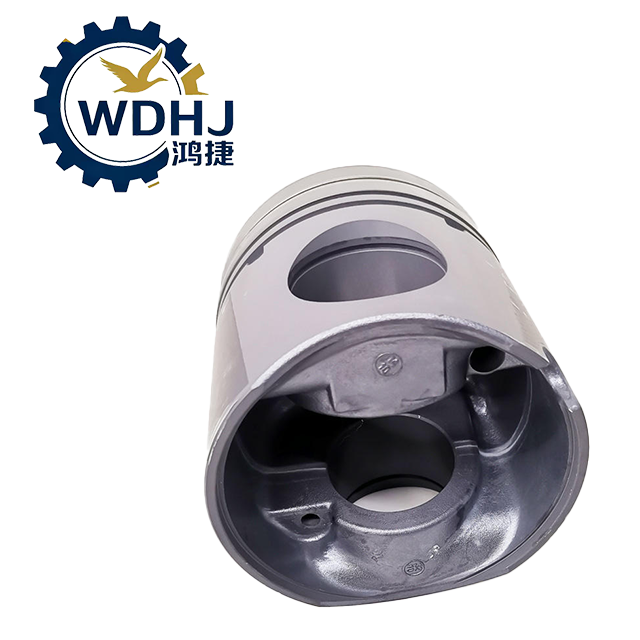

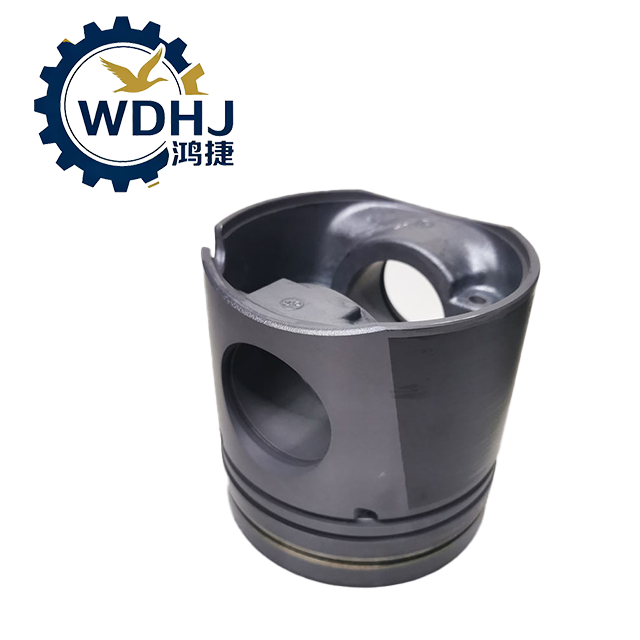

The 612600030034A is a high-performance Engine Piston Assembly designed specifically for Weichai (WP10) series diesel engines. As a core component of the combustion chamber, this piston converts the energy generated by fuel combustion into mechanical power to drive the vehicle.

Manufactured from high-strength aluminum alloy, it features a heat-resistant insert ring and internal cooling oil channels to withstand the extreme temperatures and pressures of heavy-duty operation. This component is widely compatible with major Chinese heavy-duty truck brands, including SHACMAN, SINOTruk (HOWO), and JAC, as well as various construction machinery. It is optimized for Euro II/III emission standard engines, ensuring stable combustion and reliable power output.

Quantity:
Availability:





Inquire Add to Basket

Model:
612600030034A
Brand:
Shacman

Product Description

Attribute	Details
Product Name	Engine Piston Assembly (Cylinder Piston)
OE Part Number	612600030034A
Base Part Number	612600030034 / 1000393066
Brand Compatibility	Weichai Power (WP10 Series)
Engine Standard	Euro II / Euro III (Mechanical Pump / Common Rail)
Applicable Vehicles	SHACMAN Delong, SINOTRUK HOWO, JAC Gelaf, Beiben, Foton Auman
Vehicle Type	Heavy-Duty Truck, Dump Truck, Tractor Head, Construction Machinery
Material	High-Strength Aluminum Alloy (with Heat-Resistant Insert)
Combustion Chamber	Ω (Omega) Type Deep Pit (Optimized for Fuel Mixing)
Surface Treatment	Graphite Coated Skirt (Black Face) for Reduced Wear
Quality Grade	OEM / Genuine Quality

Parameter	Specification (Standard WP10)
Cylinder Bore Diameter	126 mm (Note: Verify if 130mm variant applies to specific batch)
Piston Pin Diameter	55 mm
Piston Total Height	Approx. 145 mm - 155 mm (Model Dependent)
Compression Height	Standard WP10 Specification (Verify against engine model)
Combustion Chamber Type	Ω (Omega) Deep Dish
Skirt Coating	Graphite / Molybdenum Disulfide (Anti-Scuffing)
Operating Temperature	Designed for High Thermal Load Heavy-Duty Cycles
Compatible Power Range	270 HP to 375 HP (WP10.270 / .290 / .336 / .375)
Weight Group	Must be matched within same weight group for balance
Clearance (Piston-to-Liner)	Approx. 0.15 mm - 0.20 mm (Cold State, Verify with Manual)

I. Weichai WP10 Engine (Compatible with F3000, older M3000, Aolong, and dump truck models)

China III standard OEM piston (612600030010) and improved aftermarket replacement (612600030010A);

China IV/V WP10 standard piston (612600030011) and aftermarket version with wear-resistant ring groove (612600030011A)—a top-selling market favorite;

WP10 EVB (Exhaust Valve Brake) compatible thickened piston (612600030017) and aftermarket version (612600030017A);

China VI WP10H high-horsepower, heavy-duty piston (1001758754)—a high-temperature resistant forged piston designed specifically for mining dump trucks;

Older WD615 two-valve piston for Aolong (615600030011)—original equipment for early F2000 models.

II. Weichai WP12 Engine (Compatible with X3000, new M3000, and L3000 375/430 hp tractor units)

WP12 China V OEM piston (612630020152) and improved aftermarket version (612630020152A);

WP12NG high-temperature resistant piston for natural gas engines (1000076563)—designed to prevent crown melting in gas-powered models;

Heavy-duty reinforced piston for dump trucks (612600030034) and aftermarket version (612600030034A)—suitable for high-temperature operating conditions involving sand and gravel transport. III. Weichai WP13 High-Horsepower Engine (X3000/X5000/X6000; 500/550 HP; National V/VI Standards)

WP13 National V OEM piston (612700020004), part of the OEM "four-piece" assembly kit;

National VI X5000 lightweight forged piston (1000495390), standard for low-fuel-consumption long-haul towing;

WP13NG (Natural Gas) flagship X6000-specific piston (1001850007), featuring an enlarged combustion chamber adapted for gas injection systems.

IV. Weichai WP7/WP8 Lightweight Engines (L3000, New M3000S for "Green Channel" / lightweight towing)

WP7 compact lightweight piston (610800030020), designed for narrow-body lightweight chassis;

WP8 National VI low-temperature piston (611600030018), featuring a reinforced crown structure for enhanced knock resistance.

V. Xi'an Cummins ISM11 Engine (Export X3000, overseas mining truck towing)

ISM11 two-piece OEM piston (4974318), standard factory-installed component;

Heavy-duty reinforced mining piston (3103753), adapted for long-term high-load construction site operations;

Universal replacement piston (4022533X), widely interchangeable in overseas aftermarket maintenance.

VI. Yuchai Engine (Shaanxi Auto Xuande X6/X9, light-duty short-haul construction vehicles)

Yuchai National V standard piston (S01000-1002490), compatible with the entire Xuande series;
