High-Quality Weichai 612600013589R Flywheel Housing for Weichai Engines — Shacman, Sinotruk, And HOWO Truck Spare Parts

High-Quality Weichai 612600013589R Flywheel Housing for Weichai Engines — Shacman, Sinotruk, And HOWO Truck Spare Parts

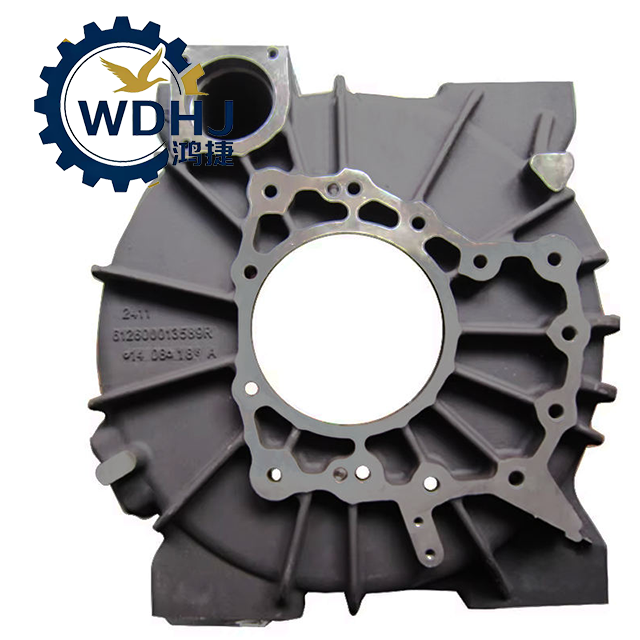

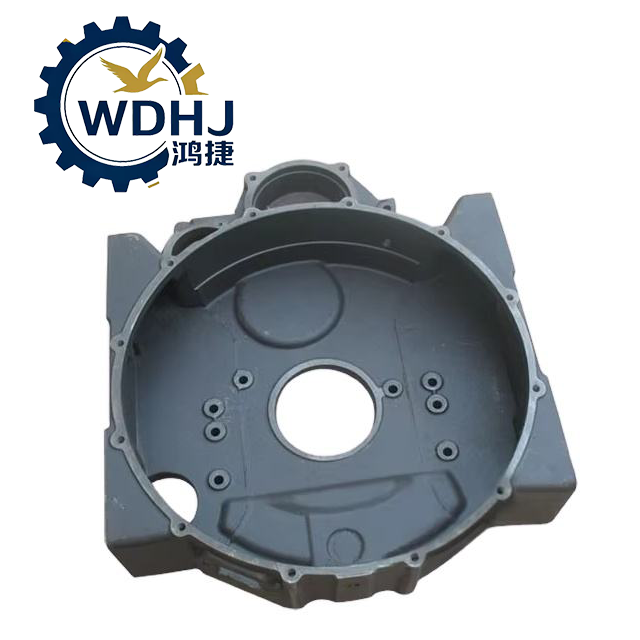

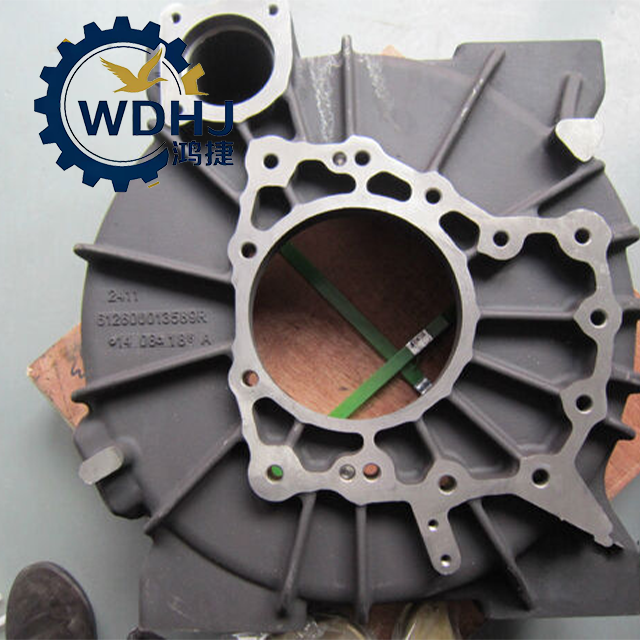

The 612600013589R is a critical structural component known as the Flywheel Housing (or Flywheel Crankcase) for Weichai (WP10/WP12) heavy-duty diesel engines. This component serves as the primary interface between the engine block and the transmission, providing structural support for the transmission assembly while protecting the flywheel and clutch system from external contaminants.

Manufactured from high-strength cast iron, this housing is designed to withstand high torque loads and engine vibrations. It is widely compatible with major Chinese heavy-duty truck brands, including SHACMAN (Delong X3000/F3000) and Sinotruk (HOWO A7/T7H). The suffix "R" often indicates a specific revision or batch compatible with Euro 5 emission standards. Precision machining ensures proper alignment for the crankshaft rear oil seal and transmission input shaft, preventing leaks and vibration issues.

Quantity:
Availability:





Inquire Add to Basket

Model:
612600013589R
Brand:
Sinotruk HOWO

Product Description

Attribute	Details
Product Name	Flywheel Housing / Flywheel Crankcase
OE Part Number	612600013589R
Base Part Number	612600013589
Brand Compatibility	Weichai Power (WP10, WP12 Series)
Applicable Vehicles	SHACMAN (Delong X3000, F3000), Sinotruk (HOWO A7, T7H)
Other Compatible Brands	Beiben Heavy Truck, Foton Auman (with Weichai Engine)
Engine Standard	Euro 5 (Compatible with Euro 3/4 in some configurations)
Material	High-Strength Cast Iron (Primary) / Aluminum Alloy (Optional)
Manufacturing Standard	ISO9001 Certified, SAE #1 Standard
Origin	Shandong, China (Weichai/Sinotruk Headquarters)
Quality Grade	Genuine / OEM Quality

Parameter	Specification
SAE Housing Standard	SAE #1 (Standard Heavy Duty Transmission Interface)
Mounting Bolt Holes	Typically 12 Holes (Outer Circle for Transmission)
Front Mounting	Bolted directly to the Rear of Cylinder Block
Inspection Window	Included (For Flywheel Timing Marks & Speed Sensor Installation)
Sealing Surface	High-Precision Machined Face (For Rear Crankshaft Oil Seal)
Face Runout Tolerance	Within OEM Standard Limits (Typically ≤ 0.20 mm)
Radial Runout Tolerance	Within OEM Standard Limits (Typically ≤ 0.20 mm)
Thermal Resistance	Designed to isolate flywheel heat from transmission
Structural Function	Supports Transmission Weight & Absorbs Engine Vibration
Sensor Compatibility	Compatible with Speed Sensors (e.g., 612600180011)
