| Quantity: | |
|---|---|
12JSD160T-1707030
Sinotruk HOWO
| Attribute | Description |
|---|---|

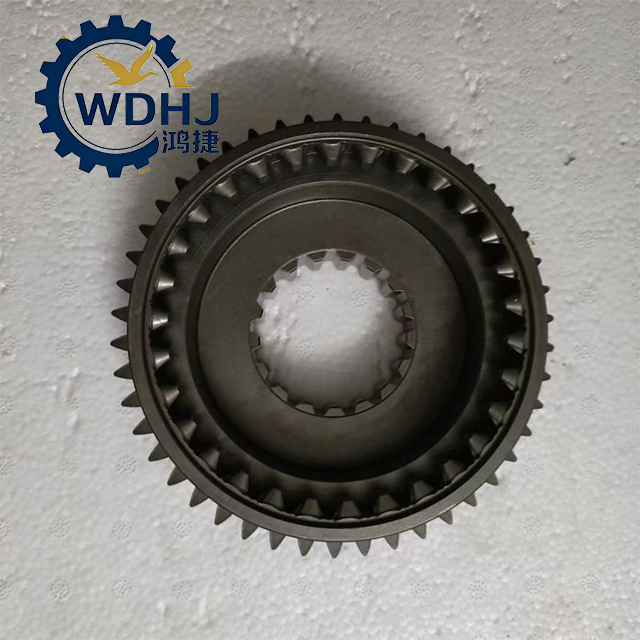

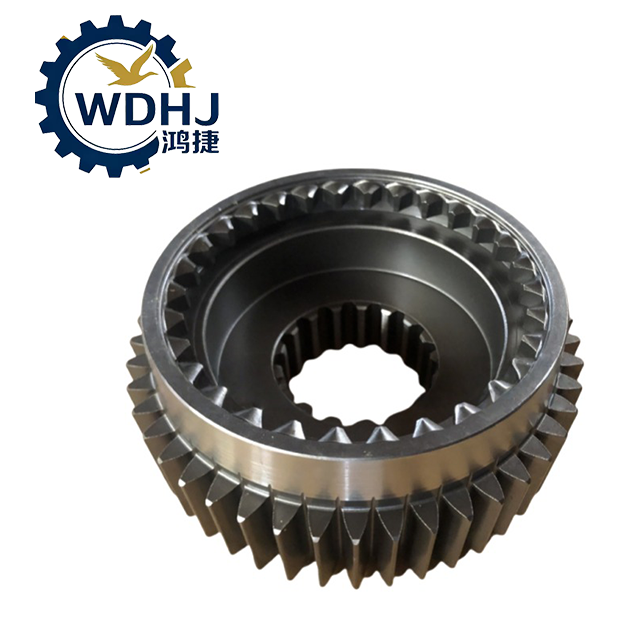

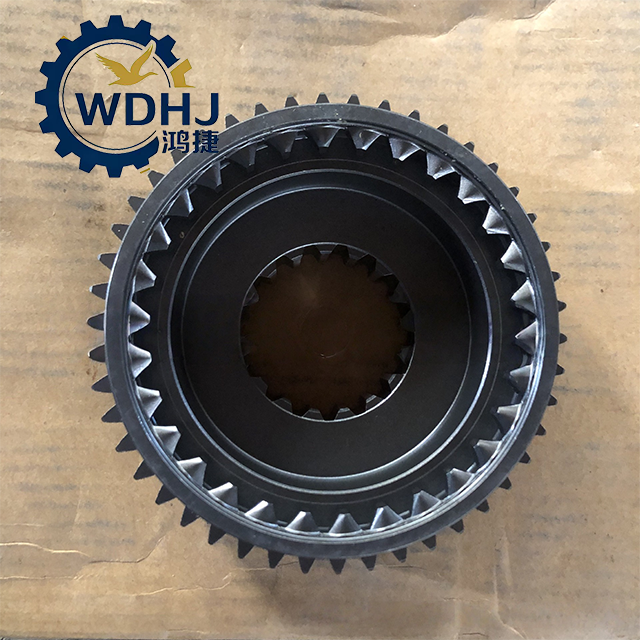

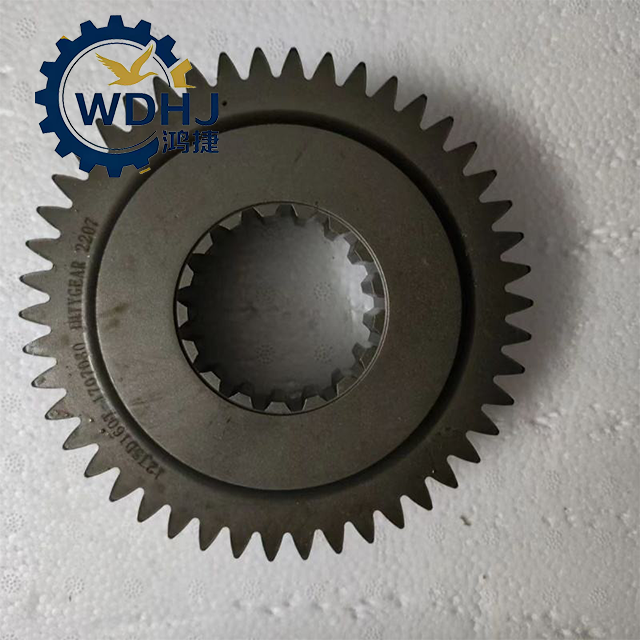

| Part Name | Auxiliary Box Drive Gear / High-Speed Drive Gear |
| OE Number (Original Equipment) | 12JSD160T-1707030 |
| Common Name | Overdrive Input Gear / High-Range Driving Gear |
| Tooth Count (Z) | Typically 40 teeth or 46 teeth – exact count depends on final drive ratio configuration; must be verified per application |
| Gear Type | Helical gear (for smooth engagement and reduced noise) |
| Material | High-strength alloy steel (e.g., 20CrMnTi or equivalent) |
| Heat Treatment | Carburized, quenched, and tempered for high surface hardness and core toughness |
| - Surface Hardness | HRC 58–63 (Rockwell C scale) |
| - Core Toughness | Optimized to resist shock loading and fatigue |
| Weight | Approx. 4 kg (varies slightly based on tooth count and design) |
| Function | Transmits power from the main shaft to the auxiliary gearbox output in high-range mode, enabling higher-speed operation with reduced engine RPM |
| Location | Installed in the auxiliary (sub) gearbox of dual-stage transmissions |
| Speed Ratio Role | Part of a gear set that defines the high/low range split, typically contributing to an overdrive ratio (~0.79–0.83 depending on model) |
Name1
Name2
| Brand | Compatible Models |
|---|---|
| Sinotruk HOWO | A7, T7, N10 series |
| Shacman (Shaanqi) | F2000, F3000, X3000, DeLong series |
| FAW Jiefang | J6P, J7 series heavy trucks |
| Foton Auman | GTL, EST, Auman H6/H9 |
| Beiben (North Benz) | 2637, 2642, 9-series heavy haulers |
| Other OEMs | Any commercial vehicle equipped with FAST 12JSD160T or compatible transmission systems |
✔️ This gear operates during high-range (overdrive) modes, improving fuel economy and lowering noise during sustained high-speed driving.
These are common alternative or compatible identifiers used across suppliers:
| Cross Reference Number | Notes |
|---|---|
12JS160T-1707030 | Similar FAST model, may differ slightly in tooth count or revision |
10JSD140-1707030 | Compatible with smaller FAST 10-speed transmissions (check fitment) |
JS180-1707030 | Used in larger JS180 series transmissions – verify compatibility |
FAST-GEAR-AUX-HI-160T | Aftermarket branding example |
FBG-1707030 | Generic FAST spare parts catalog designation |
