9079082
Tonly Mining Dump Trucks
| Attribute | Specification |
|---|---|
| Part Number | 9079082 |

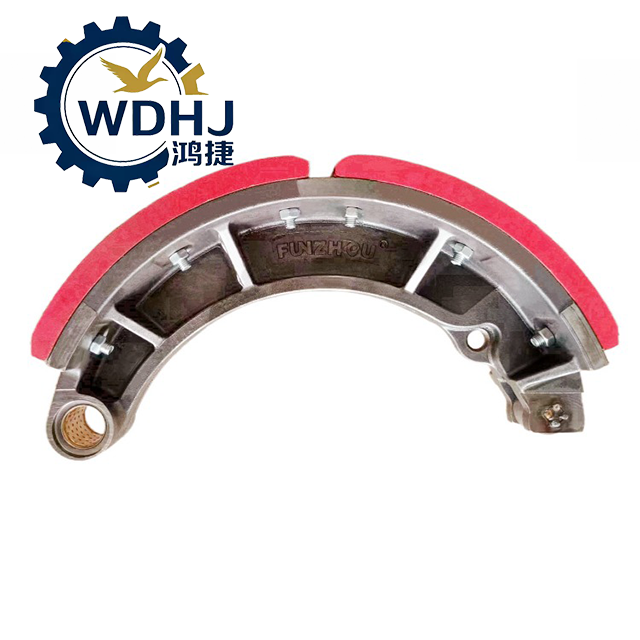

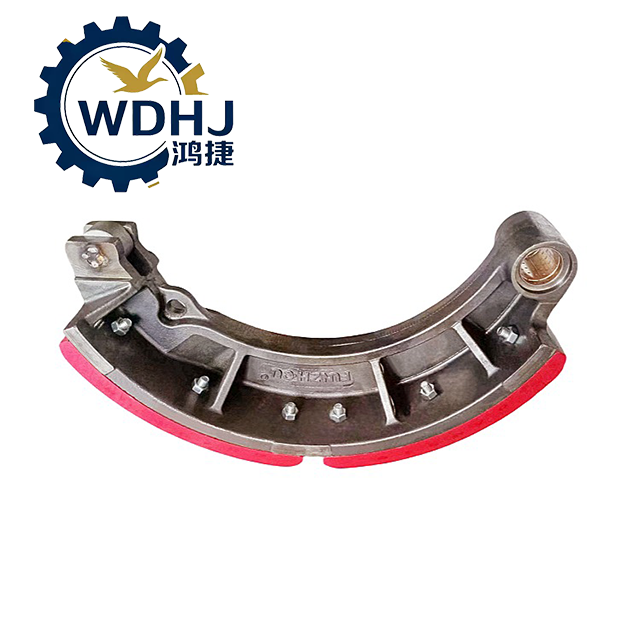

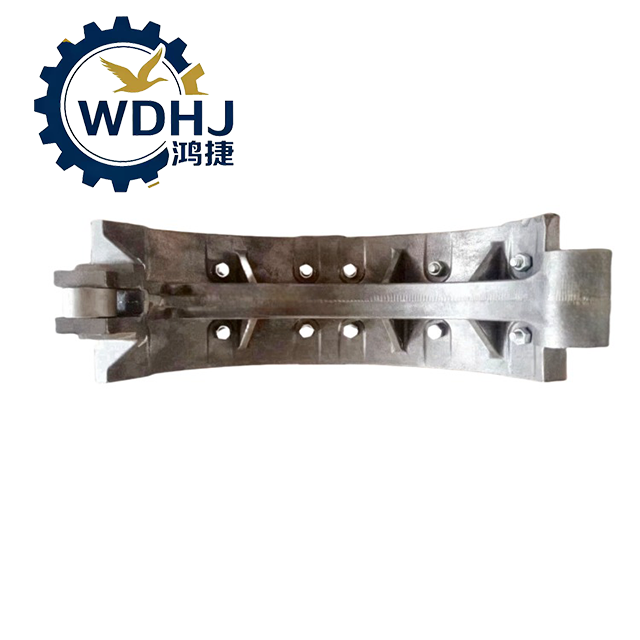

| Component Name | Brake Shoe Assembly (Leading/Trailing Type – Sold per piece or as set) |
| Application Type | Drum Brake System – S-Cam Actuated |
| Axle Position | Front / Rear Axle (Model-dependent) |
| Vehicle Type | Heavy-Duty Trucks, Dump Trucks, Trailers, Mining Vehicles |
| Brake Drum Size | Compatible with ~415 mm x 165 mm (16.3" x 6.5") drums (verify exact match) |
| Shoe Arc Radius | Matches standard curvature for optimal drum contact |
| Backplate Material | High-strength low-alloy steel (HSLA), precision formed |
| Lining Attachment Method | Riveted or Bonded (depends on variant; riveted preferred for heavy duty) |
| Friction Lining Material | Non-Asbestos Organic (NAO) or Semi-Metallic Compound – High μ (friction coefficient) |
| Friction Coefficient (μ) | 0.38 – 0.45 (dry condition), stable at high temperature |
| Parameter | Value / Detail |
|---|---|
| Drum Diameter Compatibility | 410–420 mm (commonly 415 mm) |
| Width of Friction Lining | 150 mm – 165 mm |
| Total Shoe Length (approx.) | 380–400 mm |
| Lining Area (per shoe) | ~600 cm² |
| Operating Temperature Range | -40°C to +350°C (short-term peaks) |
| Max Continuous Braking Energy | Suitable for GVW up to 40 tons |
| Heat Dissipation Design | Radiating fins or slots (on some variants) to reduce fade |
| Weight (per unit) | ~8.5 kg – 9.5 kg |
| Compliance Standards | GB5763, ECE R90, ISO 26867 (performance & safety standards) |
