| Quantity: | |
|---|---|
8204515-C0100
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 8204515-C0100 |

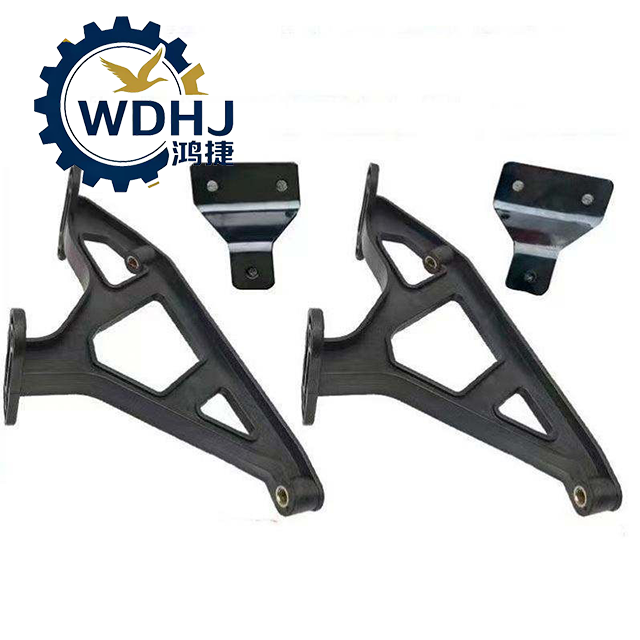

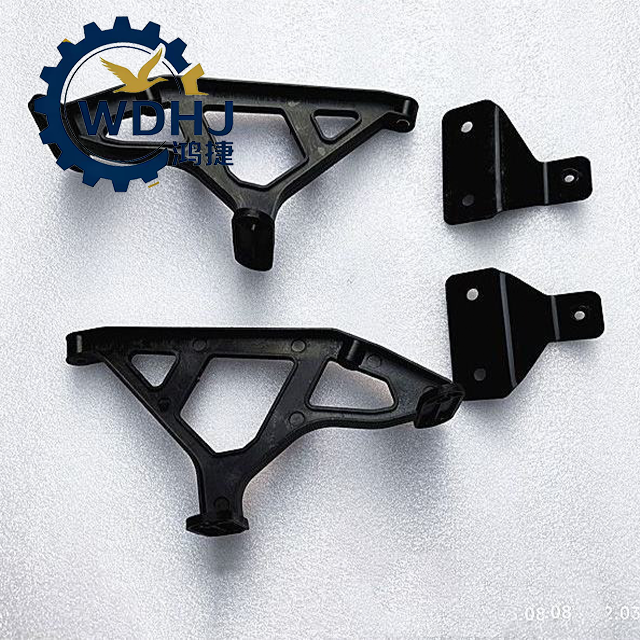

| Product Name | Sun Visor Mounting Base / Interior Sunshade Bracket |
| Common Names | Visor Pivot Base, Cab Roof Bracket, Sunshield Hinge Holder |
| Application Position | Upper A-pillar region of driver and front passenger side |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Tianlong (Classic), Kingrun KR, T-Lift KC (2010–2023 models) |
| Chassis Platform | DFL4251, DFL4181, DFH1180, etc. |
| Material | Reinforced PA66 (Nylon 66) with anti-wear additives |
| Color | Light Gray (standard interior match for C0100-series cabs) |
| Weight (Approx.) | 0.05 – 0.08 kg |
| Mounting Type | Dual M6 bolt holes; U-shaped or round pivot groove for visor shaft |
| Design Standard | Complies with Q/DF 1.1, GB 8410 (flame resistance), ISO 9001 |
| Parameter | Specification |
|---|---|
| Tensile Strength | ≥130 MPa |
| Flexural Modulus | >2,800 MPa |
| Heat Resistance (HDT) | ≥180°C @ 1.8 MPa load (prevents deformation under hot sun exposure) |
| Flame Retardant | Self-extinguishing; meets GB 8410 vertical burn test |
| Wear Performance | Withstands >50,000 open/close cycles without significant clearance increase |
| Operating Temperature Range | -40°C to +100°C (short-term peak tolerance up to 120°C) |
| Chemical Resistance | Resistant to cleaning agents, oils, and UV radiation |
| Service Life | 8–12 years under normal usage conditions |
