5206015-C6100
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 5206015-C6100 |

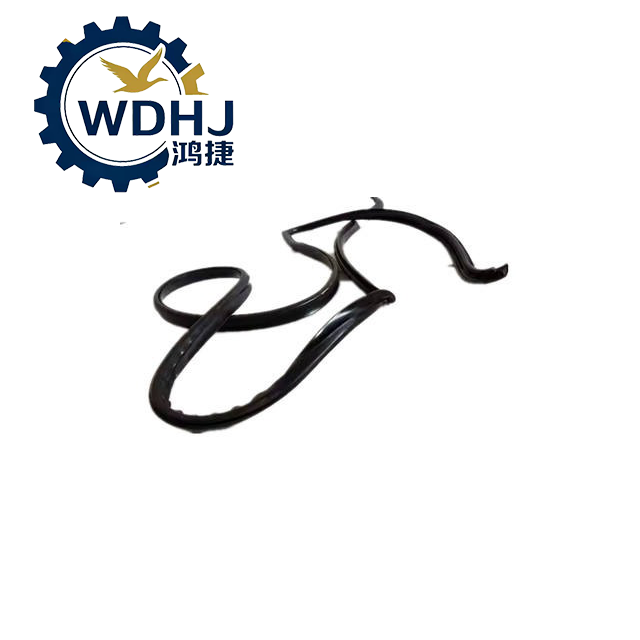

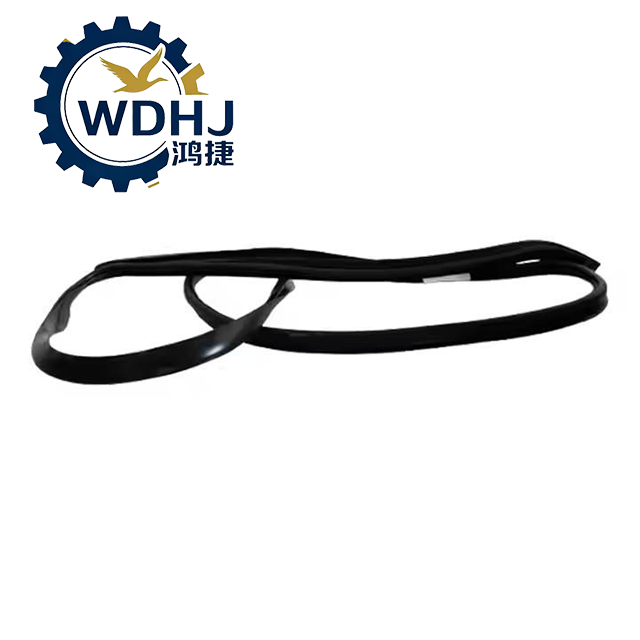

| Product Name | Front Windshield Glass Weatherstrip Seal / Perimeter Gasket |
| Common Names | Windshield Rubber Seal, Cab Glass Gasket, Weatherstripping |
| Application Position | Full perimeter of front windshield (bonded into frame groove) |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Tianlong KX (Flagship), GX Series, High-Roof KL |
| Material Type | Premium EPDM (Ethylene Propylene Diene Monomer) rubber |
| Color | Matte Black (standard OE finish) |
| Structure Type | Closed-loop extruded profile with variable cross-section |
| Hardness (Shore A) | 60–75 (balanced flexibility and sealing force) |
| Design Standard | Meets GB/T 23335, ISO 11439, DFCV OE specifications |
| Parameter | Specification |
|---|---|
| Material Properties | Ozone-resistant, UV-stable, non-hydrolyzing EPDM |
| Temperature Range | -40°C to +120°C — maintains elasticity and recovery |
| Compression Set (After 24h @ 70°C) | ≤15% (excellent shape memory after long-term compression) |
| Sealing Performance | IP68-rated water/dust protection; no leakage under high-pressure wash test |
| Noise Reduction (Wind Noise) | Up to 8 dB(A) reduction at 90 km/h due to aerodynamic lip design |
| Tensile Strength | ≥10 MPa |
| Elongation at Break | ≥300% |
| Service Life | 8–12 years under normal operation |
