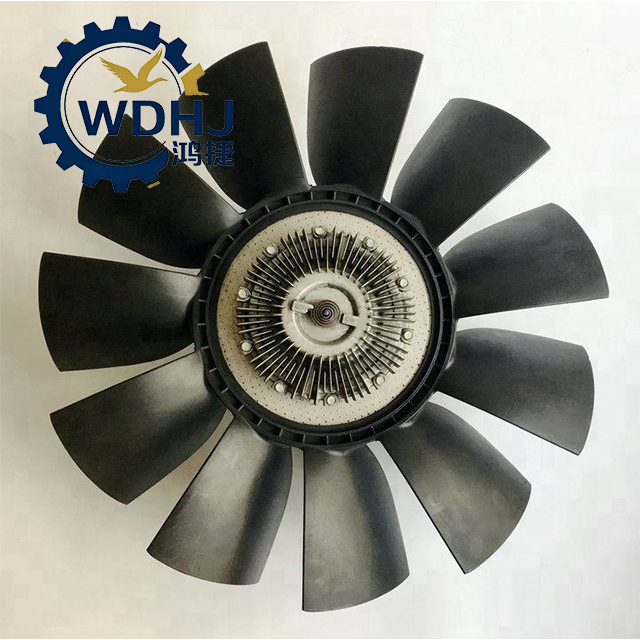

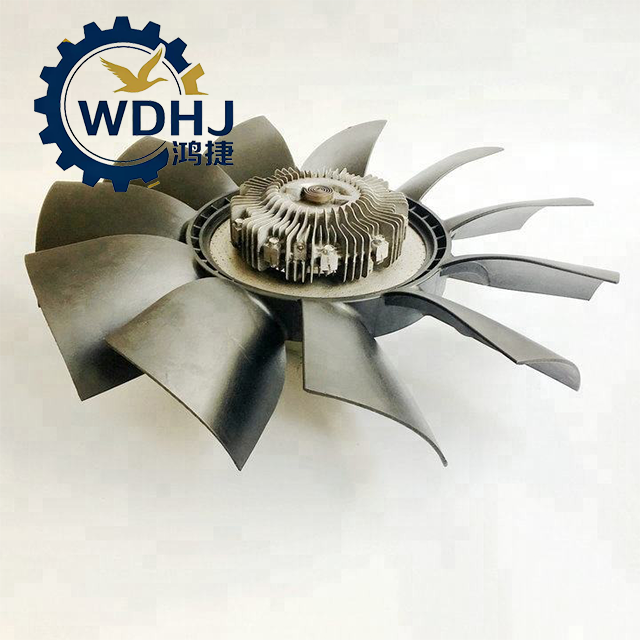

1308060-K0801 Auto Radiator Cooling Fan for Dongfeng Truck

The 1308060-K0801 Silicone Oil Fan Clutch Assembly is an original equipment (OE) thermally controlled fan drive unit designed to regulate the speed of the engine cooling fan on Dongfeng Tianlong, Kingrun, and Hercules series heavy-duty commercial vehicles. By automatically adjusting fan engagement based on radiator outlet air temperature, it significantly improves fuel efficiency, reduces engine load, and lowers operational noise.

Using a bimetallic thermal sensor to detect ambient heat behind the radiator, the clutch controls the flow of high-viscosity silicone oil between driving and driven plates, enabling smooth torque transfer and precise thermal regulation. This intelligent system ensures that the fan operates at full speed only when needed—such as during low-speed climbing or high-load operation—and disengages under light loads or cold conditions.

Constructed with a high-conductivity aluminum housing, this unit meets IATF 16949 (formerly TS16949) quality standards and delivers reliable performance across extreme operating environments—from arid deserts to freezing northern climates.

Quantity:
Availability:





Inquire Add to Basket

Model:
1308060-K0801
Brand:
Dongfeng

Product Description

Attribute	Description
Part Number (OE)	1308060-K0801
Product Name	Silicone Oil Fan Clutch Assembly
Common Names	Thermal Fan Coupler, Viscous Fan Drive, Engine Cooling Fan Clutch
Application Vehicle	Heavy-Duty Trucks / Long-Haul Tractors
Vehicle Brand	Dongfeng Commercial Vehicle (DFCV)
Compatible Models	Dongfeng Tianlong KL, Kingrun KR, Hercules KC Series
Engine Compatibility	Cummins ISL/L Series, Weichai WP Series, Dongfeng DDi Engines
Housing Material	High-purity die-cast aluminum (excellent heat dissipation)
Working Medium	Dimethylsiloxane-based viscous fluid (silicone oil)
Control Type	Bimetallic thermal sensor (automatic)
Mounting Style	Bolted directly to water pump pulley shaft
Design Standard	Complies with IATF 16949, GB/T 18488, ISO 9001

Parameter	Specification
Operating Temperature Range	-40°C to +120°C (ambient detection range)
Activation Threshold	Typically engages at ~70–85°C; fully locked above 90°C
Torque Transmission	Up to 35 N·m (varies by model and viscosity grade)
Cooling Efficiency	Maintains engine coolant temperature within optimal range (85–95°C)
Power Saving Effect	Reduces parasitic loss by 2%–5% fuel consumption
Noise Reduction	Lowers external noise up to 8 dB(A) vs. direct-drive fans
Service Life	≥600,000 km or 5–7 years under normal use
Weight (Approx.)	3.8 – 5.2 kg
Fan Compatibility	Fits standard 6-blade or multi-blade cooling fans (φ500–φ650 mm)
