3714170-C0100
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 3714170-C0100 |

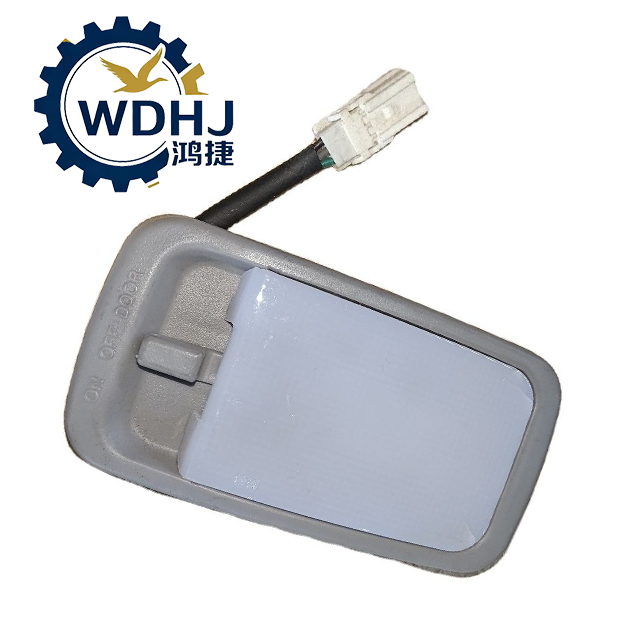

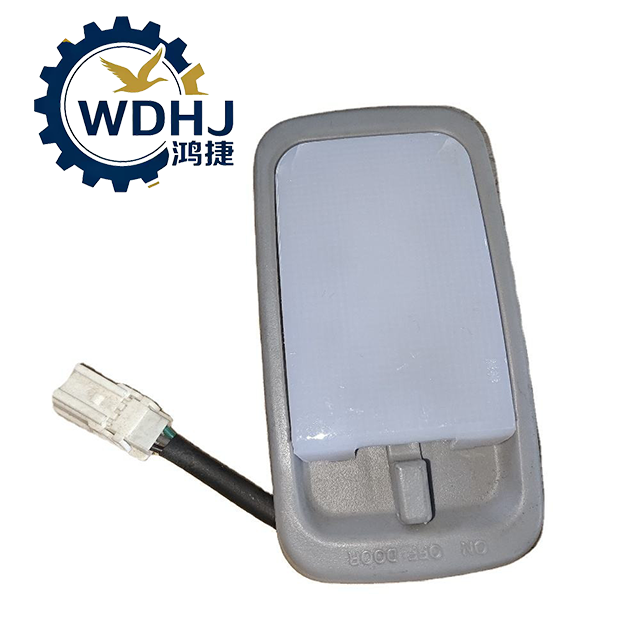

| Product Name | Side Reading Lamp Assembly / Bunk Light / Step Illumination Lamp |
| Common Names | Cab Interior Light, Bedside Lamp, Dome Light (partial function) |
| Application Position | Lateral wall of cab (near sleeper berth), A-pillar, or above step area |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Tianlong KL, Kingrun KR, T-Lift KC Series |
| Light Source Type | Integrated LED (2026 models); Halogen bulb (older versions) |
| Rated Voltage | 24V DC (standard for Chinese heavy trucks) |
| Lamp Housing Material | Flame-retardant ABS base + high-transparency PC lens cover |
| Switch Type | Toggle or push-button 3-position switch: ON / OFF / DOOR (auto-on when door opens) |
| Connector Type | 2-Pin or 3-Pin waterproof plug (depending on switch functionality) |
| Design Standard | Meets GB 4785 (automotive lighting), GB 8410 (flammability), DFCV OE specs |
| Parameter | Specification |
|---|---|
| Operating Voltage Range | 20–30 V DC (safe operation within normal truck battery fluctuations) |
| Power Consumption (LED Version) | ~1.5–2.0 W |
| Luminous Output (Typical) | 120–180 lumens |
| Color Temperature | 4000K – 4500K (warm white, eye-friendly) |
| Service Life (LED) | >30,000 hours (typical LED lifespan; no regular bulb replacement needed) |
| Halogen Replacement (Older Units) | 24V / 5W or 10W wedge-base bulb (T5/T10) |
| Impact Resistance | PC lens withstands drops and vibrations (IK07 rated) |
| Heat Dissipation | Surface temperature <40°C after 2 hours of continuous use |
| IP Rating | IP65 (dust-tight and protected against water jets) |
| Installation Method | Screw-mounted or clip-in housing |
