| Quantity: | |
|---|---|
3741010-C3300
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 3741010-C3300 |

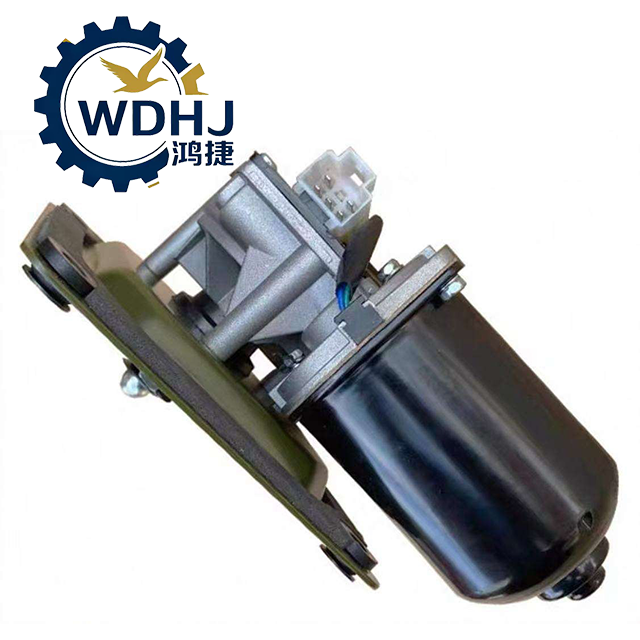

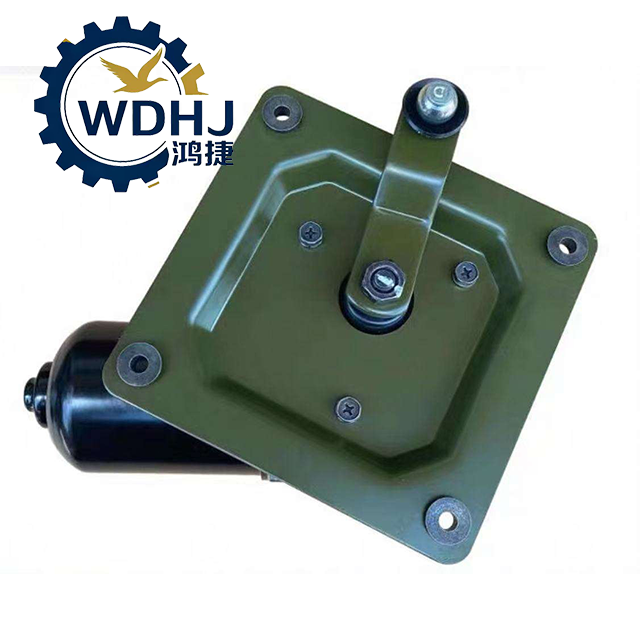

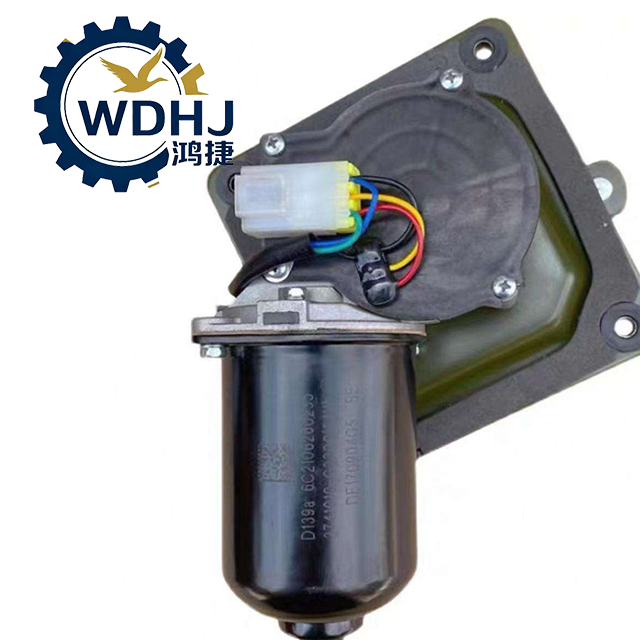

| Product Name | Front Windshield Wiper Motor Assembly |
| Common Names | Wiper Drive Motor, Wiper Gearbox Motor, Windscreen Wiper Actuator |
| Application Position | Below windshield cowl (connected to wiper transmission linkage) |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Tianlong KL, Kingrun KR, KX Series |
| Operating Voltage | 24V DC (standard for Chinese heavy trucks) |
| Rated Power Output | 80 – 100 W |
| Motor Type | Permanent Magnet DC Motor with Planetary/Worm Gear Reduction |
| Speed Settings | Low Speed: ≥35 rpm High Speed: ≥55 rpm |
| Stall Torque | ≥45 N·m (ensures return-to-park even under ice/snow load) |
| Protection Rating | IP66 (dust-tight and protected against powerful water jets) |
| Connector Type | 5-pin or 6-pin waterproof plug (includes park signal feedback) |
| Design Standard | Meets GB/T 23335, ISO 16750, DFCV OE specifications |
| Parameter | Specification |
|---|---|
| No-Load Current Draw | ~3.5 A |
| Stall/Blocked Current | Up to 18–22 A (brief surge; PTC protects winding) |
| Noise Level | <55 dB(A) during normal operation |
| Thermal Protection | Built-in PTC thermistor cuts off power during overcurrent/overload |
| Gear Material | High-strength alloy steel or reinforced PA6/nylon composite |
| Output Shaft Design | Splined shaft connects to wiper transmission lever |
| Mounting Interface | Bolt-on flange mount; compatible with standard wiper base plate |
| Service Life | >1.2 million wipe cycles (under test conditions) |
