| Quantity: | |
|---|---|
Dongfeng
| Attribute | Description |
|---|---|

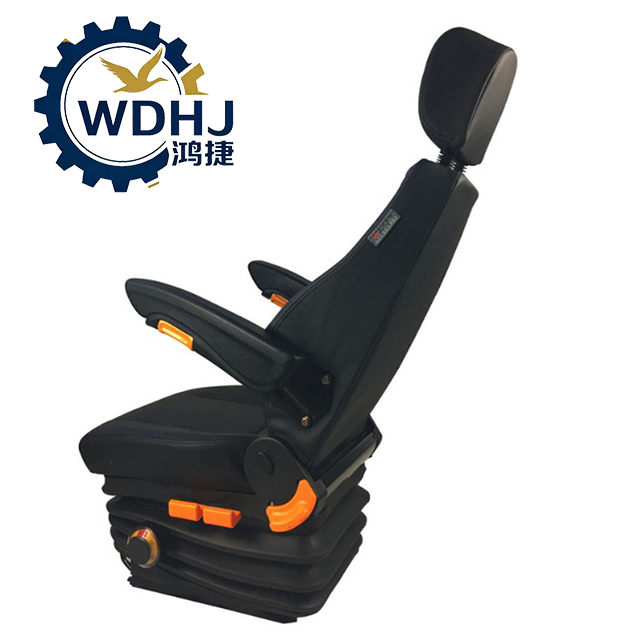

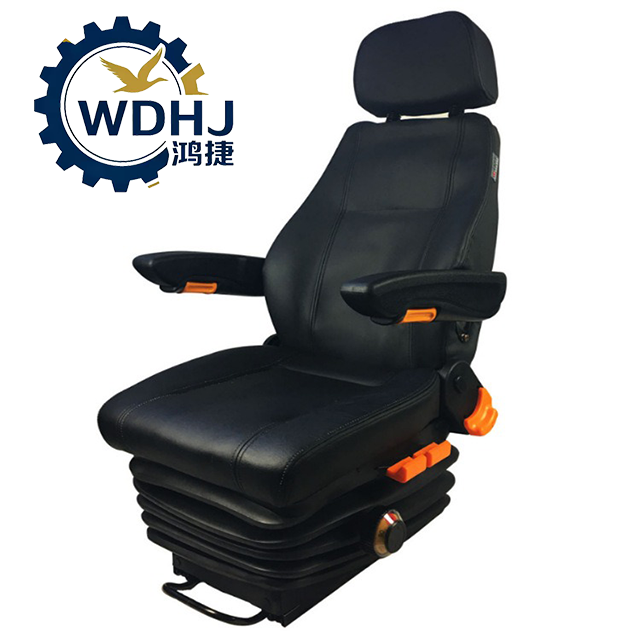

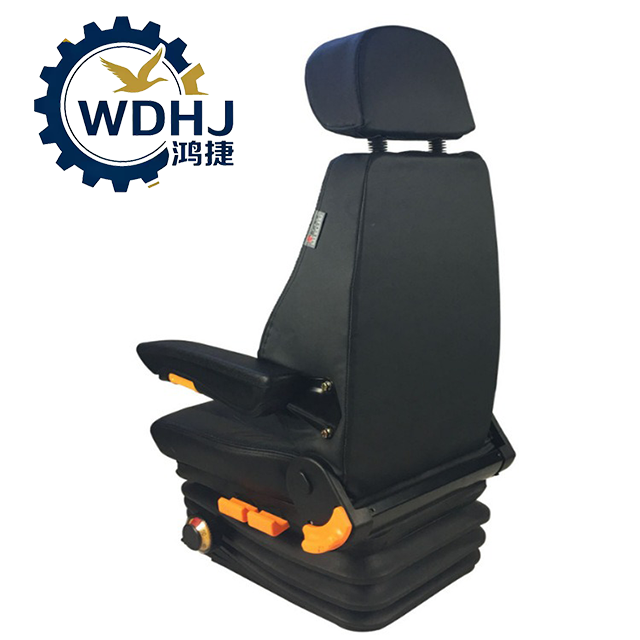

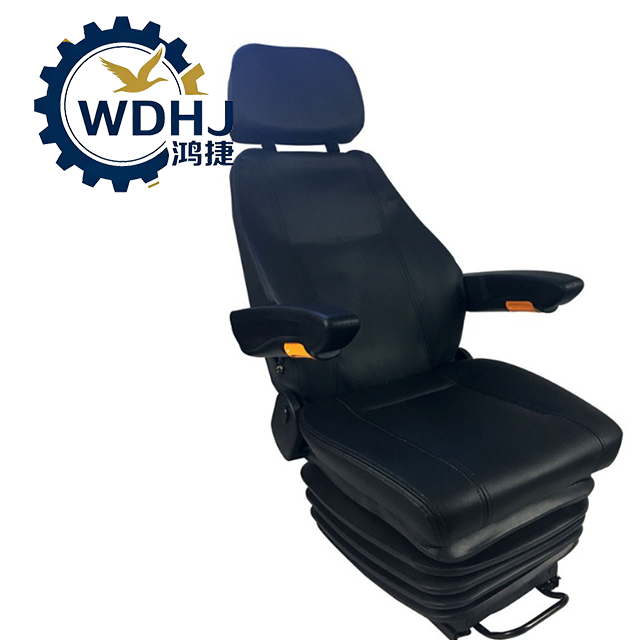

| Part Type | Driver's Seat / Operator Seat |
| Common Names | Truck Air Suspension Seat, Cab Seat, Heavy-Duty Driving Chair |
| Application Vehicle | Heavy-Duty Trucks, Tractors, Dump Trucks, Long-Haul Freighters |
| Seat Types | Mechanical, Pneumatic (Semi-Air), Full Air-Suspension |
| Frame Material | High-tensile cold-rolled steel |
| Cushioning Material | Molded polyurethane foam with anti-compression set properties |
| Cover Material | Breathable fabric, PU leather, or vinyl (varies by trim level) |
| Mounting Style | Floor-mounted slide rail system (longitudinal + height adjustment) |
| Safety Standards | Complies with ECE R14, ISO 6580, GB/T 13057, FMVSS 207 |
| Integrated Features | Height adjuster, recliner, lumbar support, armrests, heating (optional) |
| Parameter | Specification |
|---|---|
| Load Capacity | 70–120 kg (standard); heavy-duty versions up to 150 kg |
| Suspension Travel | 60 – 100 mm vertical stroke (air models) |
| Adjustment Range | Fore/aft: 100–150 mm Backrest angle: 90°–120° |
| Operating Temperature Range | -40°C to +85°C |
| Fire Resistance | Flame-retardant materials; meets FMVSS 302 & GB 8410 |
| Vibration Damping Efficiency | Reduces chassis vibration by 50–70% vs. rigid mounting |
| Noise Level (NVH) | Minimizes low-frequency cabin resonance |
| Weight (Typical) | 25 – 45 kg (depends on model and suspension type) |
| Service Life | 5–10 years or 800,000 km under normal operation |
