3750710-C6100
Dongfeng
| Attribute | Description |
|---|---|
| Part Number (OE) | 3750710-C6100 |

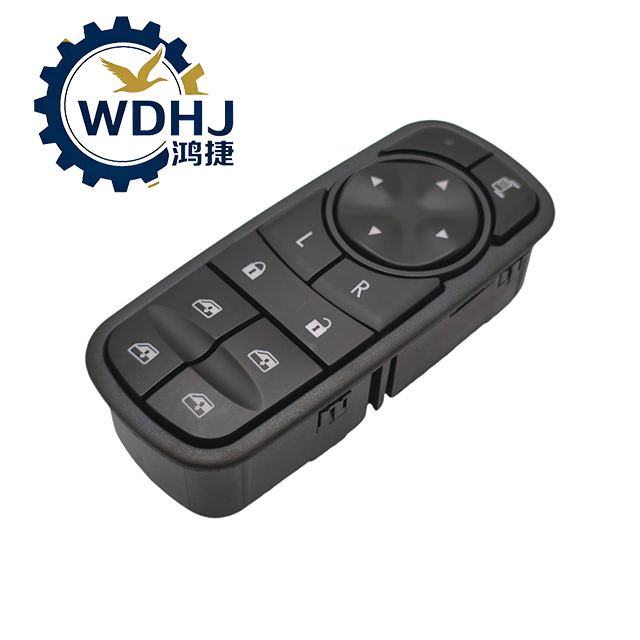

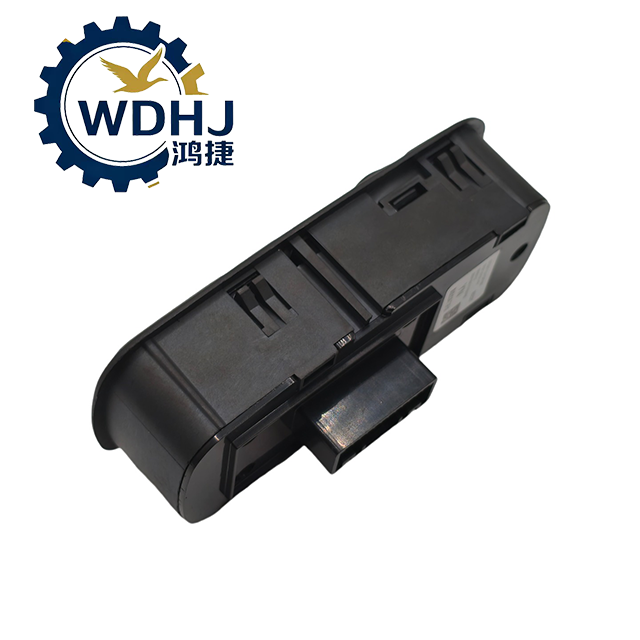

| Product Name | Driver’s Side Door Integrated Control Switch Assembly |
| Common Names | Window Lift Switch Panel, Master Door Control Module |
| Application Position | Left front door trim (driver's side) |
| Vehicle Brand | Dongfeng Commercial Vehicle (DFCV) |
| Compatible Models | Dongfeng Tianlong KL / KX / GX, Kingrun KR, D760/D320 Platform |
| Production Years | 2020 – Present |
| Operating Voltage | 24V DC (standard for Chinese heavy trucks) |
| Switch Functions | - Front & Rear Window Up/Down (toggle) - Central Lock/Unlock Button - Mirror Adjustment Knob - Mirror Heating (on high-spec versions) |
| Backlight Color | Amber Orange or Ice Blue (OEM standard) |

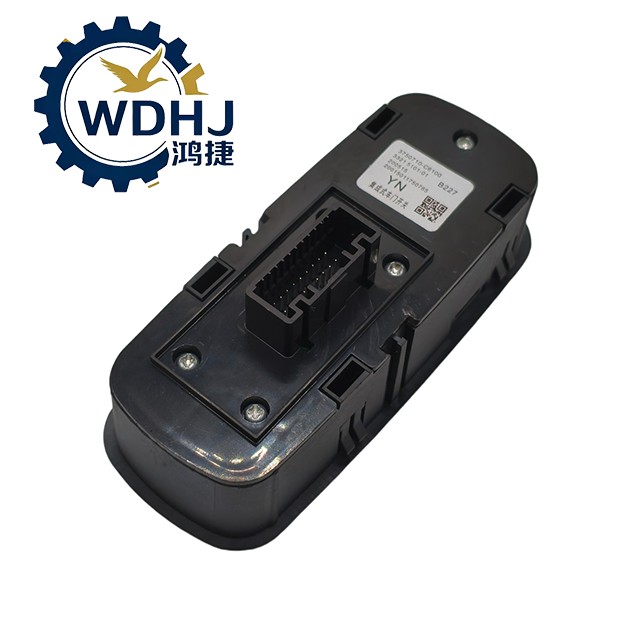

| Connector Type | 12-pin or 14-pin waterproof plug (pinout varies by configuration) |
| Housing Material | Flame-retardant ABS/PC engineering plastic |
| Contact Material | Silver alloy (high conductivity, anti-arc, long life) |
| Design Standard | Meets GB/T 28046, ISO 16750, and DFCV OE specifications |
| Parameter | Specification |
|---|---|
| Rated Voltage | 24V DC ± 10% |
| Window Switch Life Cycle | ≥100,000 operations (up/down per window) |
| Door Lock Button Life | ≥50,000 actuations |
| Operating Temperature Range | -40°C to +85°C — fully functional |
| Touch Feedback | Uniform tactile response; no sticking or excessive resistance |
| Water Resistance | IP65 rated (dust-tight and protected against water jets) |
| Backlight Power | <1.0 W (LED-based illumination) |
| Installation Method | Screw-mounted into door armrest with clip support |
| Service Life | 8–10 years under normal usage conditions |
