1109-06897
Yutong Bus Parts
| Attribute | Specification |
|---|---|
| Original Part Number | 1109-06897 / 110906897 |
| Alternate Yutong P/N | 1109-03931 (related batch variant) |

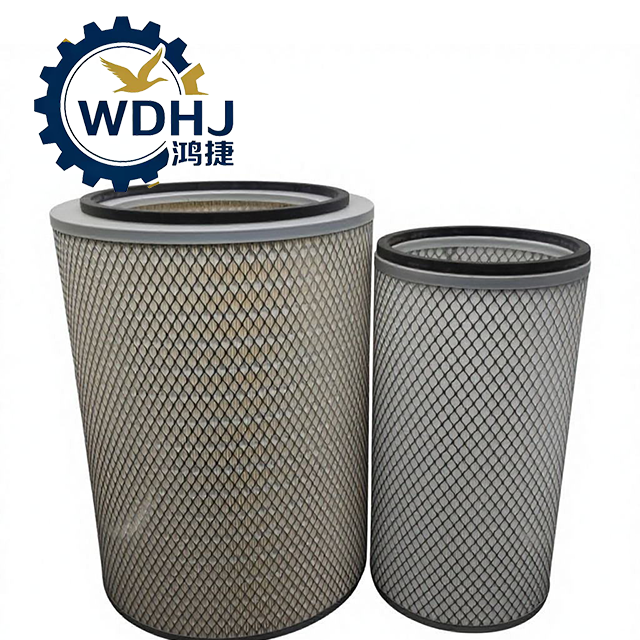

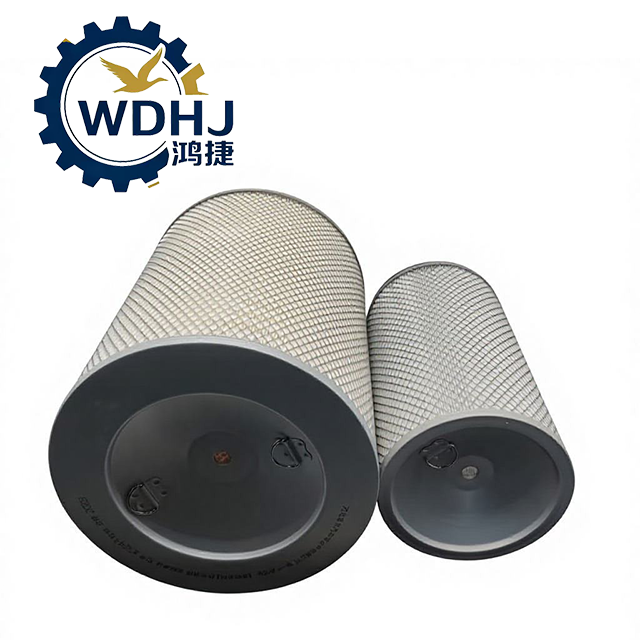

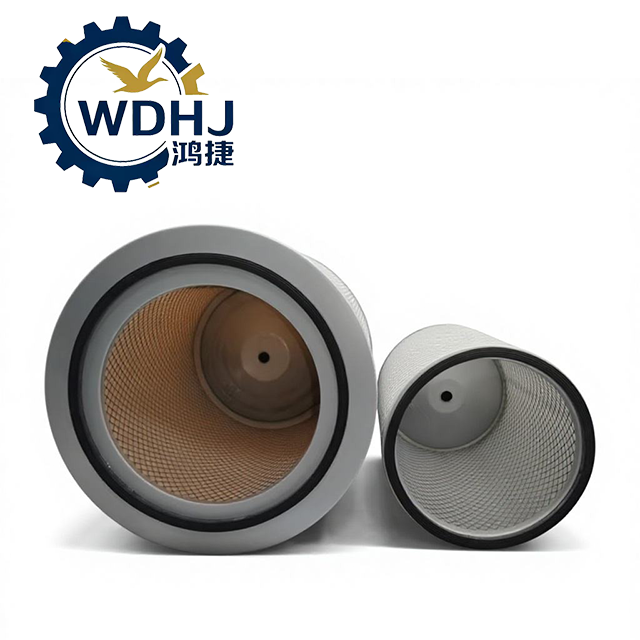

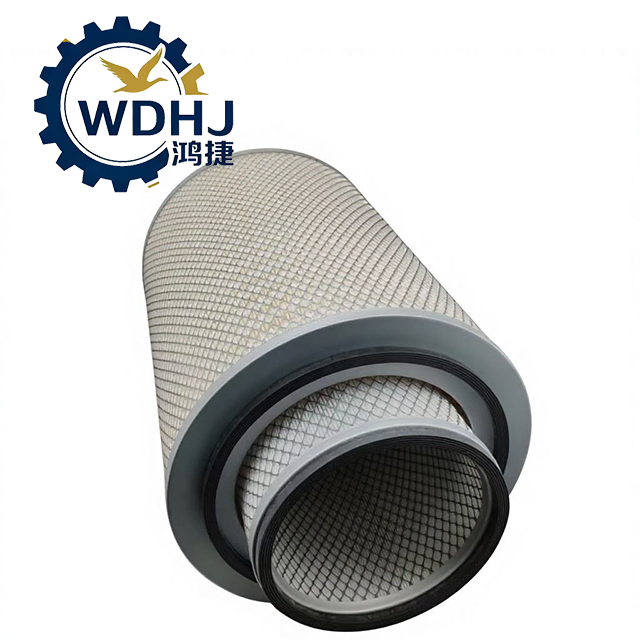

| Product Name | Air Filter Element / Air Cleaner Core |
| Brand Compatibility | Yutong (Primary), compatible with various heavy-duty chassis platforms |
| Application Vehicle | 11–12 Meter Highway Coaches & Tourist Buses |
| Compatible Engines | Weichai WP10/WP12, Cummins ISL/ISME, Yuchai YC6L |
| Outer Diameter (OD) | ~325 mm |
| Inner Diameter (ID) | ~210 mm |
| Height | ~485 mm |
| Filtration Media | High-Efficiency Composite Nano-Fiber Paper (Imported or Domestic Premium Grade) |
| End Cap Material | Polyurethane (PU) – Resistant to cracking, hardening, and thermal deformation |
| Weight (Approx.) | 2.1 kg – 2.4 kg |
| Parameter | Detail |
|---|---|
| Filtration Efficiency | >99.8% for particles ≥5μm (per ISO 5011 multi-pass test standard) |
| Dust Holding Capacity | High — supports extended service intervals up to 20,000–30,000 km depending on environment |
| Flow Resistance (Clean) | <3.5 kPa at rated airflow (ensures minimal restriction to engine breathing) |
| Operating Temperature Range | -40°C to +110°C (stable performance in arctic cold and desert heat) |
| Sealing Performance | Full-face PU seal prevents bypass leakage; maintains integrity after vibration and thermal cycling |
| Structural Integrity | Reinforced center tube and anti-collapse design withstands negative pressure during high-load operation |
| Recommended Replacement Interval | Every 15,000–25,000 km; shorten in dusty environments or construction zones |
| Compliance Standards | Meets ISO 5011, GB/T 28987, and OE quality requirements for heavy-duty diesel engines |
| Attribute | Specification |
|---|---|
| Original Part Number | 1109-06897 / 110906897 |
| Alternate Yutong P/N | 1109-03931 (related batch variant) |
| Product Name | Air Filter Element / Air Cleaner Core |
| Brand Compatibility | Yutong (Primary), compatible with various heavy-duty chassis platforms |
| Application Vehicle | 11–12 Meter Highway Coaches & Tourist Buses |
| Compatible Engines | Weichai WP10/WP12, Cummins ISL/ISME, Yuchai YC6L |
| Outer Diameter (OD) | ~325 mm |
| Inner Diameter (ID) | ~210 mm |
| Height | ~485 mm |
| Filtration Media | High-Efficiency Composite Nano-Fiber Paper (Imported or Domestic Premium Grade) |
| End Cap Material | Polyurethane (PU) – Resistant to cracking, hardening, and thermal deformation |
| Weight (Approx.) | 2.1 kg – 2.4 kg |
| Parameter | Detail |
|---|---|
| Filtration Efficiency | >99.8% for particles ≥5μm (per ISO 5011 multi-pass test standard) |
| Dust Holding Capacity | High — supports extended service intervals up to 20,000–30,000 km depending on environment |
| Flow Resistance (Clean) | <3.5 kPa at rated airflow (ensures minimal restriction to engine breathing) |
| Operating Temperature Range | -40°C to +110°C (stable performance in arctic cold and desert heat) |
| Sealing Performance | Full-face PU seal prevents bypass leakage; maintains integrity after vibration and thermal cycling |
| Structural Integrity | Reinforced center tube and anti-collapse design withstands negative pressure during high-load operation |
| Recommended Replacement Interval | Every 15,000–25,000 km; shorten in dusty environments or construction zones |
| Compliance Standards | Meets ISO 5011, GB/T 28987, and OE quality requirements for heavy-duty diesel engines |
