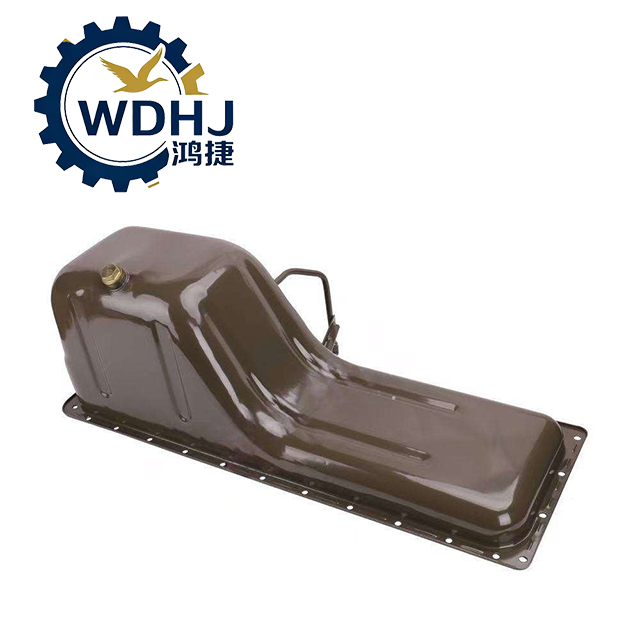

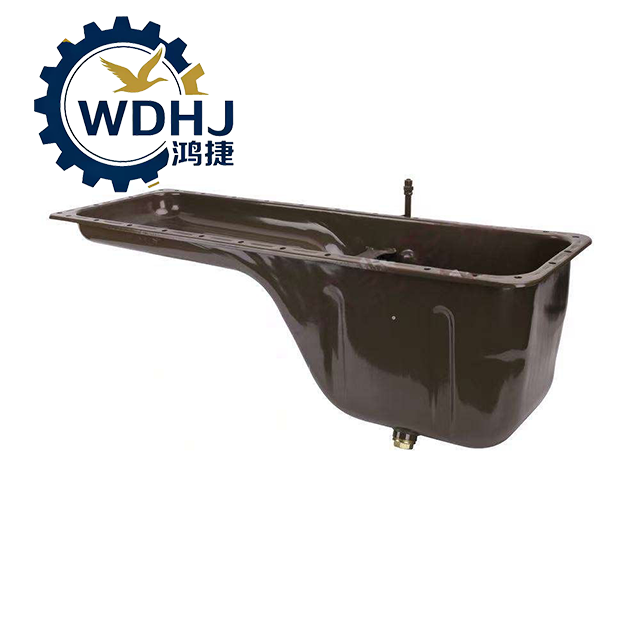

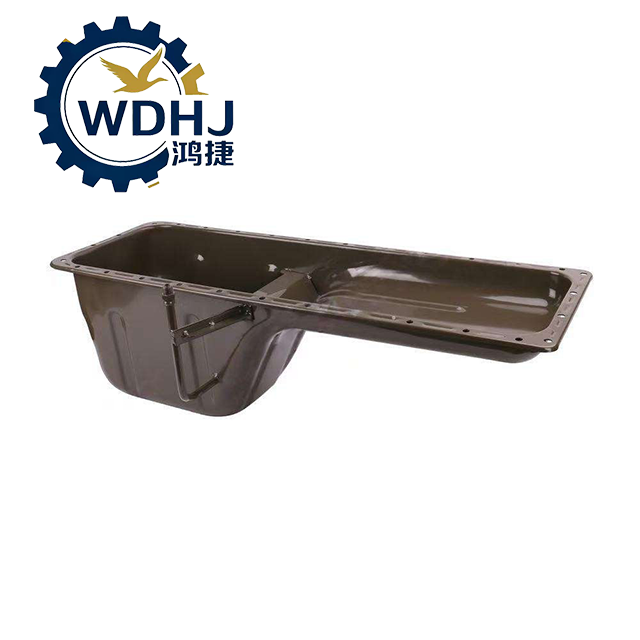

A10E3-1009040A Oil Pan Is Suitable for Yuchai Engine Diesel Engine Parts Oil Pan

he A10E3-1009040A Oil Pan Assembly is an original equipment (OE) engine oil pan designed for Yuchai YC4A series 4-cylinder and certain YC6 series 6-cylinder diesel engines, including models such as the YC4A125-20 and YC4A140-30. As a critical part of the lubrication system, it serves to store engine oil, provide limited heat dissipation, and ensure consistent oil supply to the oil pump under various operating conditions—including steep inclines common in construction and off-road applications.

Constructed from high-strength cast iron (standard version), with some variants using aluminum alloy for weight reduction, this oil pan features a deep-sump design that increases oil capacity and improves oil stability during vehicle tilting—essential for machinery like loaders and excavators.

Equipped with a magnetic drain plug to capture ferrous wear particles, it plays a vital role in monitoring engine health and extending internal component life. It seals against the engine block via a dedicated gasket and must be installed with proper torque sequencing to prevent leaks.

Quantity:
Availability:





Inquire Add to Basket

Model:
A10E3-1009040A
Brand:
Yutong Bus Parts

Product Description

Attribute	Description
Part Number (OE)	A10E3-1009040A
Product Name	Engine Oil Pan Assembly
Common Names	Oil Sump, Lubricant Reservoir, Crankcase Bottom Cover
Application Engine	Yuchai YC4A Series (e.g., YC4A125-20, YC4A140-30), some YC6 variants
Material Type	High-Strength Cast Iron (standard); Aluminum Alloy (some lightweight versions)
Capacity (Typical)	8 – 12 liters (varies by model and sump depth)
Sealing Method	Gasket or Formed-in-Place Gasket (FIPG) with steel-reinforced seal
Drain Plug Type	M16×1.5 or M18×1.5 metric thread with integrated magnet
Mounting Style	Bolt-on flange with multiple mounting holes around perimeter
Design Standard	Meets GB/T 19055, ISO 7882, and Yuchai OE specifications

油底壳-1

Parameter	Specification
Oil Storage Capacity	~8–12 L (supports extended operation on slopes)
Bottom Design	Reinforced ribs for rigidity and anti-vibration performance
Magnetic Drain Plug	Captures metallic debris; enables early detection of internal wear
Sump Depth	Deep-dip configuration to maintain oil pickup during incline operations
Compatibility with Oil Pump Pickup Tube	Designed to work with standard strainer height — no interference
Thermal Conductivity	Cast iron: moderate heat retention Aluminum: faster heat dissipation
Vibration Resistance	Tested under high-frequency shaking (ISO 16750-3) — no cracking or fatigue
Weight (Approx.)	6 – 10 kg (cast iron heavier than aluminum)
Service Life	6–10 years or 600,000 km under normal operation
