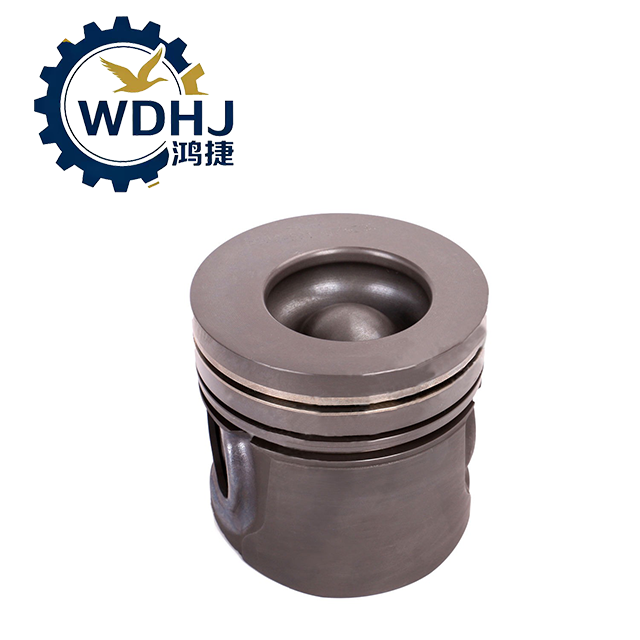

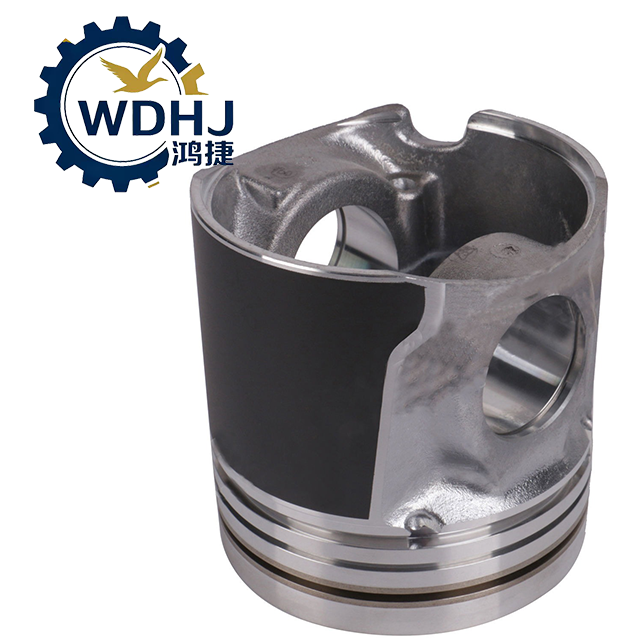

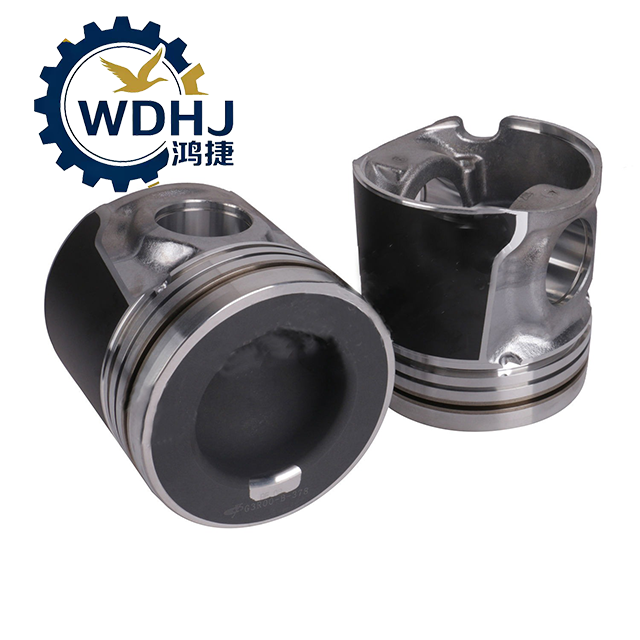

J3200-1004015
Yutong Bus Parts
| Attribute | Detail |
|---|---|
| Part Number | J3200-1004015 |
| Product Name | Diesel Engine Piston |
| Brand Compatibility | Yuchai (Guangxi Yuchai Machinery) |
| Engine Series | YC6J Series (e.g., YC6J125Z-T20, YC6J125Z-T21) |
| Material | High-Silicon Aluminum Alloy |
| Surface Treatment | - Crown: Anodized Oxidation Coating – Skirt: Graphite or Molybdenum Coated |
| Weight (Net) | Approximately 1.2 kg – 1.5 kg |
| Application Type | Heavy-Duty Commercial Vehicles, Agricultural Equipment, Power Generators |
| Design Purpose | High-Load, Long-Life Operation with Low Friction and Thermal Stability |
| Parameter | Specification |
|---|---|
| Combustion Chamber Type | Omega-shaped (ω), deep bowl design for direct fuel injection; promotes efficient air-fuel mixing and complete combustion |
| Ring Groove Configuration | Three-Ring System: – Top Ring: Trapezoidal groove (anti-carbon lock design) – Second Ring: Taper-faced compression ring groove – Bottom Ring: Oil Control Ring (three-piece or two-rail type) |
| Piston Pin Design | Full-floating type with press-fit into connecting rod bushing; compatible with heavy-duty piston pins |
| Pin Diameter | Standardized for YC6J platform (~28–30 mm typical; exact size depends on variant) |
| Thermal Management | Crown anodization improves heat resistance; skirt coating reduces friction and scuffing during cold start |
| Expansion Control | High-silicon aluminum alloy minimizes thermal expansion, maintaining optimal cylinder clearance |
| Recommended Cylinder Liner Finish | Plateau honed surface with proper roughness (Ra 0.8–1.2 μm) for ring seating |
