1601-00447
Yutong Bus Parts
| Attribute | Specification |
|---|---|
| Original Part Number | 1601-00447 / 160100447 |

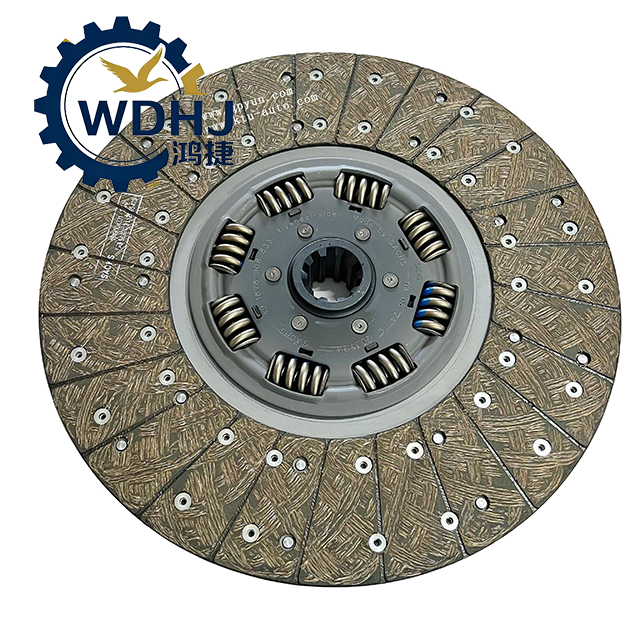

| Product Name | Clutch Disc / Driven Plate / Friction Plate |
| Brand Compatibility | Yutong (Primary), also compatible with King Long, Higer, Zhongtong |
| Vehicle Application | 12-Meter Heavy-Duty Luxury Coaches |
| Outer Diameter | 430 mm (Φ430) |
| Number of Splines | 10 teeth |
| Spline Dimensions | Outer Diameter: ~51 mm Root Diameter: ~44.5 mm (Standard 2" - 10N profile) |

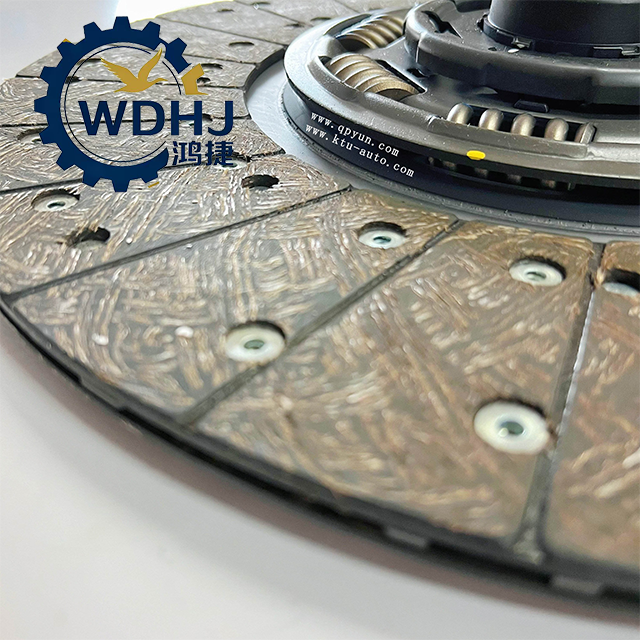

| Friction Material | Asbestos-Free Organic Composite with High Copper Content |

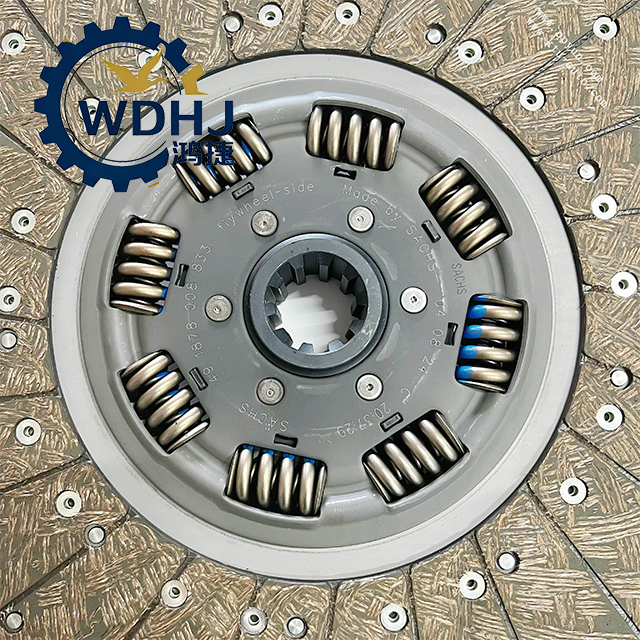

| Damping System | Multi-Stage Torsional Damper (typically 8–10 springs) |
| Weight (Approx.) | 9.3 kg – 9.8 kg |
| Design Standard | Meets or Exceeds OE Requirements for High-Torque Diesel Engines |
| Parameter | Detail |
|---|---|
| Torque Capacity | Supports peak engine torque exceeding 1,800 N·m |
| Thermal Resistance | High heat dissipation design prevents glazing and fade during prolonged use on steep grades or in stop-start traffic |
| Friction Stability | Maintains consistent coefficient of friction across wide temperature range (-20°C to +400°C surface temp) |
| Vibration Damping | Advanced multi-spring damper reduces engine torsional vibrations, minimizing gear rattle and improving shift comfort |
| Engagement Quality | Smooth take-off with minimal judder; optimized for driver comfort in premium coach platforms |
| Compatibility Engines | Designed for use with high-output engines including Weichai, Yuchai, Cummins ISZ/B Series, and MAN-based powertrains |
| Service Life Expectancy | Up to 250,000–300,000 km under proper driving and maintenance conditions |
| Compliance | RoHS compliant, ECE R75 certified, ISO/TS 16949 production control |
