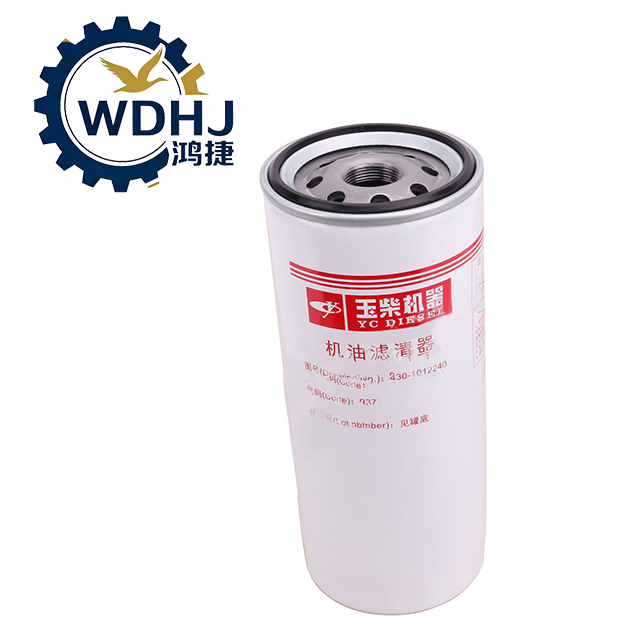

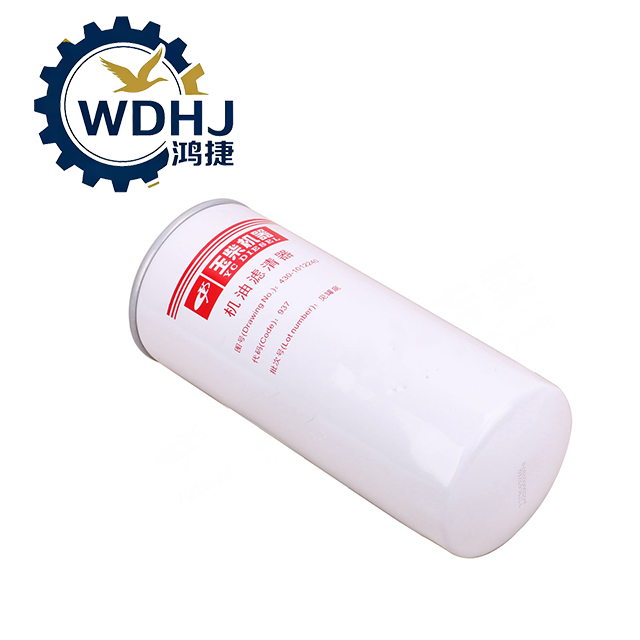

430-1012240
Yutong Bus Parts
| Attribute | Detail |
|---|---|
| Part Number | 430-1012240 / JX1023 / JX1023A |
| Product Type | Spin-On Full-Flow Engine Oil Filter |
| Brand Compatibility | Yuchai (Primary), also compatible with select Xichai (FAW) models |
| Application | Diesel Engines – Heavy-Duty Trucks, Buses, Construction Equipment, Generators |
| Filtration Media | High-Efficiency Synthetic Fiber or Cellulose Blend |
| Sealing Method | Integrated Rubber Gasket (Nitrile or EPDM) |
| Drain Back Valve | No (Standard full-flow design without anti-drainback valve) |
| Bypass Valve | Yes – Internal pressure relief valve activates at ~1.2–1.5 bar |
| Weight (Approx.) | 1.26 kg |
| Operating Temperature | -30°C to +110°C (-22°F to 230°F) |
| Parameter | Specification |
|---|---|
| Outer Diameter (OD) | 108 mm – 111 mm |
| Total Height | 259 mm – 263 mm |
| Thread Size | 1 1/8" - 16 UN or 1 1/8" - 16 UNF (Unified National Fine) |
| Gasket Outer Diameter | ~102 mm |
| Filtration Efficiency | ≥99.5% for particles ≥10 microns (per ISO 4548-12 multi-pass test) |
| Collapse Pressure Rating | ≥300 kPa (withstands high oil pressure without deformation) |
| Dirt Holding Capacity | High – Extended service intervals up to 15,000–20,000 km depending on duty cycle |
| Flow Resistance | Low differential pressure (<50 kPa at rated flow) |
| Recommended Torque | 25–30 N·m during installation (hand-tight plus ¾ turn recommended) |
