| Quantity: | |
|---|---|
612600050073
Shacman Sinotruk HOWO
| Parameter | Specification |
|---|---|

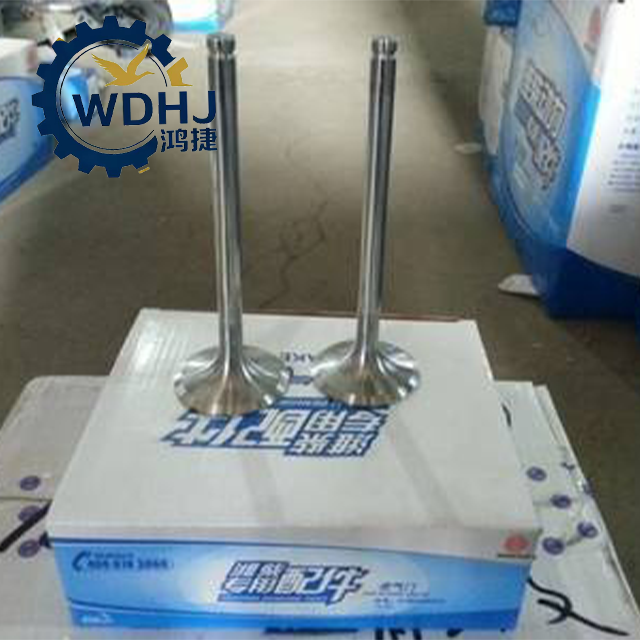

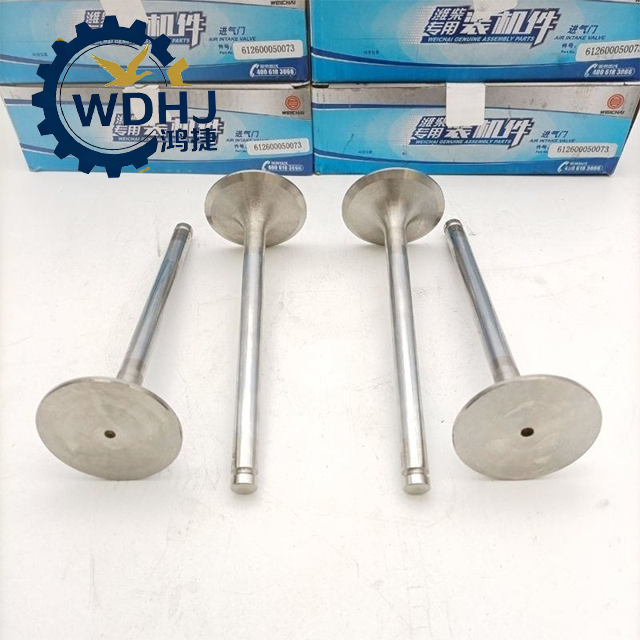

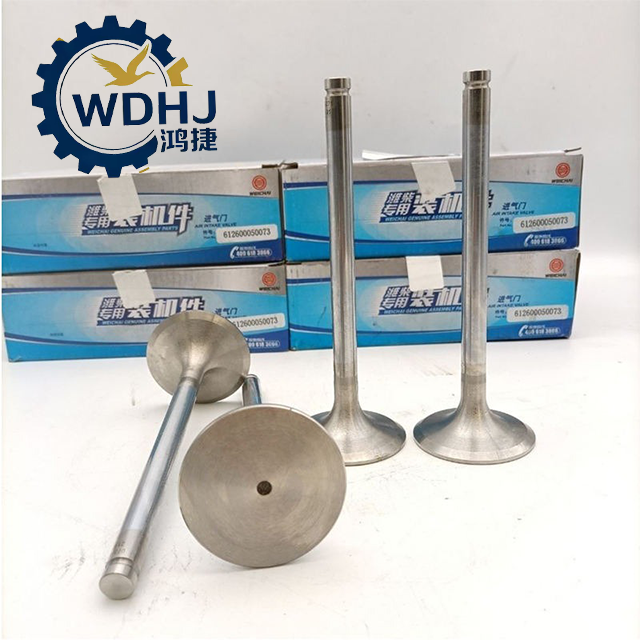

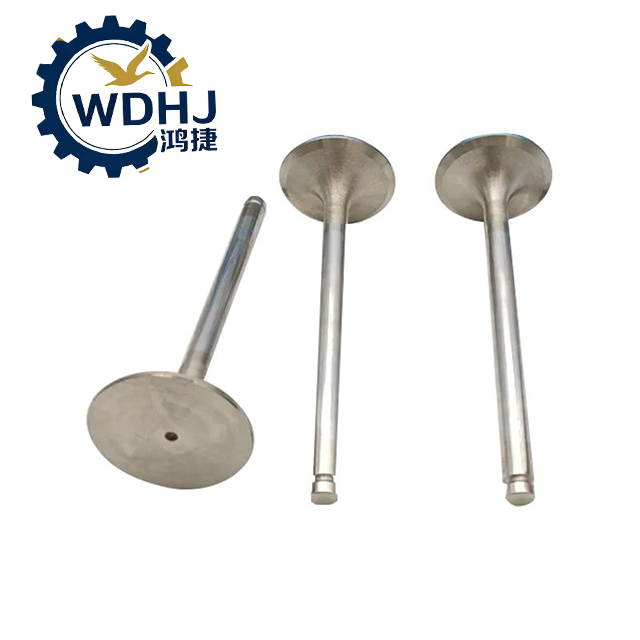

| Part Name | Intake Valve |
| OEM Number | 612600050073 |
| Head (Disc) Diameter | ≈ 55 mm (2.17 in) |
| Stem Diameter | ≈ 11 mm (0.433 (Note: Some variants use 12mm stem – verify before install) |
| Overall Length | ≈ 159.50 mm (6.28 in) |
| Material | High-strength heat-resistant alloy steel: • Typically Ni-Cr-Mo (Nickel-Chromium-Molybdenum) steel • Forged construction for superior grain flow and strength |
| Surface Treatment | • Gas Nitriding or Ion Nitriding (surface hardness up to 600–700 HV) • Optional chrome plating on stem (in some aftermarket versions) |
| Weight (per piece) | ~0.3 kg (0.66 lbs) |
| Operating Temperature Range | Up to 800°C at valve head under full load |
| Design Features | • Hollow stem possible in high-end models (not standard) • Precision-machined sealing taper (typically 45°) • Grooves for valve locks (keepers) near top of stem |
| Compatibility | Designed for multi-cylinder inline diesel engines with overhead valves (OHV) |
|
|
|
| Part Number (OEM NO.) | Part Name | Compatible Shacman Models | Specification |
|---|---|---|---|
| DZ9112905001 | Engine Intake Valve | Shacman Delong X3000, M3000, F3000 series | Engine Compatibility: Weichai WP10/WP12 series; Valve Head Diameter: 50mm; Stem Diameter: 12mm; Overall Length: 125mm; Material: 4Cr9Si2 heat-resistant steel; Hardness: HRC 38-42; OEM standard fitment |
| 612600050011 | Intake Valve for Heavy Duty Engine | Shacman Delong F3000, Aolong, Xuande series | Engine Compatibility: Weichai WP12 series; Valve Head Diameter: 52mm; Stem Diameter: 12mm; Overall Length: 128mm; Material: Heat-resistant alloy steel; Surface treatment: Nitriding; Wear-resistant design; Direct OEM replacement |
| DZ9112905002 | Engine Intake Valve Assembly | Shacman Delong X3000, X5000 series | Engine Compatibility: Weichai WP13 series; Valve Head Diameter: 55mm; Stem Diameter: 13mm; Overall Length: 132mm; Material: 4Cr10Si2Mo steel; High temperature resistance: 850°C; Compatible with 430HP-550HP engines |
| 61560050001 | Intake Valve | Shacman Delong M3000, F3000 series | Engine Compatibility: Weichai WP10H series; Valve Head Diameter: 48mm; Stem Diameter: 12mm; Overall Length: 122mm; Material: Forged heat-resistant steel; Surface hardness: HRC 40-45; For medium-duty transportation conditions |
| DZ9112905003 | Intake Valve for Gas Engine | Shacman Delong X3000, M3000 CNG/LNG series | Engine Compatibility: Weichai WP12NG/WP13NG gas engines; Valve Head Diameter: 53mm; Stem Diameter: 12mm; Overall Length: 126mm; Material: Nickel-based heat-resistant alloy; Corrosion and high temperature resistant; OEM standard size |
| 612600050012 | Engine Intake Valve | Shacman Delong F2000, F3000 series | Engine Compatibility: Weichai WD615/WD618 series; Valve Head Diameter: 49mm; Stem Diameter: 12mm; Overall Length: 124mm; Material: 4Cr9Si2 steel; Quenched and tempered; Compatible with 300HP-420HP engines |
| DZ9112905004 | Intake Valve with Valve Spring | Shacman Delong X3000, X6000 series | Engine Compatibility: Weichai WP13H series; Valve Head Diameter: 56mm; Stem Diameter: 13mm; Overall Length: 135mm; Material: High-strength heat-resistant steel; Includes matching valve spring and retainer; Complete assembly for direct replacement |
| 612600050013 | Intake Valve | Shacman Aolong, Xuande series | Engine Compatibility: Weichai WP10 series; Valve Head Diameter: 50mm; Stem Diameter: 12mm; Overall Length: 125mm; Material: Heat-resistant steel; Surface treatment: Chrome plating; Enhanced wear resistance; OEM standard fitment |
| DZ9112905005 | Heavy Duty Intake Valve | Shacman mining dump trucks, Delong F3000 mining series | Engine Compatibility: Weichai WP12/WP13 heavy-duty series; Valve Head Diameter: 58mm; Stem Diameter: 14mm; Overall Length: 138mm; Material: Ultra-high strength heat-resistant alloy; Impact and high temperature resistant; For harsh mining conditions |
| 61560050002 | Intake Valve for Euro VI Engine | Shacman Delong X5000, X6000 Euro VI series | Engine Compatibility: Weichai WP13H Euro VI engine; Valve Head Diameter: 54mm; Stem Diameter: 13mm; Overall Length: 130mm; Material: High-purity heat-resistant steel; Precision machining; Meets Euro VI emission standards; OEM standard size |
