| Quantity: | |
|---|---|
3716020-362
FAW
| Attribute | Description |
|---|---|

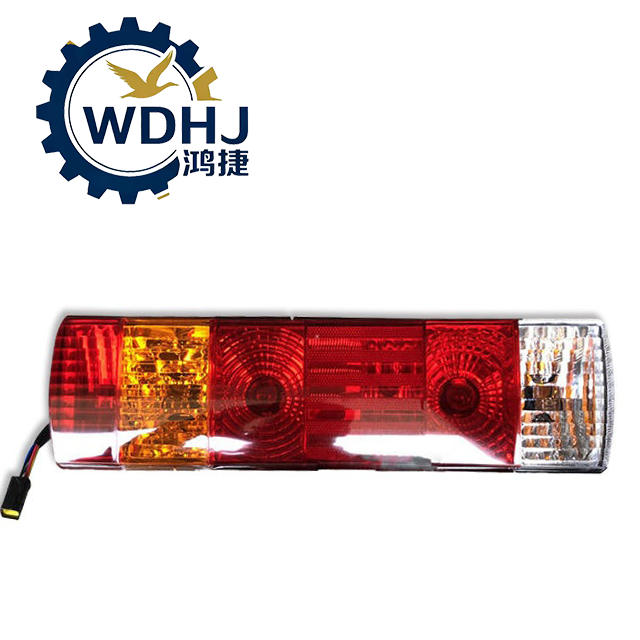

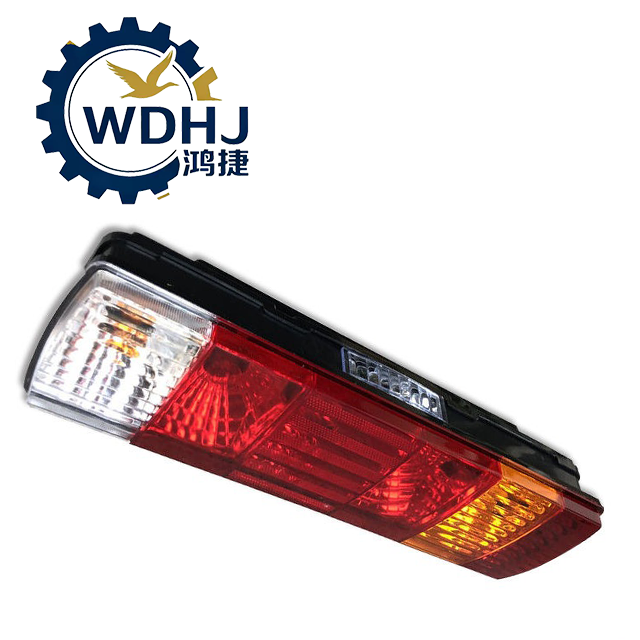

| Product Name | Right Rear Combination Lamp / Tail Light Assembly |
| OEM Part Number | 3716020-362 |
| Brand | FAW Jiefang (First Automotive Works) |
| Component Type | Truck Exterior Lighting / Rear Signal System |
| Installation Side | Right-hand side (passenger side) of the rear chassis |
| Functionality | Multi-functional: Stop, Tail, Turn, Reverse, Fog Light + Reflector |
| Application | Heavy-Duty Trucks – FAW J6P, J6L, J6G, J5P, JH6, TianV Series |
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (Standard for commercial trucks) |
| Light Source Options | |
| - Halogen Version | Typically labeled as 3716020-362-C00 |
| - LED Version | Marked as 3716020-362-B000 – energy-efficient, longer lifespan, faster response |
| Integrated Functions | |
| • Tail Lamp (Red) | Position/running light |
| • Brake Lamp (Bright Red) | High-intensity stop signal |
| • Turn Signal (Amber) | Directional indicator |
| • Reverse Lamp (White) | Backup illumination |
| • Rear Fog Lamp (Red) | Enhanced visibility in poor weather |
| • Reflective Panel | Passive safety reflector (red) for night visibility when lights off |
| Housing Material | Reinforced PP (Polypropylene) – impact-resistant and thermally stable |
| Lens Material | High-transparency PC (Polycarbonate) – UV protected, anti-yellowing, shatterproof |
| Sealing Standard | IP67 rated – dust-tight and protected against temporary immersion/high-pressure washdowns |
| Connector Type | Standard 7-pin plug (circular or flat type); compatible with FAW wiring harnesses |
| Mounting Method | Bolt-on flange with rubber gasket for waterproof seal |
