3959031
Shacman
| Parameter | Specification |
|---|---|

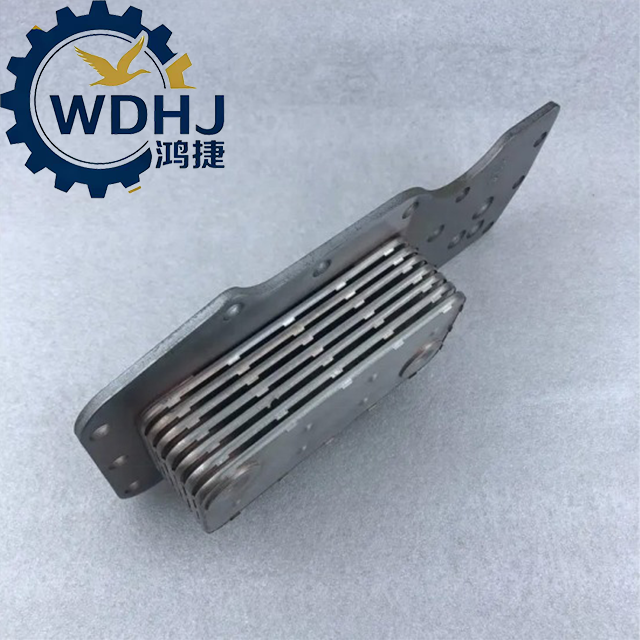

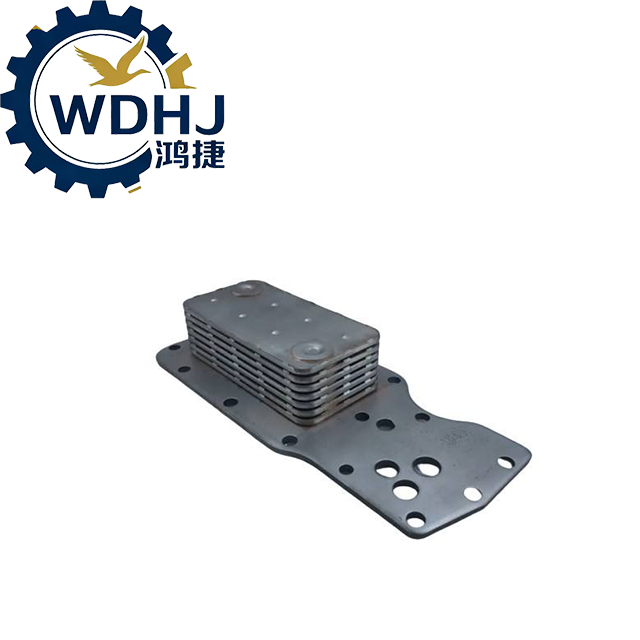

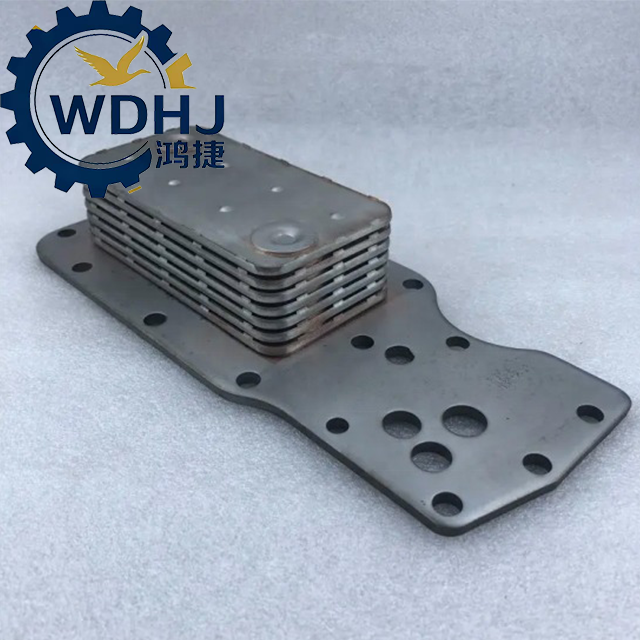

| Part Name | Engine Oil Cooler Core / Oil Radiator Core |
| OE Number | 3959031 |
| Cooler Type | Liquid-to-Liquid Plate-Fin (Stacked-Plate) Heat Exchanger |
| Heat Transfer Medium | Engine coolant cools engine oil via internal plates |
| Material | Aluminum or stainless steel plates with corrosion-resistant brazing |
| Design | Compact stacked-plate construction for high surface area and efficient heat transfer |
| Dimensions (Approx.) | 13 × 6 × 3.5 inches (33 x 15 x 9 cm) — outer housing size may vary by supplier |
| Weight | 2.6 – 3.0 kg (5.7 – 6.5 lbs) |
| Condition | Brand New (Sealed Packaging) |
| Quality Certifications | ISO 9001:2008 compliant |
| Warranty | Typically 12 months to 2 years, depending on supplier |
|
|
|
| Part Number | Part Name | Compatible Model | Product Attribute |
| 61500010334 | Weichai WP10 Engine Oil Cooler Core | Shacman F2000 / F3000 / M3000 (Weichai WD615 / WP10) | Multi-layer plate-fin stainless steel structure, high thermal conductivity, corrosion-resistant, leak-tested under high pressure |
| 61800010113 / 612630150234 | Weichai WP12 Engine Oil Cooler Core | Shacman F3000 / M3000 / X3000 / X5000 (Weichai WP12 Euro II-V) | 30-plate brazed aluminum / stainless steel design, high-flow oil channel, thermal shock resistant |
| 1000962384 / 1003285150 | Weichai WP13 Heavy-Duty Oil Cooler Core | Shacman X3000 / X5000 / X6000 Heavy Tractor & Dump Trucks (Weichai WP13) | Reinforced high-capacity cooling core, optimized heat dissipation for high-horsepower engines, OEM heavy-duty spec |
| 4975879 / 3161781 | Cummins ISM11 / QSM11 Oil Cooler Core | Shacman X3000 / X5000 Heavy Duty Trucks (Cummins ISM11 / M11) | Genuine Cummins specification plate-type heat exchanger, high pressure resistance, anti-sludge design |
| 612600013851 | Weichai WP6 / WP7 Engine Oil Cooler Core | Shacman L3000 / M3000 Cargo & Special Trucks (Weichai WP6 / WP7) | Compact brazed aluminum alloy construction, fast oil temperature regulation, lightweight design |
| 612630010050 | Oil Cooler Core & Housing Assembly | Shacman F3000 / X3000 (Weichai WP10 / WP12 Complete Repair Kit) | Pre-assembled unit with cast aluminum cover, high-temp Viton O-rings, and pressure relief valve |
