612600130265
Shacman Sinotruk HOWO
| Parameter | Specification |
|---|---|

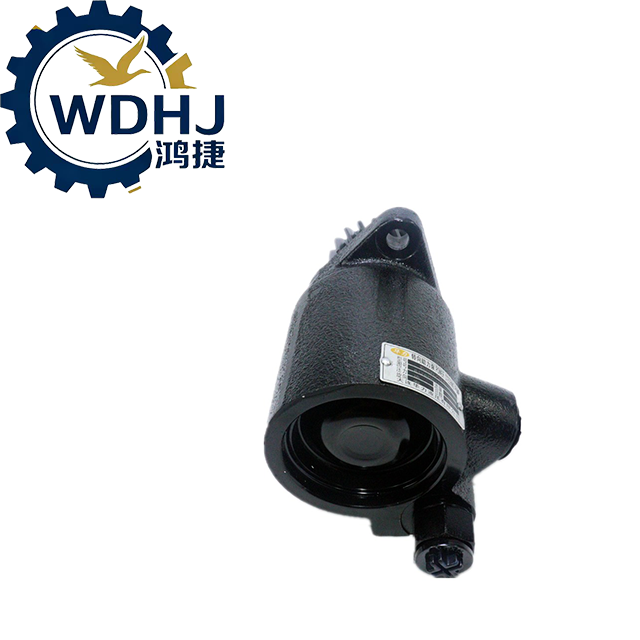

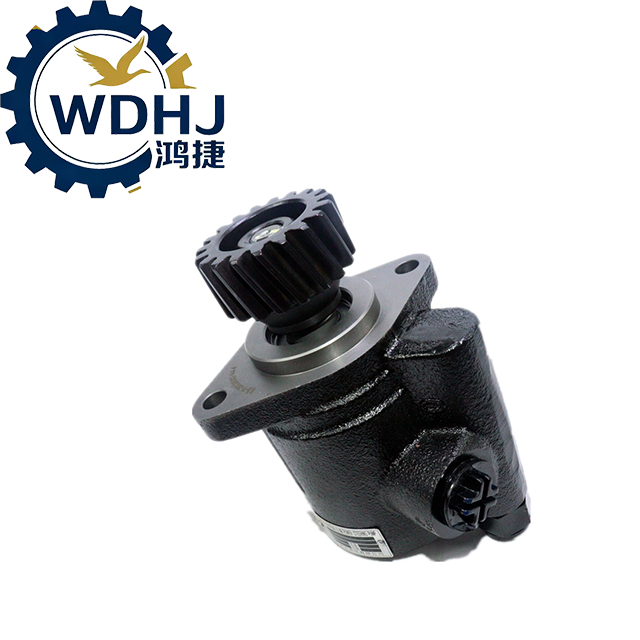

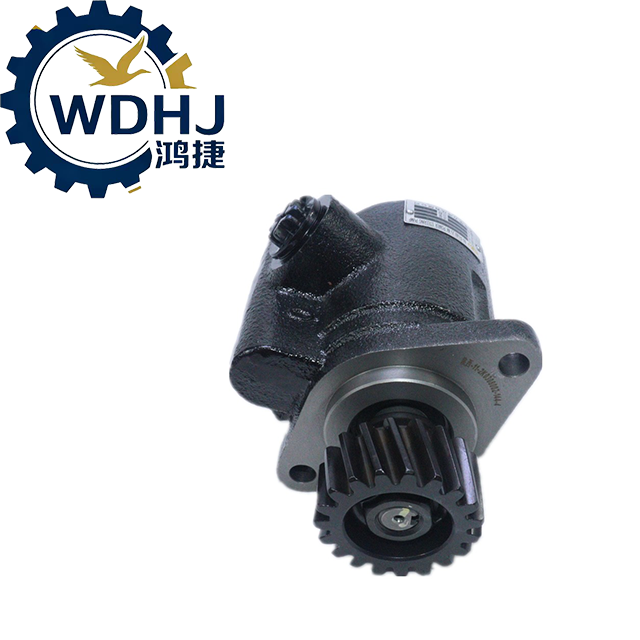

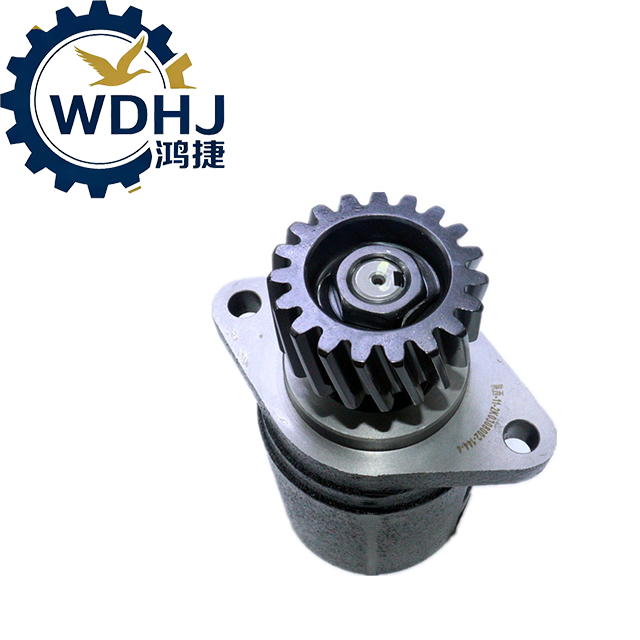

| Part Name | Power Steering Pump / Steering Gear Pump |
| OE Number | 612600130265 |
| Brand(s) | Weichai (Original), Quanxing (Quan Xing), or other OEM suppliers |
| Pump Type | External Gear Pump (Positive Displacement) |
| Drive Mechanism | Belt-driven via pulley connected to engine crankshaft |
| Function | Generates hydraulic pressure to assist steering system operation |
| Housing Material | Cast iron or aluminum alloy housing (heat-resistant and durable) |
| Internal Components | Precision-machined steel gears, shafts, and bushings |
| Seals & Gaskets | Nitrile rubber (NBR) or fluorocarbon (FKM/Viton) seals for oil resistance |
| Inlet Port Size | Approx. 26 mm diameter (1.02 in) — suction side |
| Outlet Port Size | Approx. 18 mm diameter (0.71 in) — high-pressure discharge |
| Working Pressure Range | 850 – 1,450 PSI (60 – 100 bar) depending on vehicle system design |
| Flow Rate | Varies by model; typically 12–18 L/min at rated RPM |
| Mounting Style | Bracket-mounted with adjustable tension for belt drive |
| Pulley Type | Single-groove V-belt or multi-ribbed serpentine belt (model-dependent) |
| Weight | Approx. 4.0 – 6.0 kg (8.8 – 13.2 lbs) |
| Condition | Brand New (OEM or high-quality remanufactured) |
|
|
|
