3075524
Shacman Sinotruk HOWO FAW Dongfeng Foton Auman
| Parameter | Detail |
|---|---|

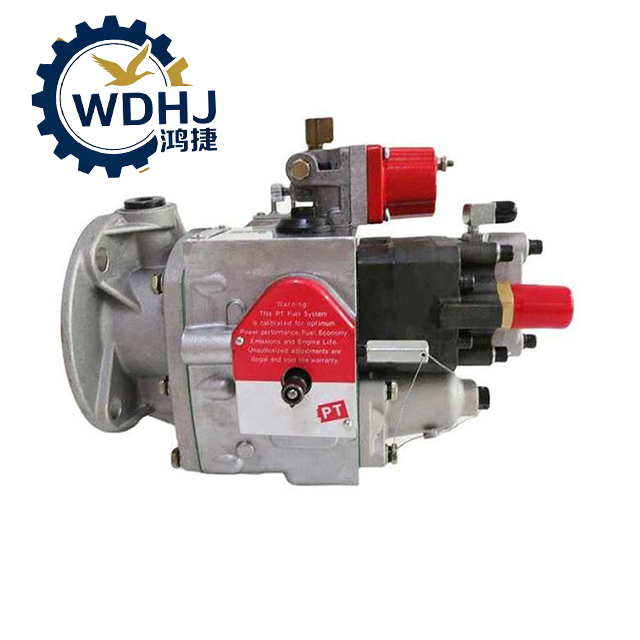

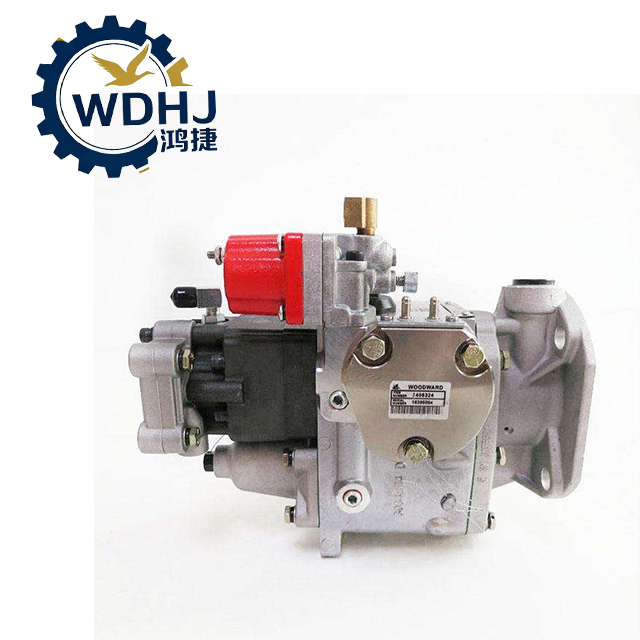

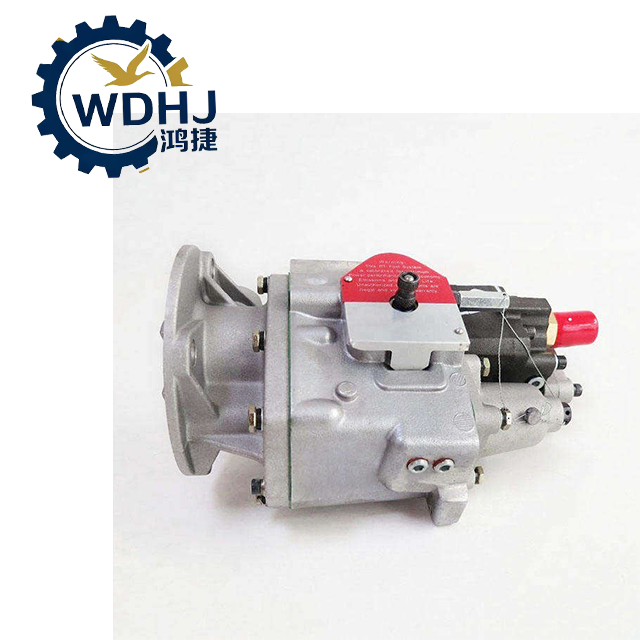

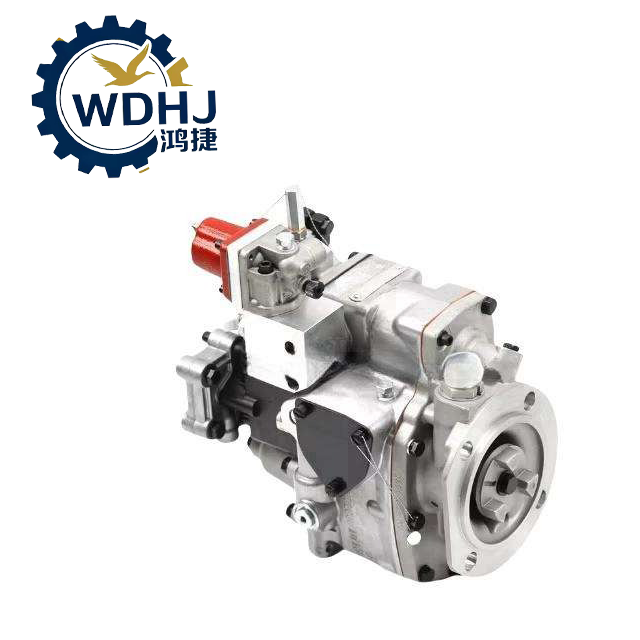

| Part Name | PT Fuel Injection Pump Assembly / Fuel Pump Cover (context-dependent) |
| Primary OEM Number | 3075524 |
| Series | PT (Pressure-Time) Fuel System |
| Type | Mechanical Diesel Fuel Injection Pump (Governor-equipped) |
| Function | Delivers metered fuel under pressure to injectors based on engine speed and load via "pressure-time" principle |
| Drive Mechanism | Gear-driven by engine camshaft or timing gear train |
| Working Principle | Uses fuel pressure from gear pump + precise time-based metering in idle/load chambers |
| Housing Material | Cast iron body with precision-machined internal steel components |
| Seals & Gaskets | Nitrile rubber (NBR) or Viton O-rings, cork/rubber gaskets (replaced during installation) |
| Weight | Approx. 7.0 – 7.4 kg (15.4 – 16.3 lbs) |
| Condition | Brand New or Factory-Remanufactured (Overhauled) |
| Application Type | Heavy-duty industrial, marine, and commercial diesel engines |
 |
|
|
| Part Number | Product Name | Applicable Vehicle Models | Specification & Model |
| 3417677 | Fuel Injection Pump Assembly (High Pressure Fuel Pump) | Shacman Delong F3000, X3000, Aolong (Cummins ISM11/QSM11 Engine) | OEM Genuine Cummins Part, 385HP, Electronic Control, For ISM11E385 Engine, Weight 7.4KG, Dimensions 31*27*22cm |
| 3417674 | Fuel Injection Pump Assembly | Shacman Delong X3000, F3000 (Cummins QSM11 Engine) | OEM Cummins Part, 308-440HP, Mechanical Control, Compatible with QSM11 Series Diesel Engine |
| C5686231 | Fuel Pump Assembly | Shacman Delong X5000, X5000S, X6000 (Cummins M15 Engine) | OEM Cummins Genuine Part, 530-680HP, High Pressure Common Rail, For M15NS6B600 Engine, Weight 8KG, Dimensions 24*18*21cm |
| C5462079 | Fuel Injection Pump Assembly (High Pressure Fuel Pump) | Shacman Delong New M3000, X3000 (Cummins ISG Engine) | OEM Cummins ISG Series Part, Electronic Control, High Pressure Common Rail, Original Factory Replacement |
| 612600081033 | Fuel Injection Pump Assembly | Shacman Delong F2000, F3000, Aolong (Weichai WD615/WP10 Engine) | OEM Weichai Part, For WD615/WP10 Series Engine, Mechanical Injection Pump, Heavy Duty Design |
| 612600081227 | Fuel Injection Pump Assembly | Shacman Delong F2000, F3000, M3000 (Weichai WD615 Engine) | OEM Weichai Part, Compatible with WD615 Diesel Engine, 6 Cylinder, High Pressure Injection, Direct Fit Replacement |
| 612601080457 | Fuel Injection Pump Assembly | Shacman Delong New M3000, X3000 (Weichai WP12 Engine) | OEM Weichai Part, For WP12.430E201 Engine, 430HP, Mechanical Injection Pump, Original Factory Specification |
| 0445020071 | High Pressure Fuel Pump Assembly | Shacman Delong F3000, X3000 (Weichai WP6/WD615 Engine) | Bosch OEM Common Rail Pump, 24V, Flow Rate 80L/h, Pressure 160MPa, Compatible with WP6/WD615 Series Engine |
| 612600080353 | Fuel Transfer Pump Assembly | Shacman Delong F2000, F3000, M3000 (Weichai WD615/WP10 Engine) | OEM Weichai Part, For WD615/WP10 Engine, Low Pressure Fuel Transfer Pump, 24V, Direct Fit |
| 1001671519 | Fuel Injection Pump Assembly | Shacman Delong X3000, New M3000 (Weichai WP12 Engine) | OEM Weichai Part, For WP12.430E201 Engine, High Pressure Injection Pump, Genuine Factory Replacement |
